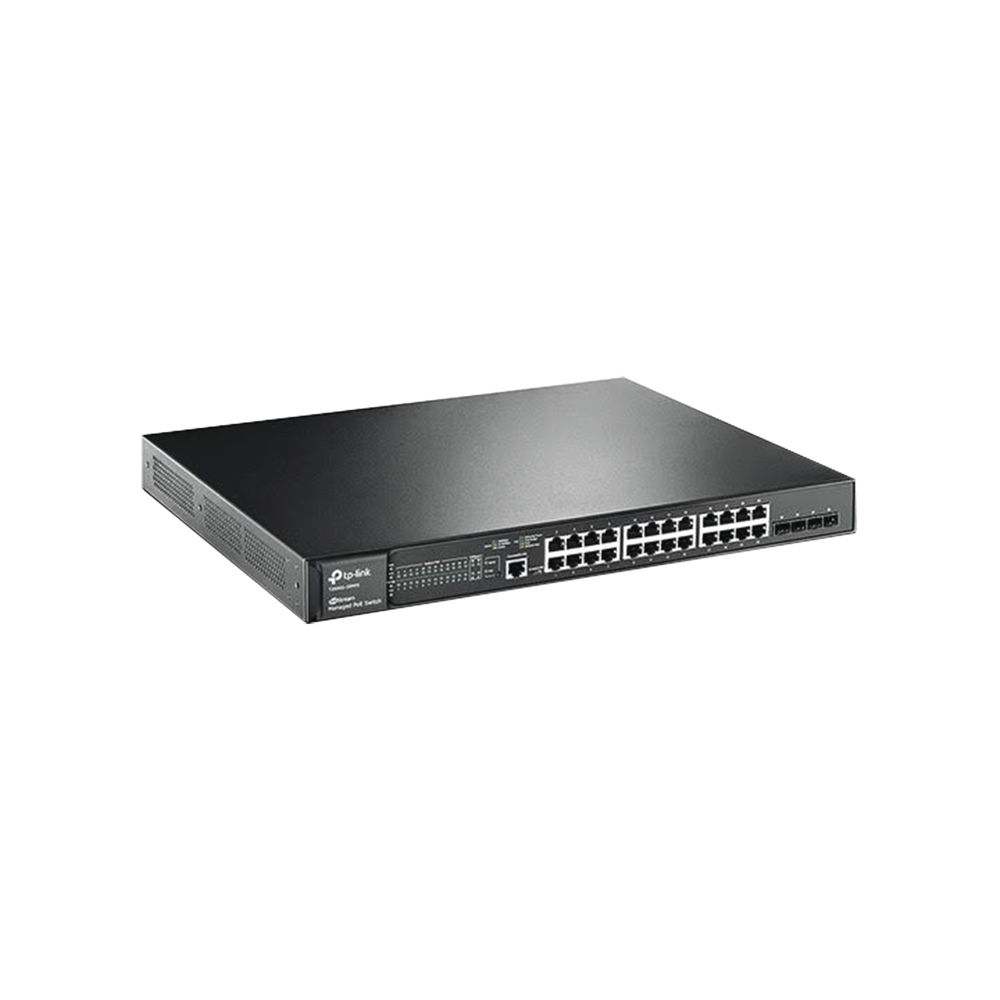

Switch JetStream PoE+ administrable Capa 2, 24 puertos 10/100/1000 Mbps + 4 puertos SFP 384 W

The T2600G-28MPS provides 24 Ethernet ports (10/100/1000 Mbps) compliant with 802.3at/af PoE. Users can supply up to 384W total power to connected devices and flexibility deploy equipment such as wireless access points or IP cameras without worrying about power outlets. PoE support together with high-performance static routing, enterprise-level QoS, advanced security features and a choice of Layer 2 management options make T2600G-28MPS a great choice for small and medium-sized businesses.

Layer 2 and Layer 2+ features include OAM, L2PT and sFlow to meet the needs of ISP customers, while IP-MAC-Port-VID Binding and Access Control List (ACL) functions protect against broadcast storms, ARP attacks, Denial-of-Service (DoS) attacks and other threats. Quality of Service (QoS) provides enhanced traffic management capabilities to ensure fast transfers for your important data, even when the network is busy. Moreover, easy-to-use web management interfaces, along with CLI, SNMP, RMON and Dual Image mean faster setup and configuration with less downtime. T2600G-28MPS is the perfect network solution for budget-conscious workgroups and departments who want to upgrade to boost their network to gigabit speeds.

Highlights

24 802.3at/af-compliant POE+ ports supplying up to 384W total power

Static Routing L2+ feature helps route internal traffic for more efficient use of network resources

IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X Authentication and Radius provide robust security strategies

L2/L3/L4 QoS and IGMP Snooping optimize voice and video applications

IPv6 support with dual IPv4/IPv6 stack, MLD Snooping and IPv6 Neighbor Discovery

Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring powerful management capabilities

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i

• IEEE 802.3u
• IEEE 802.3ab
• IEEE802.3z
• IEEE 802.3ad
• IEEE 802.3x
• IEEE 802.1d
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1q
• IEEE 802.1x
• IEEE 802.1p

Interface

• 24 × 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4 × 1000Mbps SFP Slots
• 1 × Console Port
• 1 × Micro-USB Console Port

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF

Fan Quantity: 2

Physical Security Lock:  Yes

Power Supply: 100~240VAC, 50/60Hz

Power Consumption: Maximum (PoE on): 468.7W

PoE+ Ports(RJ45)

• Standard: 802.3at/af (30W)
• Number of PoE+ Ports: 24
• Total PoE budget: 384W

Dimensions ( W x D x H )

• 17.3 × 13 × 1.7 in.
• (440 × 330 × 44 mm)

Mounting: 19" 1U rack mountable

Max Power Consumption

• 29.0W no PD load)
• 468.7W (with 384W PD load)

Max Heat Dissipation

• 99.0 BTU/h (no PD load)
• 1,599.2 BTU/h (with 384W PD load)

PERFORMANCE

Switching Capacity: 56Gbps

Packet Forwarding Rate: 41.7Mpps

MAC Address Table: 16k

Jumbo Frame: 9KB
