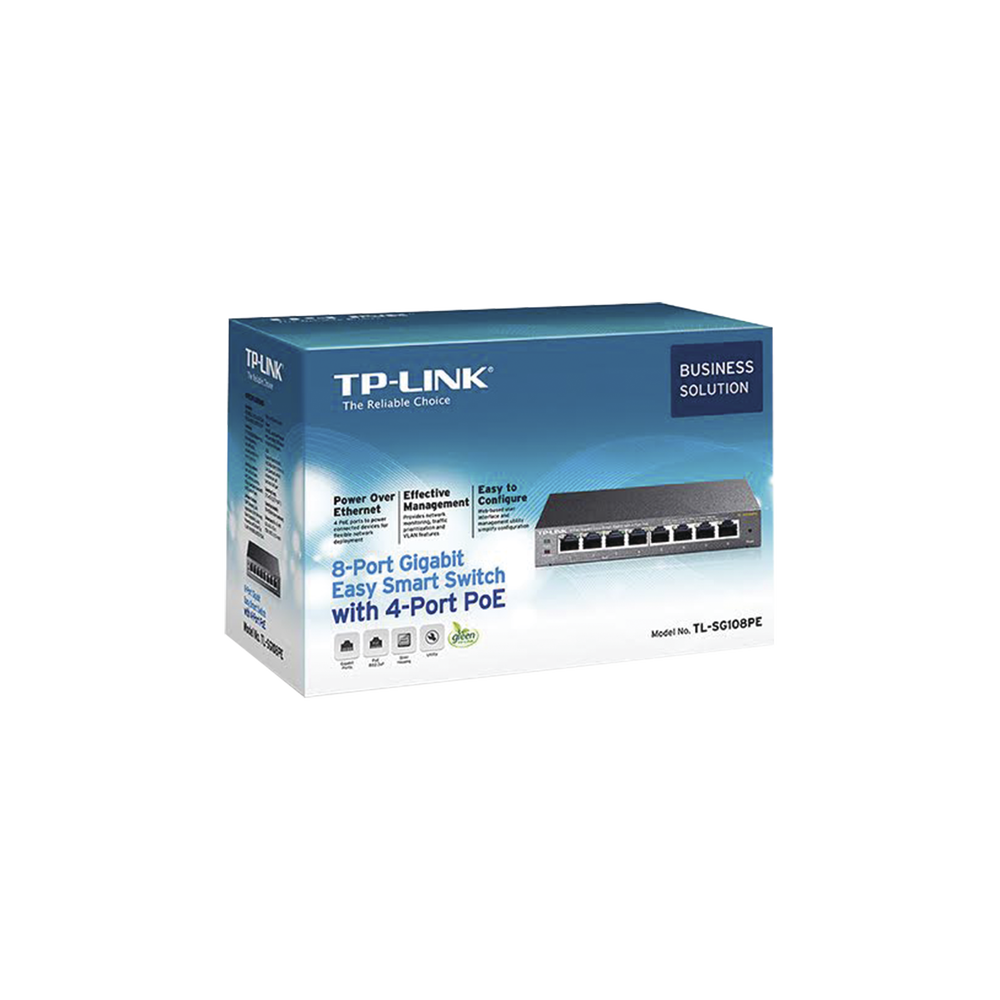

Easy Smart Switch PoE JetStream , 8 puertos 10/100/1000 Mbps 55 W

HIGHLIGHTS

• (8) 10/100/1000Mbps RJ45 ports
• With 4 PoE ports, data and power can be transferred on one single cable
• Supports PoE power up to 55W for all PoE ports
• Provides network monitoring, traffic prioritization and VLAN features
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration

HARDWARE FEATURES

Standards and Protocols

• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
• IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

• 8 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity: Fanless

Power Supply:

• External Power Adapter 100VAC ~ 240VAC
• (Output: 48VDC / 1.25A)

PoE+ Ports(RJ45)

PoE Ports (RJ45):

• Standard: 802.3 af compliant
• PoE Ports: Port 1- Port 4
• PoE Power Budget: 55W

Max Power Consumption:

• 5.2W with no PoE device connected
• 65.2W with 55W PoE devices connected

Max Heat Dissipation:

• 17.6 BTU/h (with no PD connected)
• 222.4 BTU/h (with 55W PD connected)
