Switch Sistema Operativo Dual 24 Puertos Gigabit Ethernet y 2 Puertos SFP+
Descripción del producto

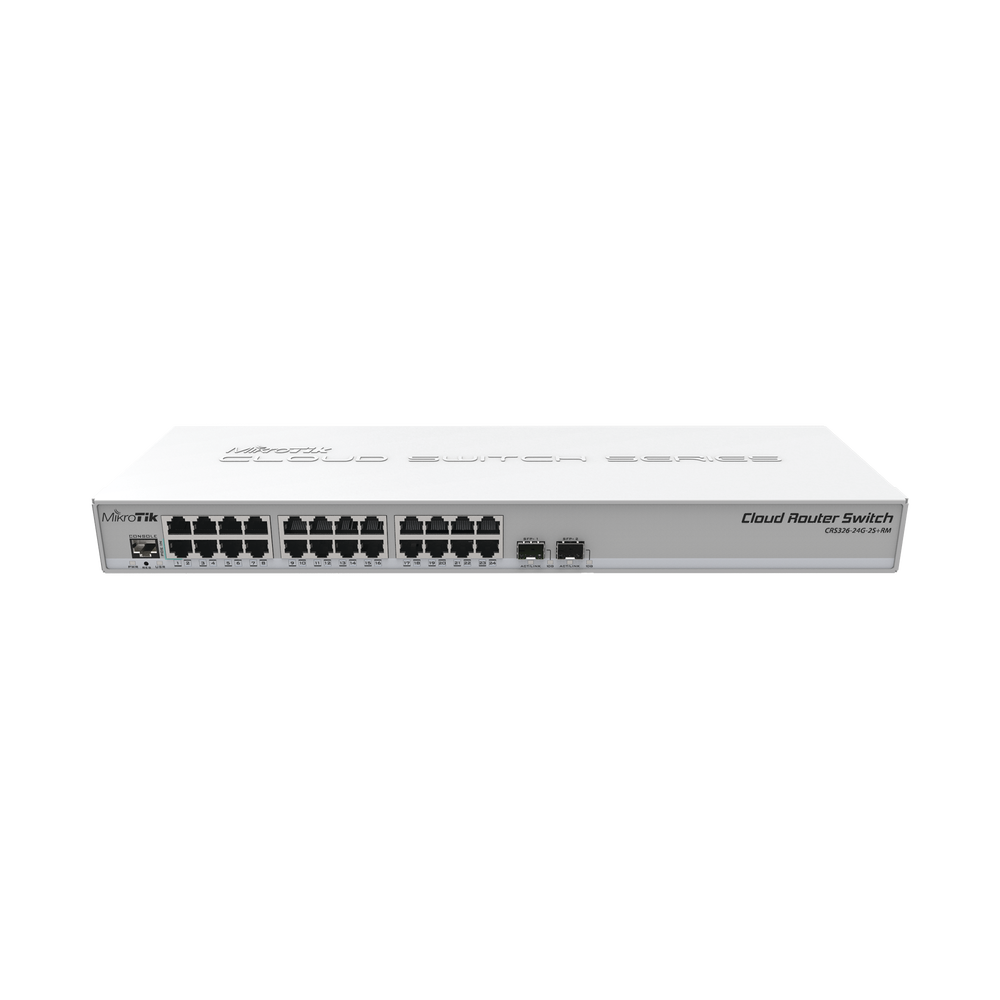

CRS326-24G-2S+RM
SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!
It has an additional CPU unit that allows customers to run a full RouterOS operating system on this device. CPU unit offers limited processing power but is sufficient to run few very needed RouterOS features that common smart switches simply don’t have.
It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch-only OS with more switch-specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS, or from the RouterBOOT loader settings.
It gives you all the basic functionality for a managed switch, plus more: allows you to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
Specifications
| Details | |
|---|---|
| Product code | CRS326-24G-2S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX3236A1-BTD4C000 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 17.32 x 5.66 x 1.73" (440 x 144 x 44 mm) |
| License level | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40 ~ 140°F (-40 ~ 60°C) |
Powering
| Details | |
|---|---|
| Max Power consumption | 24W |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 24 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
Switching results
| CRS326-24G-2S+RM | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 65,476.2 | 33,523.8 | 10,338.3 | 42,345.9 | 3,576.1 | 43,427.8 |
| Switching | Non blocking Layer 2 capacity | 65,476.2 | 67,047.6 | 10,338.3 | 84,691.7 | 3,576.1 | 86,855.7 |
| Switching | Non blocking Layer 1 throughput | 65,476.2 | 44,000.0 | 10,338.3 | 44,000.0 | 3,576.1 | 44,000.0 |
| Switching | Non blocking Layer 1 capacity | 65,476.2 | 88,000.0 | 10,338.3 | 88,000.0 | 3,576.1 | 88,000.0 |
Ethernet test results
| CRS326-24G-2S+RM | 98DX3236A1 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.3 | 987.3 | 235 | 962.6 | 296 | 151.6 |
| Bridging | 25 bridge filter rules | 81.3 | 987.3 | 90.7 | 371.5 | 90.9 | 46.5 |
| Routing | none (fast path) | 81.3 | 987.3 | 235 | 962.6 | 261.9 | 134.1 |
| Routing | 25 simple queues | 81.3 | 987.3 | 112.6 | 461.2 | 111.5 | 57.1 |
| Routing | 25 ip filter rules | 59.8 | 726.2 | 61.4 | 251.5 | 59.5 | 30.5 |
Included parts
