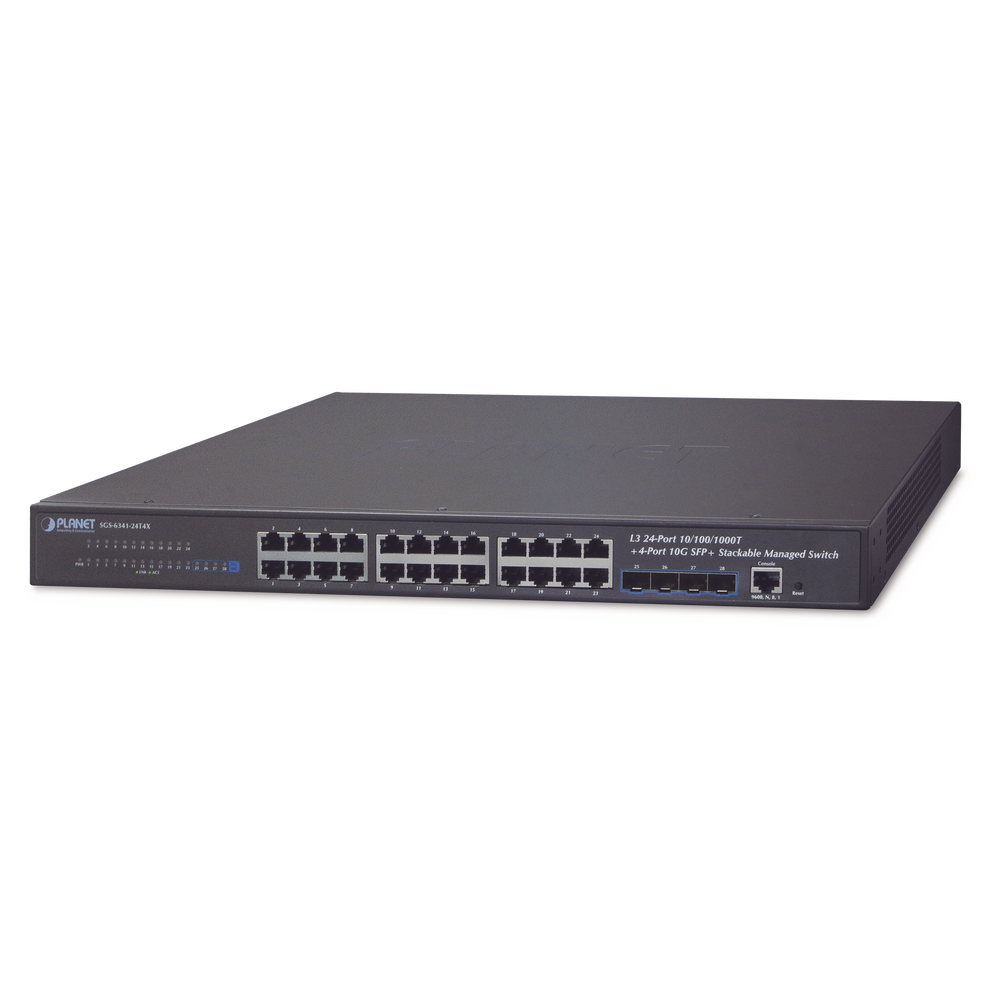

Switch Administrable Capa 3, 24-Puertos 10/100/1000T + 4-Puertos 10G SFP+, Apilable

Physical Ports

• 24-Port 10/100/1000BASE-T Gigabit Ethernet RJ45
• 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
• RJ45 to DB9 console interface for switch basic management and setup

IP Stacking

• Connects with stack member via both Gigabit TP and SFP interfaces
• Single IP address management, supporting up to 24 units stacked together

IP Routing Features

• Supports maximum 128 static routes and route summarization
• Supports dynamic routing protocol: RIP and OSPF

Layer 2 Features

• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
• Supports auto-negotiation and half-duplex/full-duplex modes for all 10BASE-T, 100BASE-TX and 1000BASE-T ports
• Auto-MDI/MDI-X detection on each RJ45 port
• Prevents packet loss flow control
• High performance Store-and-Forward architecture, broadcast storm control, port loopback detect
• 16K MAC address table, automatic source address learning and aging
• Supports VLAN
• Supports Link Aggregation
• Supports Spanning Tree Protocol
• Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
• Provides port mirror (many-to-1)

Quality of Service

• 8 priority queues on all switch ports
• Support for strict priority and WRR (Weighted Round Robin) CoS policies
• Traffic classification
• Strict priority and WRR CoS policies

Security

• IEEE 802.1x port-based network access authentication
• MAC-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
• TACACS+ login users access authentication
