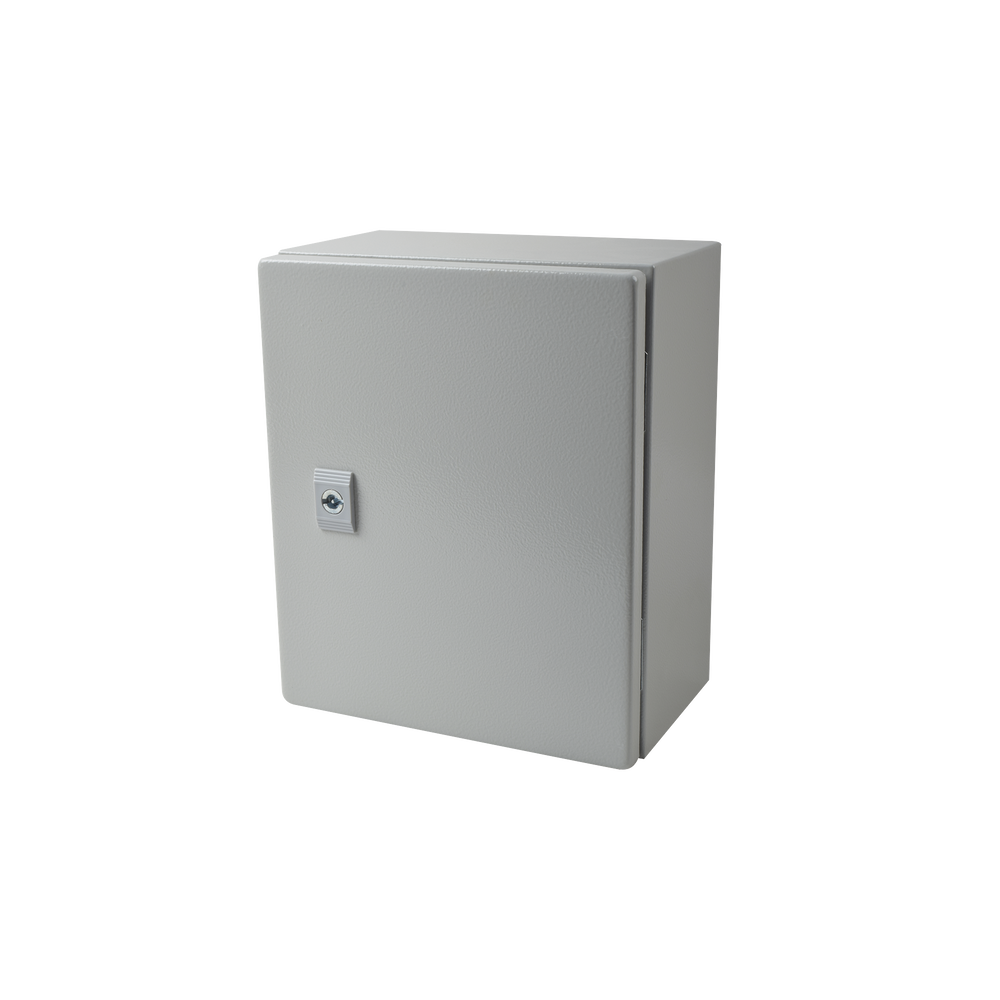

Gabinete de Acero IP66 Uso en Intemperie (250 x 300 x 150 mm) con Placa Trasera Interior y Compuerta Inferior Atornillable (Incluye Chapa y Llave).

Steel cabinet for use in outdoor applications such as poles, telecommunication towers or wall where there is no protection against rain or excessive dust.


Physical Features:

Material: steel.

Paint: powder polyester base.

Protection level: IP66

Resistance against impacts: IK10

Backplate Material: galvanized steel.

Dimensions: 250 x 300 x 150 mm (width x height x depth).


Includes:

Steel body and door.

Backplate for equipment assembly.

Security lock with key.

Bottom cover for the installation of gland type connectors.

Packing

Application:

Installation of POE's in a tower, post or wall.

Battery storage.

Protection of peak protectors, fuses or electrical boards.

It is recommended to use gland type connectors for wire output (See models).

Technical note: Fan implementation is possible, however holes must be made manually in the cabinet. It is recommended to have a fresh air inlet at the bottom and a hot air outlet at the top, for this it is recommended the implementation of 2 model PST-BC-V60 (Not included) and it is necessary that at least one of them has a 60 x 60 mm fan, th recommended model is: FAN-602512 (Not included).

Installing this items will reduce the protection level (IP) of the cabinet but will improve heat dissipation.
