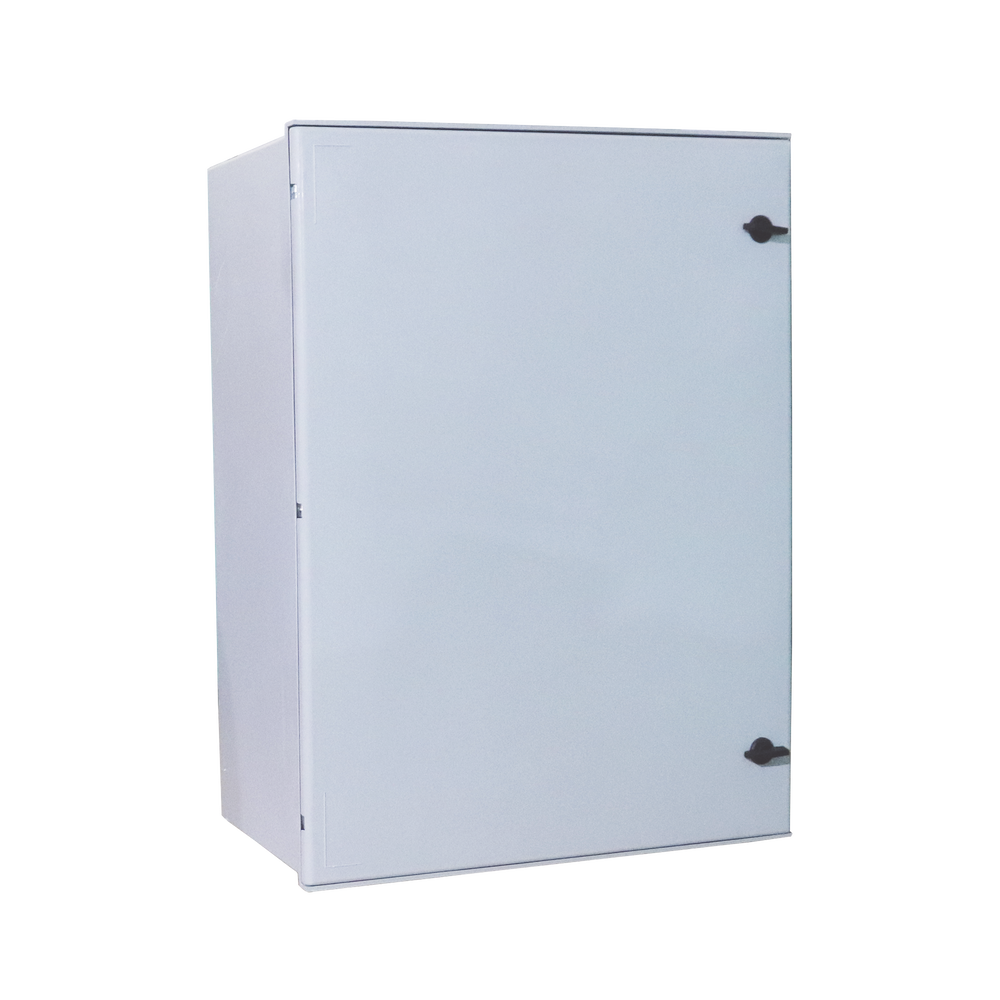

Gabinete de Poliéster IP65 Uso en Intemperie (400 x 500 x 200 mm) con Placa Trasera Interior (Incluye Chapa y Llave).

Polyester cabinet for use in outdoor applications such as poles, telecommunication towers or wall where there is no protection against rain or excessive dust.

Physical Features:
Material: Polyester.
Protection level: IP65.
Back plate material: Polyester plate.
Dimensions: 400 x 500 x 200 mm (width x height x depth).

Standards: IP65 and RoHS.

Include:

• Polyester body and door.
• Backplate for equipment assembly.
• Security lock with key.
• Wall bracket (4 pcs).
• Packing.

Application:
Installation of PoE's in a tower, post or wall.
Package storage.
Protection of surge protectors, fuses or electrical boards.

It is recommended to use gland type connectors for wire output (See models).

Technical note: Fan implementation is possible, however holes must be made manually in the cabinet. It is recommended to have a fresh air inlet at the bottom and a hot air outlet at the top, for this it is recommended the implementation of 2 model PST-BC-V60 (Not included) and it is necessary that at least one of them has a 60 x 60 mm fan, th recommended model is: FAN-602512 (Not included).

Installing this items will reduce the protection level (IP) of the cabinet but will improve heat dissipation.
