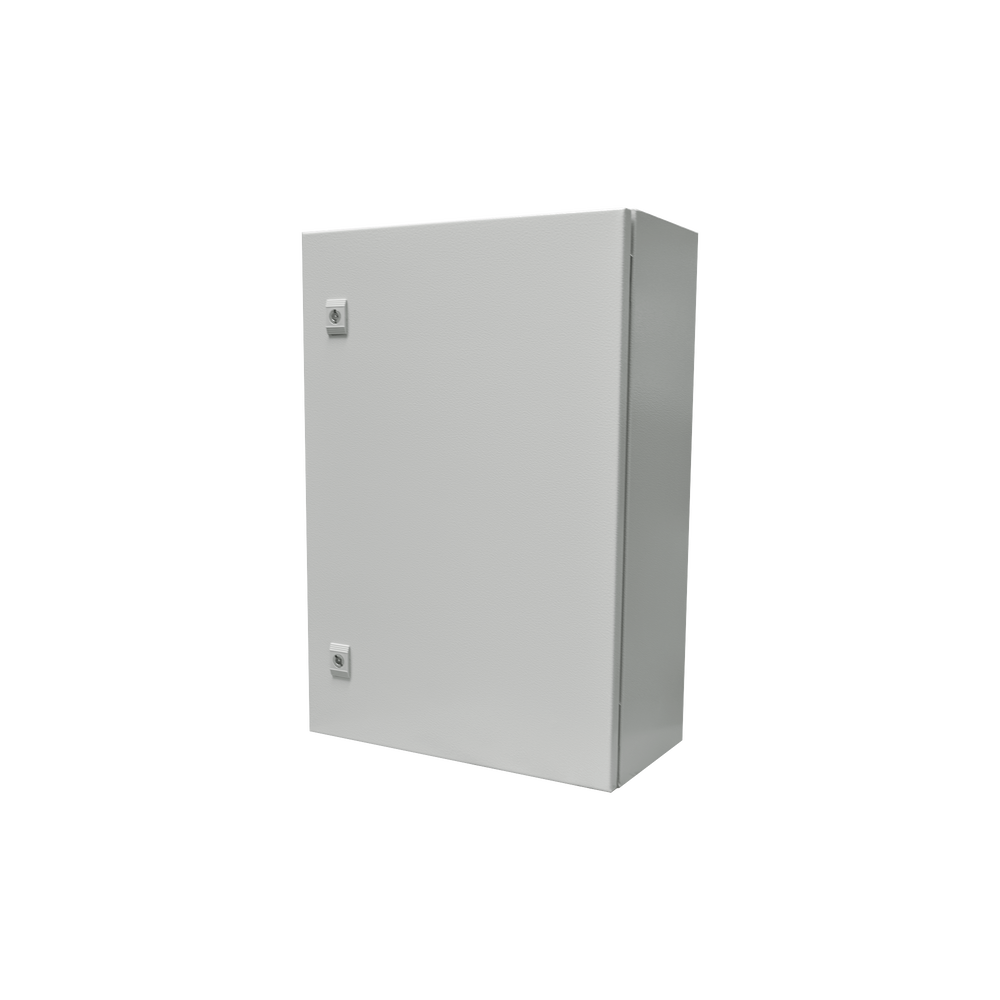

Gabinete de Acero IP66 Uso en Intemperie (500 x 700 x 250 mm) con Placa Trasera Interior y Compuerta Inferior Atornillable (Incluye Chapa y Llave).

Steel cabinet for outdoor use such as poles, telecommunication towers or wall which don't have protection against rain or excessive dust.

Physical characteristics:

• Material: Steel
• Painting: Polyester base powder.
• Protection level: IP66
• Resistance against impacts: IK10
• Back plate material: Galvanized steel.
• Dimensions: 19.6 x 27.5 x 9.8" (500 x 700 x 250 mm) (width x height x depth).

Includes:

• Steel body and door.
• Back plate for equipment assembly.
• Security lock with key.
• Bottom cover for installation of gland type connectors.
• Packing

Packaging​:

• Installation of POE's in tower, pole or wall.
• Battery storage (it is recommended to add breathing).
• Protection of peak protecotes, fuses or electrical tablilas.

It is recommended to use gland type connectors for wiring output (View models).

Technical note: Fan implementation is possible, however holes must be made manually in the cabinet. It is recommended to have a fresh air inlet at the bottom and a hot air outlet at the top, for this it is recommended the implementation of 2 model PST-BC-V60 (Not included) and it is necessary that at least one of them has a 60 x 60 mm fan, th recommended model is: FAN-602512 (Not included).

Installing this items will reduce the protection level (IP) of the cabinet but will improve heat dissipation.
