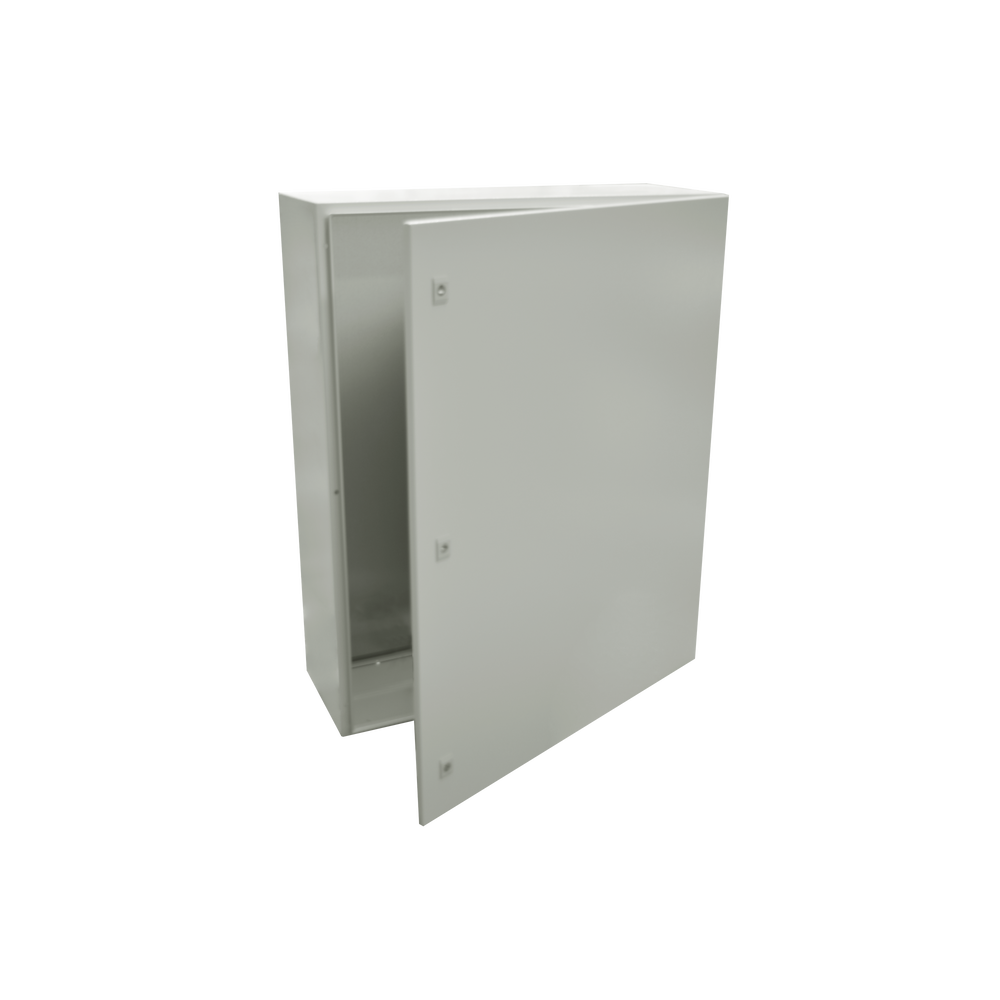

Gabinete de Acero IP66 Uso en Intemperie (800 x 1200 x 400 mm) con Placa Trasera Interior y Compuerta Inferior Atornillable (Incluye Chapa y Llave).

Steel cabinet for use in outdoor applications such as poles, telecommunication towers, or wall where there is no protection against rain or excessive dust.

Physical Characteristics:
Material: Steel.
Paint: Powder-based polyester.
Protection level: IP66
Impact resistance: IK10
Backplate material: Galvanized steel.
Dimensions: 800 x 1200 x 400 mm (with x height x depth).

Includes:
Steel body and door.
Backplate for mounting equipment.
Security lock with key.
Bottom cover for the installation of gland type connectors.
Packaging.

Application:
Installation of POE's in tower, pole or wall.
Battery storage (add ventilation recommended).
Cabinet for surge protectors, fuses, or electrical boards.

It is recommended to use gland type connectors for wiring output (See models).

Technical note: Fan implementation is possible, however, holes must be made manually in the cabinet. It is recommended to have a fresh air inlet at the bottom and a hot air outlet at the top, for this it is recommended the implementation of 2 model PST-BC-V60 (Not included) and it is necessary that at least one of them has a 60 x 60 mm fan, the recommended model is FAN-602512 (Not included).

Installing these items will reduce the protection level (IP) of the cabinet but will improve heat dissipation.
