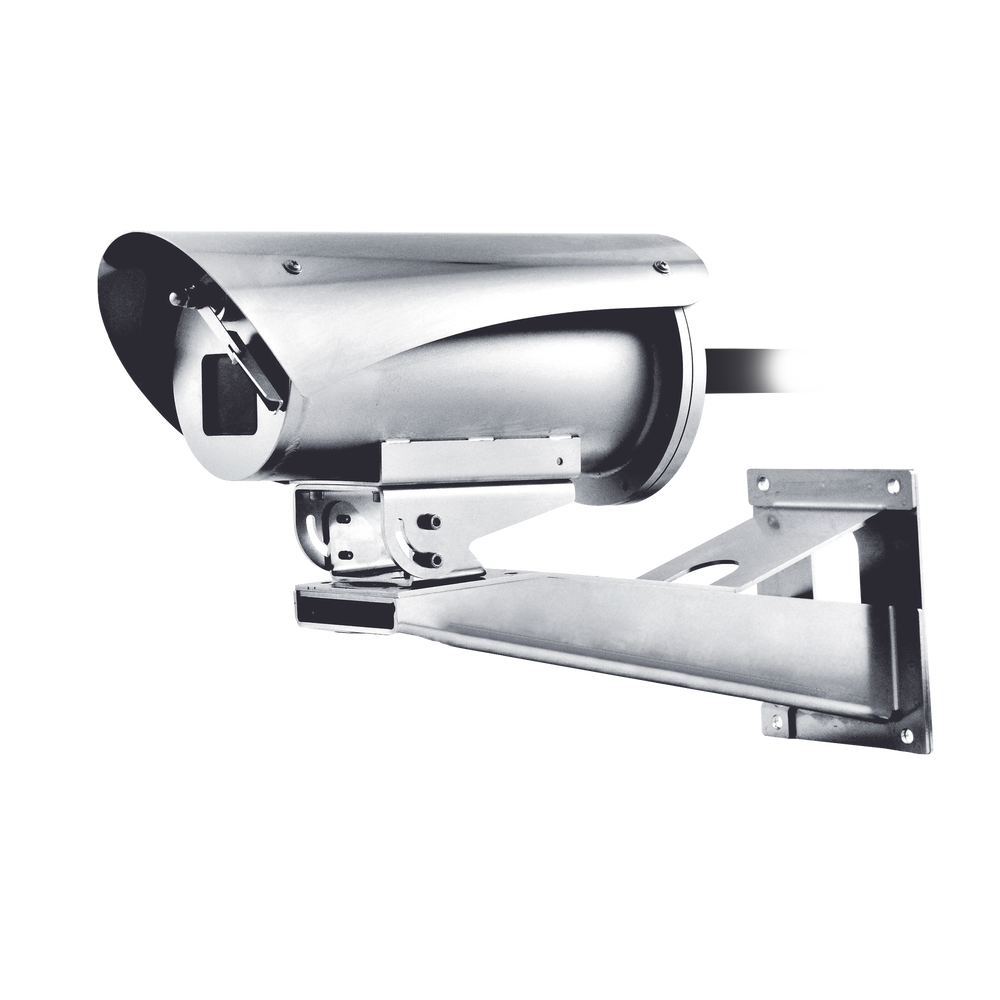

Cámara IP Full HD 1080p Zoom Óptico 10X Certificación Antiexplosión con Cable de 4 m y Limpiacristales

DESCRIPTION

The full HD explosion-protected MAXIMUS MXCHD is perfect for effective video surveillance and process control in harsh settings where the presence of gases or flammable dust can create a potentially explosive environment, a reality often found in the oil and gas industries or marine and industrial sectors.

The full HD, 1080p, 60fps, MXCHD camera with 10x or 30x motorized zoom lens for easier setup, offers multiple video streams (h.264/AVC or MJPEG) and provides exceptional image quality, picking out every detail in a scene, even in the harshest environmental conditions.

KEY FEATURES

· Certifications for use in Zones 1 and 2, IIC T5 and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C and T85°C Group (Dust)

· Camera Full HD 1080p, 10x or 30x, 60 frames per second (fps)

· Plug and Play

· 4m (13ft) / 10m (33ft) preinstalled armored multipolar cable with cable gland or, alternatively, with 4m (13ft) / 10m (33ft) cable tail

· Certification temperature:  -60°C  ~ +65°C (-76°F ~ 149°F)

· Power supply:   12-24Vdc/24Vac

· IP66/IP67/IP68/IP69

GENERAL FEATURES

 Camera:

· Sensor: CMOS 1/2.8 ExmorTM.

· Resolution: 2MP.

· Lens: 3.8 a 38 mm.

· Zoom: 10X.

· WDR 130dB.

 · Functions: autofocus, defog, mirror, image flip.

Video:

· Protocol: Onvif Perfil S.

· Resolutions: 1080p a 3352 x 240.

· Speed recording: hasta 60ips.

 · Codecs H.264, MJPEG.

Interface:

· RJ-45, 10BASE-T/ 100BASE-T.

· Alarm in.

 · Relay (1A, 30 Vac/ 60 Vdc máx).

Physical and Electric Features:

· IP66/ IP68 (2 hours, 5 m, EN/IEC60529).

. Mount not icluded, use NXWBS1

 · Operation temperature: -40 a 65 oC.

· Weight: 8.5 kg

 · Power: 12 Vdc, 24 V. Not included

Not included mounts: NXWBS1 (Montaje de pared) or MHXWFWCA (surface bracket)

Certificaciones: ATEX (EN 60079-0: 2012, EN 60079-1: 2014, EN 60079-31: 2014), IECEx (IEC 60079-0: 2011 Ed.6, IEC 60079-1: 2014-06 Ed.7, IEC 60079-31: 2013 Ed.2) INMETRO (ABNT NBR IEC 60079-0:2008 + Errata 1:2011, ABNT NBR IEC 60079-1:2009 +Errata 1:2011,

ABNT NBR IEC 60079-31:2011) EAC Ex (TR CU 012/2011) ETL listed for USA (UL 60079-0: Ed: 6, UL 60079-1:Ed:6, UL 60079-31: Ed.2)
