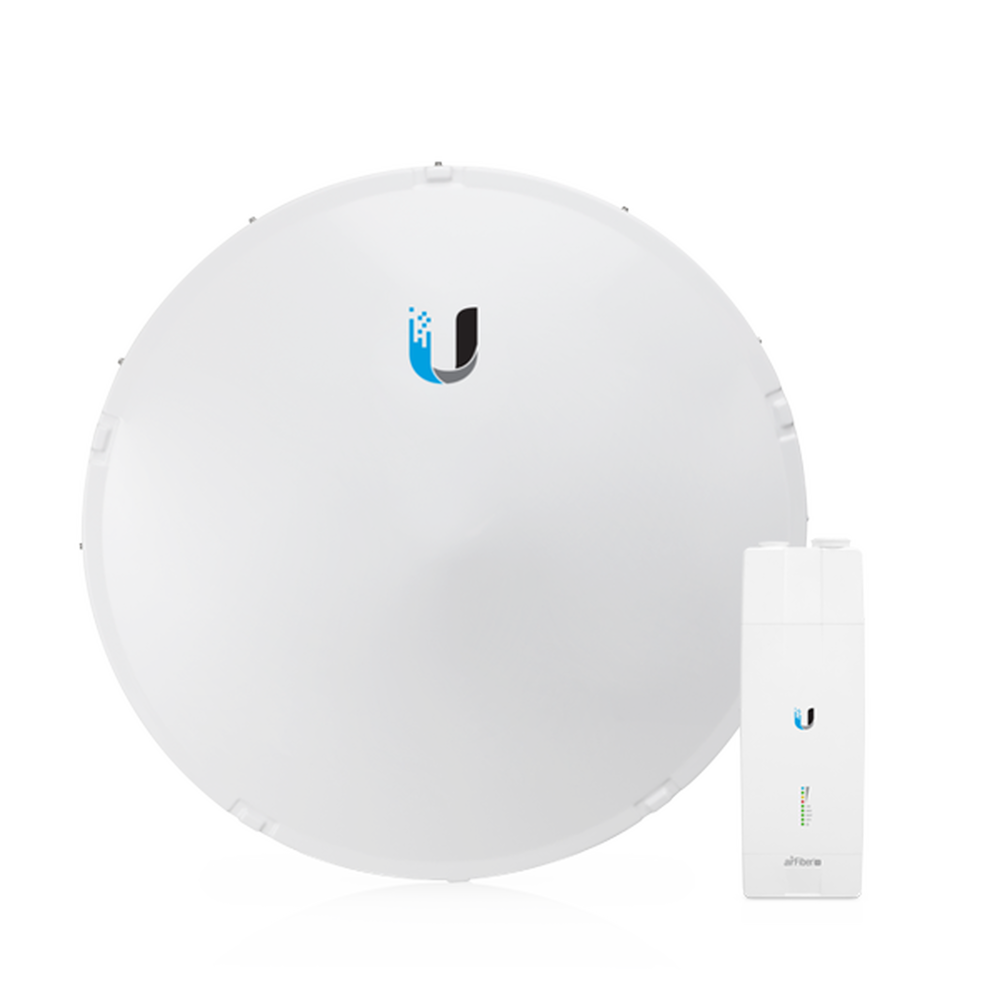

Radio de Backhaul de alta capacidad hasta 1.2 Gbps, banda licenciada 11 GHz (10.7-11.7 GHz), Incluye antena AF-11G35 y un duplexer banda alta AF-11-DUP-H
Descripción del producto
Advanced Engineering
Ubiquiti’s INVICTUS™ 2 custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications, providing superior performance, long-range capability, and higher delivered throughput.
Power Source Options
Support for PoE or DC power gives you the flexibility to power the AF-11 separately from Ethernet traffic.
Reversible Duplexers
Each AF-11 requires one or two Duplexers (sold separately; models AF-11-DUP-H and AF-11-DUP-L).
Channel Configuration
The airFiber AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific licensing requirements. The AF-11 also features different channel widths to suit your deployment needs, and you can independently configure TX and RX channel frequencies.
| Product Specification | |
|---|---|
| Dimensions | 327 x 112 x 86 mm (12.87 x 4.41 x 3.39") |
| Weight | 2.26 kg (5.0 lb) |
| RF Connectors | (4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer |
| Power Supply | 50V, 1.2A PoE Gigabit Adapter (Included) |
| Power Method | Passive Power over Ethernet, DC Power Block |
| Supported Voltage Range | 38-56VDC |
| Certifications | FCC Part 101, ETSI EN 302 217 |
| Mounting | AF-11G35 Mount Compatible |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Networking Interface Data Management | (1) 10/100/1000 Ethernet Port (1) 10/100 Ethernet Port |
| System | |
| Processor | INVICTUS™ 2 IC |
| Maximum Throughput | 1.2+ Gbps |
| Encryption | 128-bit AES |
| OS | airOS F |
| Wireless Modes | SISO/MIMO |
| Radio | |
| Operating Frequency | 10.7-11.7 GHz (Depends on Regulatory Region*) |
| Max. Conducted TX Power | 30 dBm (Depends on Regulatory Region*) |
| Frequency Accuracy | ± 1 ppm |
| Channel Bandwidth | 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz Selectable** Programmable Uplink and Downlink Duty Cycles |
| airFiber AF‑11G35 | |
| Dimensions | 811 x 811 x 460 mm (31.9 x 31.9 x 18.1") |
| Weight Mount Not Included Mount Included | 7.14 kg (15.74 lb) 11.85 kg (26.12 lb) |
| Frequency | 10.3 to 11.7 GHz |
| Gain | 35 dBi |
| HPOL Beamwidth | 2.5° |
| VPOL Beamwidth | 2.5° |
| Maximum VSWR | 2:1 |
| Wind Loading | 1538 N @ 200 km/h (346 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization Default After Rotating OMT | H/V ± 45° |
| Cross-Pol Isolation | 35 dB |
| Mounting | Pole Mount |
| Pattern Regulatory | ETSI 302 217-4-2, Class 3 and FCC Cat B |
