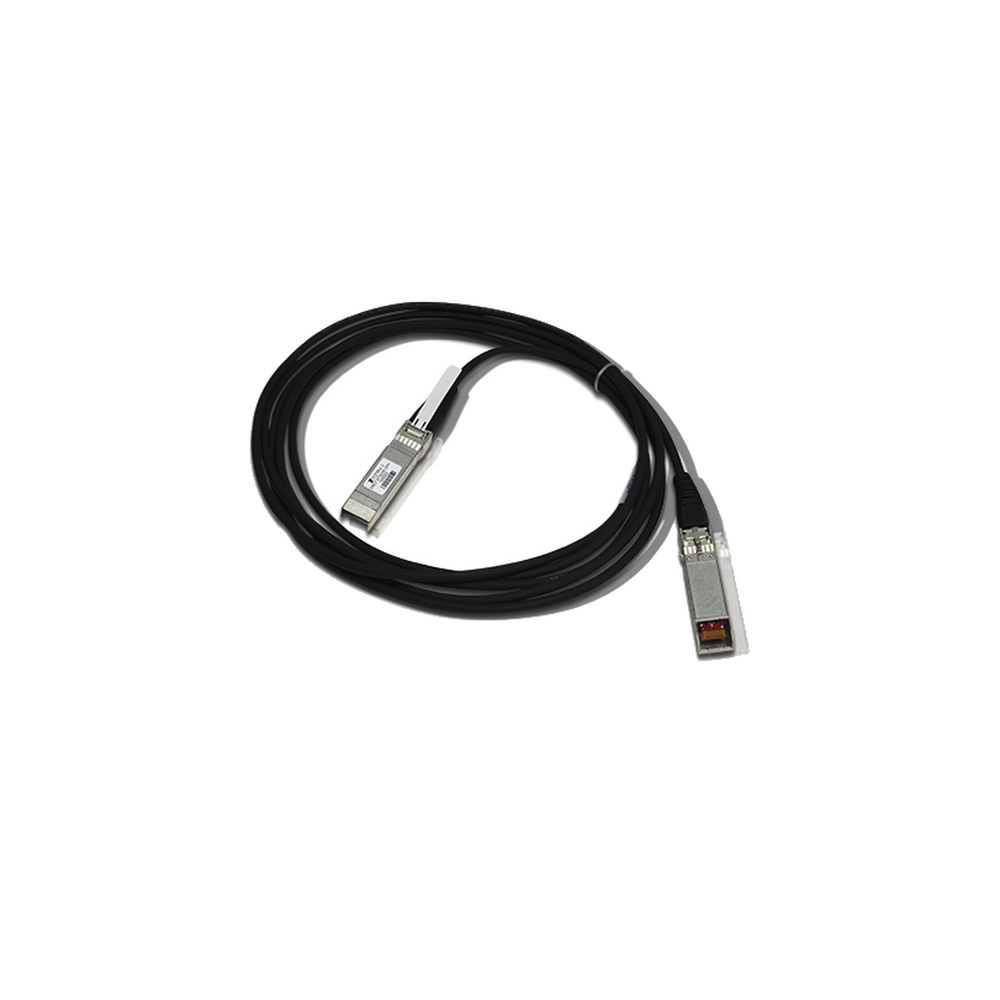

Cable de Conexión Directa SFP+ Twinax 10 Gbps de 3 m

SFP+ Twinax Direct Attach Cable, 10 Gbps 3 m.

The AT-SP10TW SFP+ direct attach copper cable assembly is a low-cost alternative for short reach applications. The design allows for a serial data transmission up to 12Gbps in each direction. Additionally, the copper cable acts as a natural heat sink. The low power consumption assists in making the passive copper cable assembly an economic solution for within rack or rack-to-rack applications.

The direct attach cable is terminated on both ends with mechanical connectors that plug directly into SFP+ slots in the same manner as SFP+ transceiver modules.

Key Features

• SFF-8431 MSA compliant
• Broadband serial data rate operation: 10Mbps to 12Gbps
• Power level I: 15 mW per cable end
• 100 Ohm differential impedance
• Retractable pin latch
• EEPROM signature
• Pull to release latch design
• 360° cable braid crimp
• Enhanced EMI skirt design
• Linear design for use with EDCs
• AC-coupled inputs and outputs
• 30AWG to 24AWG cable available
• Two-year warranty*
