Descripción del producto

ePMP Force 425

Cambium Networks introduces the ePMP Force 425 point to point solution delivering up to 1 Gbps throughput at a breakthrough price point based on the latest 802.11ax standards.









ePMP Force 400 Series

Cambium Networks introduces the ePMP Force 425 and Force 400C point to point solutions delivering up to 1 Gbps throughput at a breakthrough price point based on the latest 802.11ax standards. The Force 400 Series is the ideal solution for service providers looking to deliver high capacity access services to Enterprise and residential customers. It also serves as a low-cost backhaul for MicroPOP’s and outdoor Wi-Fi access points that require lots of capacity at moderate range without the overhead of licensed microwave. With an integrated SFP port and optional GPON ONU module, the Force 425 makes a great fiber extension to reach places where fiber cannot.

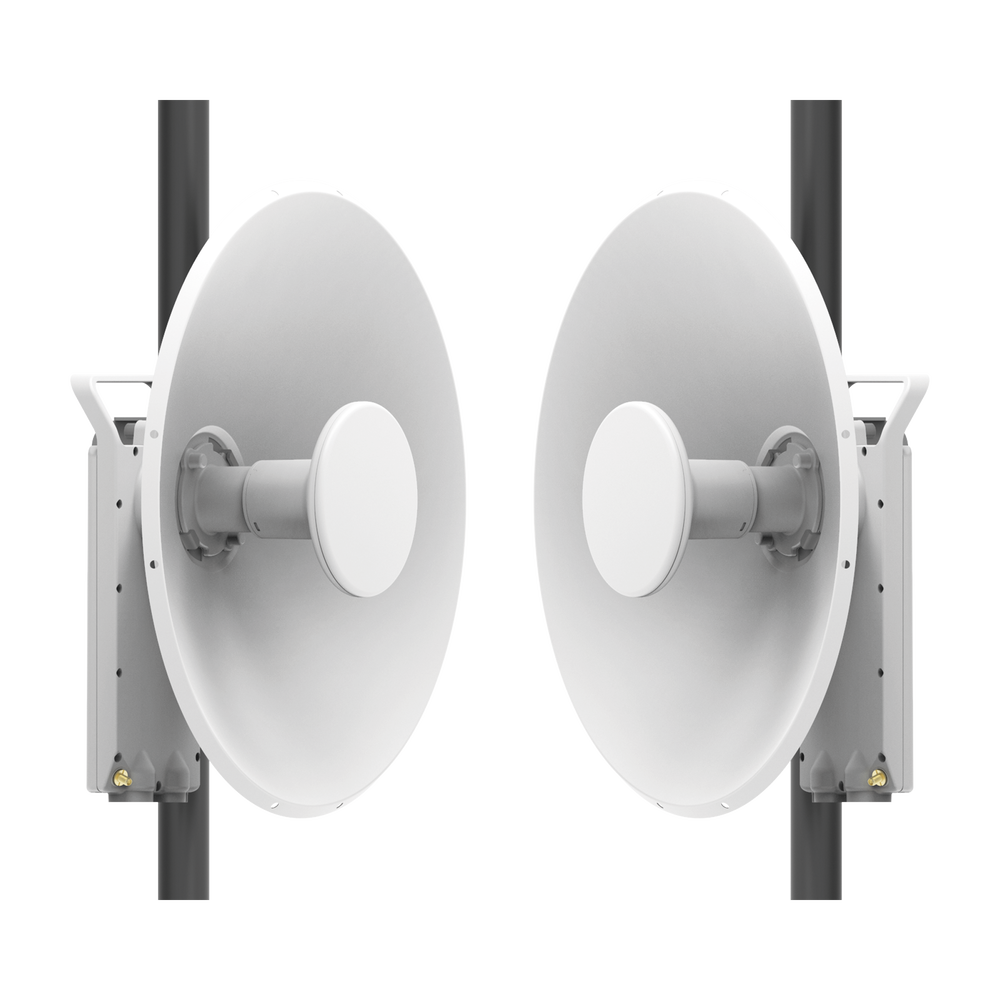

The Force 425 pushes this capacity farther than ever with an integrated 25 dBi dish (and even farther with the optional 28 dBi range extender). The optional range extender is ordered separately and can be assembled and attached in the field to add additional link budget and fade margin for challenging links or to move to higher capacity where needed and higher modulations can be achieved.

For even longer range applications, the Force 400C is a connectorized option with two RP-SMA RF interfaces for use with larger parabolic dishes or horn antennas.


Leveraging the latest technology from the 802.11ax standard and Cambium’s proprietary ePTP mode, the Force 425/400C delivers high spectral efficiency with features such as 1024QAM, 80 MHz channels, a highly efficient frame structure and the proven ePTP air interface. The Force 400 Series delivers Gbps performance with less than 5 ms latency.

The Force 400 series has enterprise grade security with 128-bit AES over-the-air encryption (256-bit AES where export rules allow), secure management interfaces with roles-based authentication and standards-based device authentication including RADIUS support. Force 425/400C is built for the real world with IP67 ruggedization, simplified mounting scheme and includes Cambium Networks 3-year hardware warranty.

Plan and manage your Force 425/400C deployments with Cambium’s LINKPlanner and cnMaestro.

Specifications

Channel Width MHz
20 | 40 | 80

Proprietary Physical Layer
802.11ax, 2x2 MIMO/OFDM

Channel Spacing
Configurable in 5 MHz increments

Frequency Range
Wide Band Operation 4910 - 6135 MHz (Note: Country dependent based on local regulations. Support of 5870 to 6135 coming in a future software upgrade.)
ARQ
Yes

Maximum Capacity
1 Gbps

Latency
< 5 ms

Transmit Power Range
+3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)
Connectors
1 x RJ-45, 1 x SFP

Surge Supression*
1 Joule Integrated

Environmental
IP67

Power Consumption
28 W
