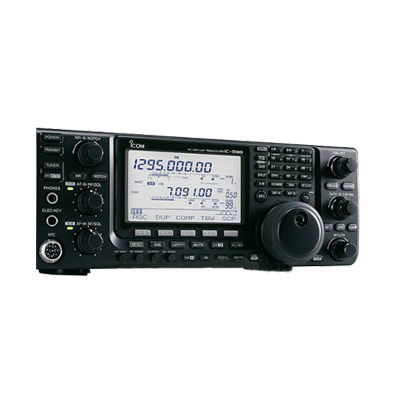

HF/VHF/UHF Transceiver, Rx 0.030-60.000MHz, 136-174MHz, 420.00-480.00MHz, Tx 1.8-29.700MHz USB 50-54MHz, 144-148MHz, 430-450MHz, mode operation USB, LSB, CW, RTTY (FSK), FM, AM, DV (con UT-121)
HF/VHF/UHF Transceiver, Rx 0.030-60.000MHz, 136-174MHz, 420.00-480.00MHz, Tx 1.8-29.700MHz USB 50-54MHz, 144-148MHz, 430-450MHz, mode operation USB, LSB, CW, RTTY (FSK), FM, AM, DV (con UT-121)
HF/VHF/UHF Transceiver, Rx 0.030-60.000MHz, 136-174MHz, 420.00-480.00MHz, Tx 1.8-29.700MHz USB 50-54MHz, 144-148MHz, 430-450MHz, mode operation USB, LSB, CW, RTTY (FSK), FM, AM, DV (con UT-121)
HF/VHF/UHF Transceiver, Rx 0.030-60.000MHz, 136-174MHz, 420.00-480.00MHz, Tx 1.8-29.700MHz USB 50-54MHz, 144-148MHz, 430-450MHz, mode operation USB, LSB, CW, RTTY (FSK), FM, AM, DV (con UT-121)

HF/VHF/UHF Transceiver, Rx 0.030-60.000MHz, 136-174MHz, 420.00-480.00MHz, Tx 1.8-29.700MHz USB 50-54MHz, 144-148MHz, 430-450MHz, mode operation USB, LSB, CW, RTTY (FSK), FM, AM, DV (con UT-121)

$0.00
Marca:
Código del producto: IC-9100/02
Disponibilidad: ¡Agotado!

Descripción del producto








General

Frequency coverage*1

*1Showing USA version only.



Some frequency bands are not guaranteed

Rx0.030 – 60.000*2136.000 – 174.000*2
Rx420.000 – 480.000*21240.000 – 1320.000*2*3
Tx1.800 – 1.9993.500 – 3.999
Tx5.255 – 5.405*27.000 – 7.300
Tx10.100 – 10.15014.000 – 14.350
Tx18.068 – 18.16821.000 – 21.450
Tx24.890 – 24.99028.000 – 29.700
Tx50.000 – 54.000144.000 – 148.000
Tx430.000 – 450.0001240.000 – 1300.000*3
*2 Some frequency bands are not guaranteed. *3 With optional UX-9100.
Mode

USB, LSB, CW, RTTY (FSK), FM, AM*, DV (with UT-121)

(* Transmit: HF/50MHz only; Connect receive on 1200MHz band))

Frequency stabilityLess than ±0.5 ppm (0°C to +50°C)
Number of memory channels396 Ch*5 (99 Ch for each HF/50, 144, 430/440, 1200MHz band)
4 Call Ch*5 (1 Ch for each band)
24 Scan edges*5 (6 Ch for each band)
20 satellite memories and 26 GPS memories
Operating temperature range0°C to +50°C; +32°F to +122°F
Power supply requirement13.8 V DC ±15%

Current drain (at 13.8 V DC)

TxMax. power24A, 9.0A (1200MHz with UX-9100
 RxMax Audio4.5A, 5.5A (1200MHz with UX-9100)
Dimensions (W × H × D)

315 × 116 × 343 mm

1213/32 × 49/16 × 131/2 in.

Weight (approx.)
UX-9100		11 kg; 24.3 lb
950g; 2.1lb

Antenna connector

  VHF

  UHF

HF/50MHz SO-239 (50Ω) ×2

144MHz SO-239 (50Ω)

430/440MHz Type-N (50Ω)

1200MHz (with UX-9100) Type-N (50Ω)

Transmitter

Modulation System

SSB

AM

FM

DV (UT-121)



Digital PSN modulation
Digital Low power modulation

Digital Phase modulation

GMSK Digital Phase modulation

Output power (cont. adj.)

HF/50 Mhz



144 MHz

430/440 MHz

1200MHz (With UX-9100)



2-100W (SSB/CW/RTTY/FM/DM)
2-25W (AM)

2-100W (SSB/CW/RTTY/FM/DV)

2-75W (SSB/CW/RTTY/FM/DV)

1-10W (SSB, CW, RTTY, FM, DV)

Spurious emission

1.8—29.995MHz

50MHz/144MHz

430/440MHz

1200MHz (with UX-9100



Less than -50 dB

Less than -63 dB

Less than –61.8 dB

Less than –53 dB

Carrier suppressionMore than 40 dB
Unwanted sideband
1200MHz (With UX-9100)		More than 55 dB
More than 40dB
Microphone connector8-pin connector (600Ω)

Receiver

Intermdiate frequencies

HF/50MHz

144MHz

430/440MHz

1200MHz (With UX-9100)



64.455MHz, 36kHz

10.850MHz, 36kHz

71.250MHz, 36kHz

243.950MHz, 10.950MHz, 36kHz

Sensitivity
SSB, CW
AM
FM
DV
0.5–1.8MHz*11.8–29.9MHz*150–54MHz*2144/440MHz1200MHz
—0.16μV0.13μV0.11μV0.11μV
12.6μV2.0μV1.6μV1.4μV–
—0.50μV (28-29.7)0.32μV0.18μV0.18μV
—1.0μV (28-29.7)0.63μV0.35μV0.35μV
* SSB/CW, AM: 10dB S/N, FM: 12dB SINAD, DV: 1% BER 1 Preamp1 ON. *2Preamp2 ON.

Selectivity

SSB
(BW: 2.4kHz, sharp)

CW
(BW:500Hz sharp)

RTTY (BW: 350Hz sharp)



AM (BW: 6kHz)



FM (BW: 15kHz)



DV (12.5kHz channel spacing)

1200MHz (With UX-9100)

SSB, CW

FM



More than 2.4 kHz/-6dB;

Less than 3.4 kHz/-40 dB

More than 500 Hz/-6dB;

Less than 700 Hz/-40 dB

More than 500kHz/-6dB

Less than 800 Hz/-40 dB

More than 6.0 kHz/-6 dB

Less than 10.0 kHz/-40 dB

More than 12.0 kHz/-6 dB

Less than 22.0 kHz/-40 dB

More than -50 dB



More than 2.3kHz/-6 dB

More than 15.0kHz/-6 dB

Spurious and image rejection ratio

HF/50MHz

144/440MHz

1200MHz (with UX-9100)





More than 70dB

More than 60dB

More than 50dB

Audio output power

More than 2.0 W at 10% distortion with an 8 ohm load

EXT SP connector

2-conductor 3.5 (d)mm (1⁄4")⁄8Ω

All stated specifications are subject to change without notice or obligation.
