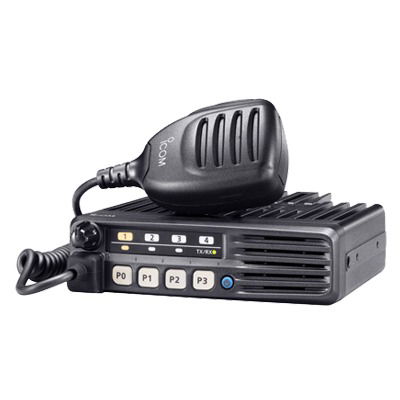

Mobile Analog VHF Radio 136-174 MHz 25Khz, MDC1200, 8 Channels, 50 Watts

Simple Operation, Versatile Functions and Rugged Construction for Your Day-to-day Communication Needs

Simple Operation for Instant Communication

The IC-F5011 series has 8 channels. The P0-P3 programmable buttons allow you to customize the radio to suit your needs and convenience.

Most Popular Signalings Built-in

Use the built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.

Multiple 2-Tone, Multiple 5-Tone

Up to ten 2-Tone or eight 5-tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan audio output are programmable to respond to each tone.

MDC 1200 Compatible

The IC-F5011 series has a built-in MDC 1200 for transmitting a PTT ID and emergency * signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.
(*No ACK transmission)

Enhanced Scan Features

The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.

Remote Channel Control with Optional ACC Cable

The optional ACC cable allows you to connect with various external devices to control audio output, modulated signal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.

Built Military Rugged

The IC-F5011 series is tested to MIL-STD 810 F specifications. The radio is built to survive harsh environment and keep working.

Specifications

• Frequency range 136-174MHz.

• 4W speaker mounted on front.

• Voice encryption (requires UT-109R/UT-110R).

• Autodial via DTMF.

• Improved channel scanner (Scan)

• Padlock against reading.

• Power-on password.

• Programmable minimum volume level.

• 4 programmable buttons.

• Accesory connector for interconnections.

• 8 Channels

• 50 W (VHF)

• Operates on 12.5 kHz analog channel width.

Signalling MDC-1200:

• PTT-ID (ANI).

• Stun (RX).

• Revive (RX).

• Emergency call.

5-Tone signaling:

• PTT-ID (ANI).

• Selective call.

• Group call.

• Spy radio.

• Emergency call.

• Remote radio supervision (Radio Check).

• Radio deactivation via air (Radio Kill).

DTMF Signaling:

• PTT-ID (ANI).

• Emergency call.

Includes:

• Microphone HM-152

• Current cable OPC-1132A

• Bracket

• Microphone hook

• Manufactured in ISO 9001:2008 environment

• Complies with military standards MIL-STD 810 C, D, E and F

• 3-year warranty
