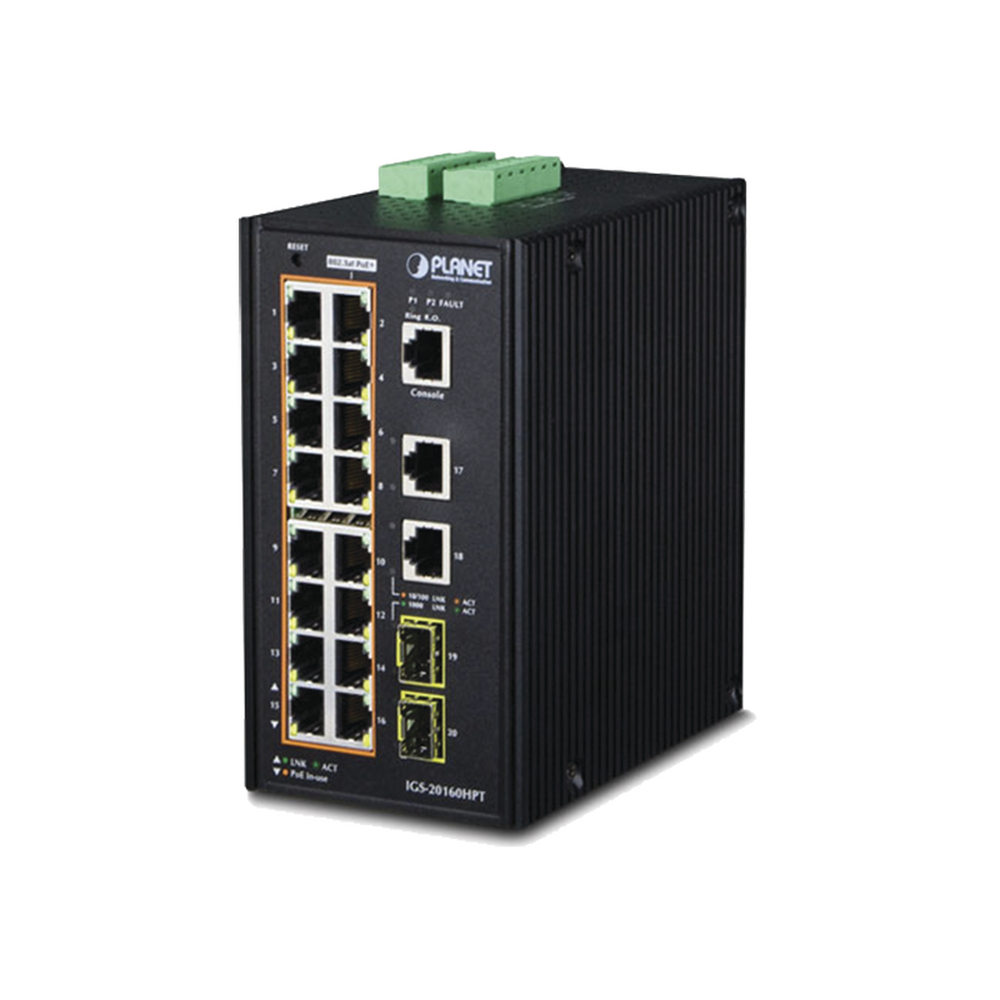

Switch Industrial Administrable 16 puertos 10/100/1000 T 802.3at PoE + 2 Puertos 10/100/1000 T + 2 puertos 100/1000 X SFP

PLANET Industrial 16-Port Gigabit 802.3at PoE+ Switch, IGS-20160HPT, is equipped with rugged IP30 metal case for stable operation in heavy Industrial demanding environments. With IP30 industrial case protection, the IGS-20160HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges.Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-20160HPT can be placed in almost any difficult environment.

Ports

• 18 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
• 2 1000BASE-SX/LX/BX SFP interfaces (Port-19 and Port-20)Compatible with 100BASE-FX SFP
• 16 ports with 802.3at/af PoE injector function with Port-1 to Port-16
• 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)

Layer 2 Function

• 802.1Q tagged based VLAN, up to 255 VLAN groups
• Q-in-Q tunneling
• Private VLAN Edge (PVE)
• MAC-based VLAN
• Protocol-based VLAN
• Voice VLAN
• MVR (Multicast VLAN Registration)
• Up to 255 VLAN groups, out of 4094 VLAN IDs
• IEEE 802.3ad LACP/static trunk
• Supports 10 trunk groups with 4 ports per trunk group
• IP-based ACL/MAC-based ACL Up to 123 entries

Layer 3 Function

• Max. 32 routing entries

Quality of Service

Traffic classification based, strict priority and WRR
8-level priority for switching

• Port number
• 802.1p priority
• 802.1Q VLAN tag
• DSCP/TOS field in IP packet
