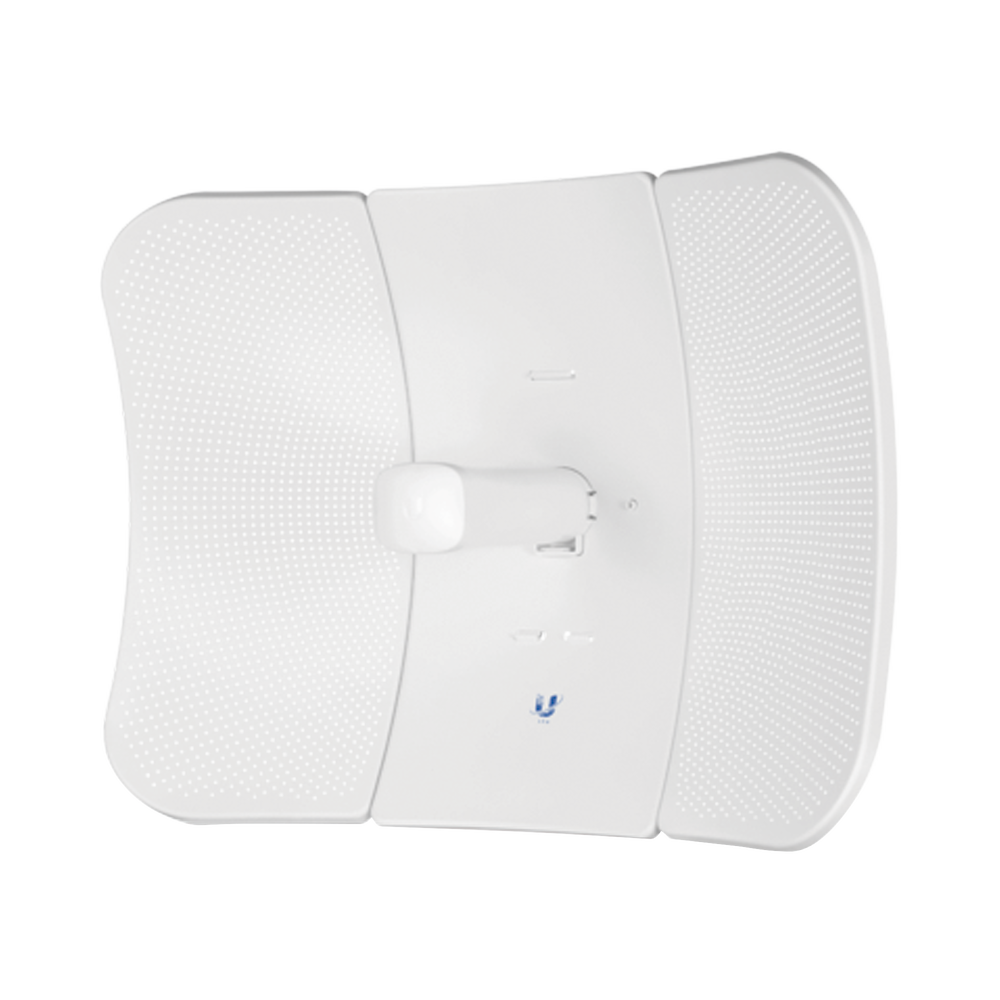

5 GHz PtMP LTU™ Long Range Client Radio with High-Power InnerFeed, (4.8 - 6.2 GHz) with 26 dBi - US Version
5 GHz PtMP LTU™ Long Range Client Radio with High-Power InnerFeed, (4.8 - 6.2 GHz) with 26 dBi - US Version
5 GHz PtMP LTU™ Long Range Client Radio with High-Power InnerFeed, (4.8 - 6.2 GHz) with 26 dBi - US Version

5 GHz PtMP LTU™ Long Range Client Radio with High-Power InnerFeed, (4.8 - 6.2 GHz) with 26 dBi - US Version

$0.00
Marca:
Código del producto: LTU-LR(US)
Disponibilidad: ¡Agotado!

Descripción del producto

Customized Technology for WISP Operators

Unmatched spectral efficiency, noise resiliency, and scalability to power long-range fixed wireless networks of the new internet

Breakthrough in 5 GHz Long-Range Broadband Radio Technology

Spectral efficiency comparison of 802.11n, 802.11ac, AirFiber, and LTU by year

Spectral Efficiency

Packets per Second

Modulation Symbols

Outstanding Performance

Designed for scale in harsh RF environments

Industry's First End-to-End Customized PtMP Platform Technology

Affordable, no subscription fees. Rapid flow of releases and new features

Multi-Radio Architecture Powering Revolutionary RF Analytics Engine

Ubiquiti Network Management System

LTU-LR
Dimensions512.5 x 385.75 x 258.3 mm
(20.18 x 15.19 x 10.17")
Weight
With Mount		1.360 kg (2.998 lb
1.735 kg (3.825 lb)
Networking Interface(1) 10/100/1000 Ethernet Port
EnclosureOutdoor UV Stabilized Plastic
Max. Power Consumption8.5W
Power Supply24V, 0.5A Gigabit PoE Adapter (Included)
Power Method24V Passive PoE (Pairs 4, 5+; 7, 8-)
Voltage Range22 -26V
Max. Conducted TX Power22 dBm (per Chain)
Gain26 dBi
MountingPole-Mount (Kit Included)
Wind Loading550 N @ 200 km/h
(123.6 lbf @ 125 mph)
Wind Survivability200 km/h
(125 mph)
ESD/EMP Protection± 24kV Contact/Air
Operating Temperature-40 to 60° C
(-40 to 140° F)
Operating Humidity5 -95% Noncondensing
CertificationsCE, FCC, IC
Operating Frequency (MHz)
Worldwide2400 -2483.5*
4800 -6200*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 -5250
5250 -5350
5470 -5725
5725 -5850
EU2400 -2483.5
5150 -5875

*Depends on regulatory region
