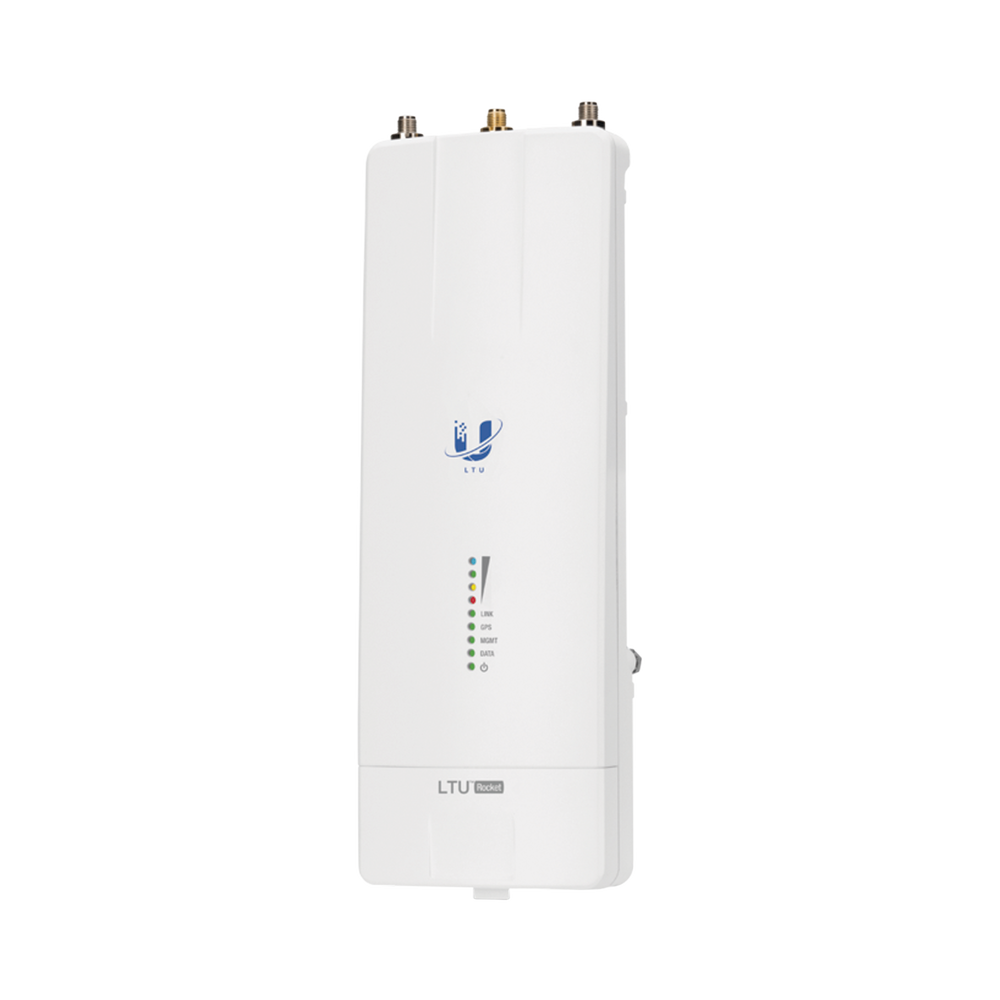

Radio Estación Base PtMP LTU™ Rocket, hasta 600 Mbps, 5 GHz (4.9 - 6.2 GHz), con filtrado de RF patentado y GPS sync para un rendimiento superior
Descripción del producto
Customized Technology for WISP Operators
Unmatched spectral efficiency, noise resiliency, and scalability to power long-range fixed wireless networks of the new internet
Breakthrough in 5 GHz Long-Range Broadband Radio Technology
Spectral efficiency comparison of 802.11n, 802.11ac, AirFiber, and LTU by year
Spectral Efficiency
Packets per Second
Modulation Symbols
Outstanding Performance
Designed for scale in harsh RF environments
Industry's First End-to-End Customized PtMP Platform Technology
Affordable, no subscription fees. Rapid flow of releases and new features
Multi-Radio Architecture Powering Revolutionary RF Analytics Engine
Ubiquiti Network Management System
| LTU-Rocket | |
|---|---|
| Dimensions | 244 x 82 x 48 mm (9.61 x 3.23 x 1.89") |
| Weight | 0.468 kg (16.5 oz) |
| Enclosure | Diecast Aluminum and Polycarbonate |
| RF Connectors | (2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS) |
| GPS Antenna | External Magnetic Base |
| Power Supply | 24V, 1A Gigabit PoE Adapter (Included) |
| Power Method | Proprietary 4-Pair Passive PoE Pins 1, 2; 4, 5+ and Pins 3, 6; 7, 8- |
| Max. Power Consumption | 15W |
| Voltage Range | +18 to +54VDC* |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Mounting | Integrated Pole Mount (Included) Rocket Mount Compatible GPS Pole Mount (Included) |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Weatherproofing | IP672** |
| Certifications | FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1 |
| System | |
| Maximum Throughput | 675.84 Mbps ***, **** |
| Maximum Range | 100+ km*** |
| Packets per Second | 2+ Million |
| Encryption | WPA2-PSK (AES) |
| Forward Error Correction | LDPC |
| Uplink/Downlink Ratio | 25/75, 33/67, 50/50 |
| OS | airOS LTU |
| Wireless Modes | AP |
| Frequency Range MHz | |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850 |
| Worldwide | 4900 - 6200 |
| Max. Conducted TX Power | 29 dBm (Dependent on Regulatory Region) |
| Frequency Accuracy | < 2 ppm |
| Channel Bandwidth | 10/20/30/40/50 MHz Selectable Programmable Uplink and Downlink Duty Cycles |
* Full range depends on Ethernet cable length.
** After installation of IP67 upgrade kit (included).
*** Values may vary depending on the environmental conditions.
**** 1+ Gbps with future firmware upgrade.
