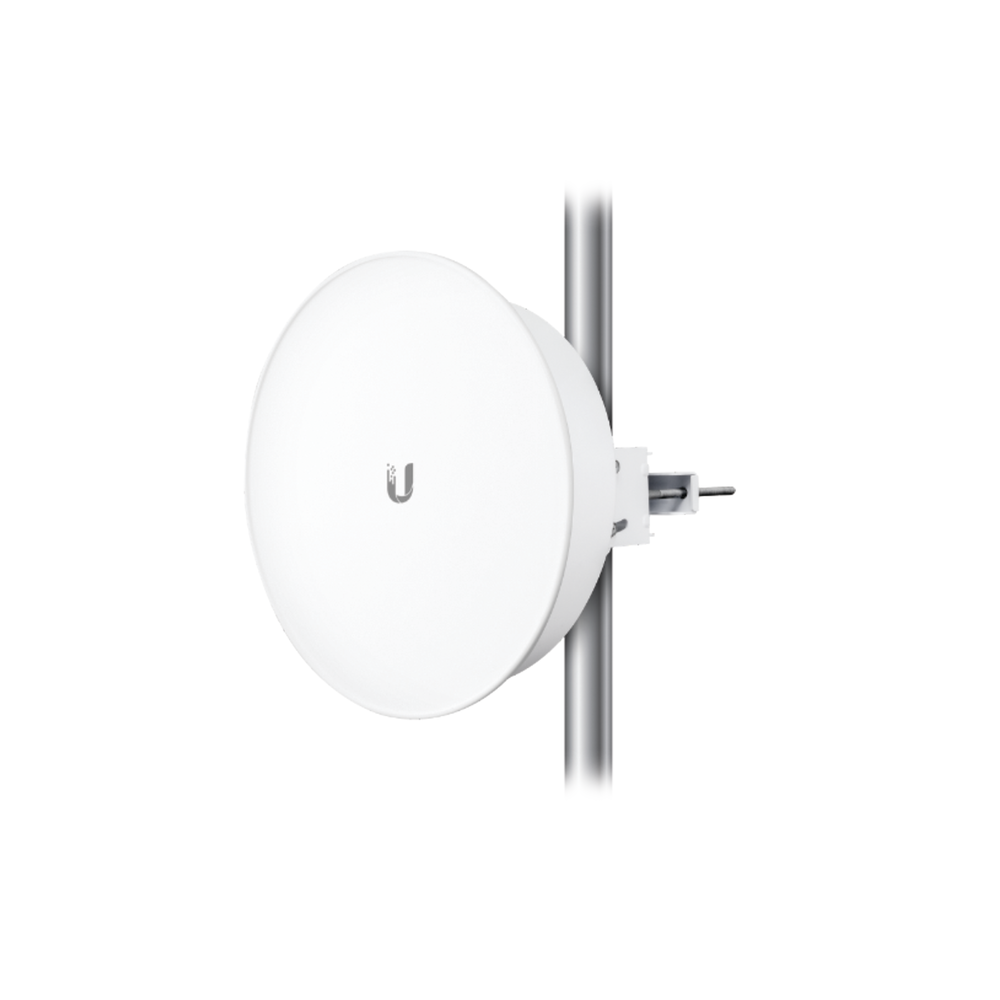

PowerBeam® 802.11ac 5 GHz ac Bridge up to 450 Mbps, 5.5 W with 22 dBi Gain Antenna, ISO Ring

FREQUENCY: 5 GHz
Throughput: 450+ Mbps
 Range: 20+ Km

Performance Breakthrough

airMAX^® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Innovative Mechanical Design

The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.

Superior RF Isolation

Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.

Superior Processing

Ubiquiti's airMAX^® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology

Advanced Software Technology

Ubiquiti’s airMAX^® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

-Operational mode: Access Point, Station

-Newly Drum type insulation system

-Helps External noise mitigation

-Internal metal type design

-AirmaxAC technology up to 450 Mbps

-22 dBi integrated -Antenna

-Operational range: 5150-5875 MHz

-Wide Channel: 20,40,50,60,80 MHz configurable

-Power Supply: 24V 0.5A includes Passive PoE

-Port Gigabit Ethernet.

-Temperature: -40 to 176 ºF (-40 to 80 °C).

-Dimensions: 14.33 x 14.33 x 10.87" (364 x 364 x 276 mm).

-Weight: 5.62 Lb (2.55 Kg).
