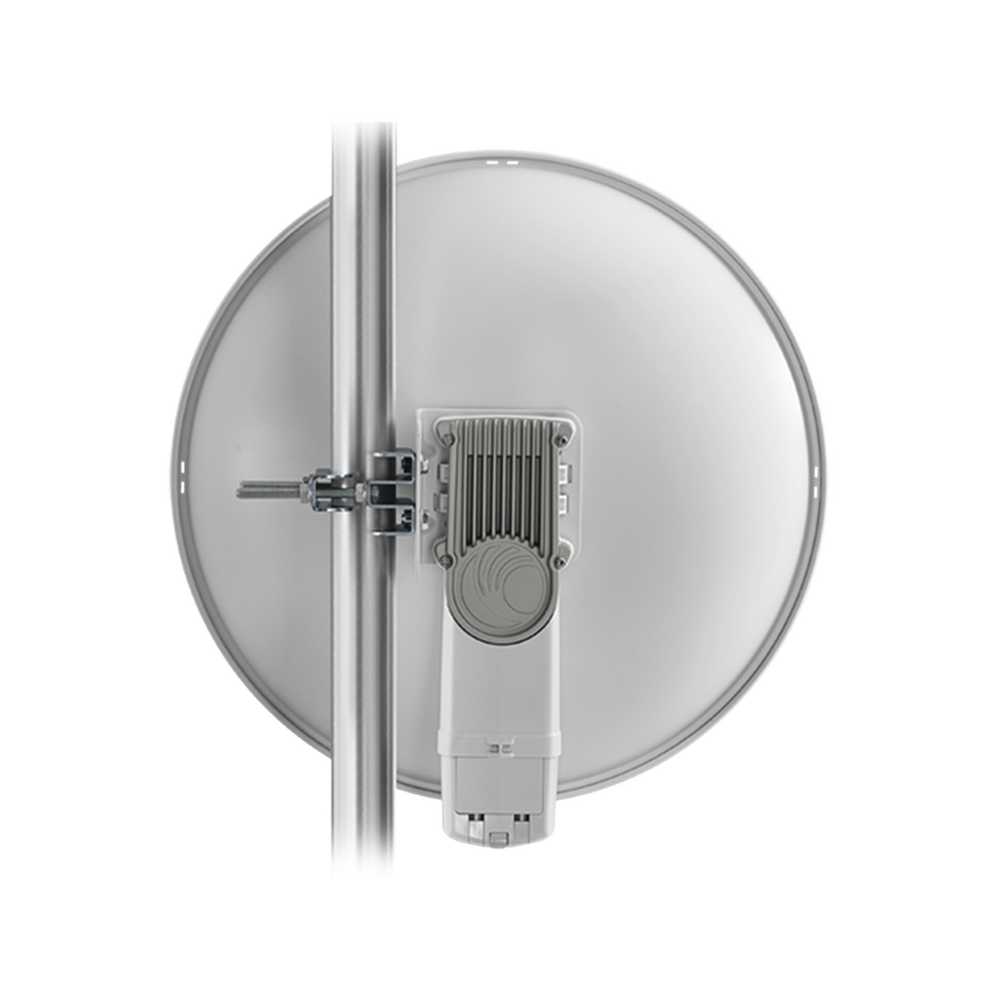

(C054045H013B) 4 PACK Serie PMP 450 - Suscriptor Punto - Multipunto para banda libre de 40 Mbps con antena de 25 dBi

SPECTRUM

FREQUENCY RANGE 5470 - 5875 MHz

CHANNEL WIDTH 5 MHz, 10 MHz, 15 MHz, 20 MHz or 30 MHz

CHANNEL SPACING Selectable on 2.5 MHz increments

MAC (MEDIA ACCESS CONTROL) LAYER Cambium Networks proprietary

PHYSICAL LAYER 2x2 MIMO OFDM

ETHERNET INTERFACE 10/100/BaseT, half/full duplex, rate auto negotiated (802.3 compliant)

PROTOCOLS USED IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP

NETWORK MANAGEMENT HTTP, HTTPS, Telnet, FTP, SNMP v3

VLAN 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

ARQ  YES

MODULATION LEVELS (ADAPTIVE) MODULATION SIGNAL TO NOISE REQUIRED (SNR, in dB)

2X QPSK 10

4X 16-QAM 17

6X 64-QAM 24

8X 256-QAM 32

MODULATION MODES (DYNAMIC) Dual Payload (higher throughput) MIMO-B or Single Payload (polarity diversity) MIMO-A

MAXIMUM DEPLOYMENT RANGE Up to 40 miles

LATENCY 3 - 5 ms, typical

GPS SYNCHRONIZATION Yes, via Autosync (CMM3, CMM4, uGPS, iGPS)

QUALITY OF SERVICE Diffserv QoS

ANTENNA SPECIFICIATIONS 7° azimuth , 7° elevation , >30 dB front-to-back isolation

INTEGRATED DISH GAIN 25 dBi

TRANSMIT POWER RANGE -30 TO +22 dBm (combined, to EIRP limit by region) (1 dB interval)

MAXIMUM TRANSMIT POWER +22 dBm combined

ANTENNA CONNECTION Integrated dish antenna

SURGE SUPPRESSION IEC 61000-4-2 (ESD) 15kV (AIR), 8kV (contact)

IEC 61000-4-4 (EFT) 40A (5/50 ns)

IEC 61000-4-5 (LIGHTNING) 100A (8/20 ms )

MEAN TIME BETWEEN FAILURE > 40 Years

ENVIRONMENTAL IP55

TEMPERATURE -40°C TO +60°C (-40°F TO 140°F), 0-95% non-condesnsing

WEIGHT 3.5 kg (7.7 lbs)

DIMENSIONS Dish diameter – 47 cm (16.8 inches with Radome)

Depth - 17 cm (6.6 inches)

TYPICAL POWER CONSUMPTION 9 W

MAXIMUM POWER CONSUMPTION 12 W

INPUT VOLTAGE 20 TO 32 V

WIND SURVIVAL SPEED 145 km/h (90 mph)

WIND LOADING (@145 KM/H (90 MPH) FRONT) 197N (44.3 lbf)

WIND LOADING (@145 KM/H (90 MPH) SIDE) 65.5N (14.7 lbf)

MOUNTING POLE SIZE (RANGE) 25.4mm to 76.2mm (1” to 3”)

MECHANICAL DOWNTILT -30° to +30°

SHIPPING CARTON (4-PACK) - SIZE 500 mm x 500 mm x 380 mm

SHIPPING CARTON (4-PACK) - WEIGHT 20 kg (44 lbs)
