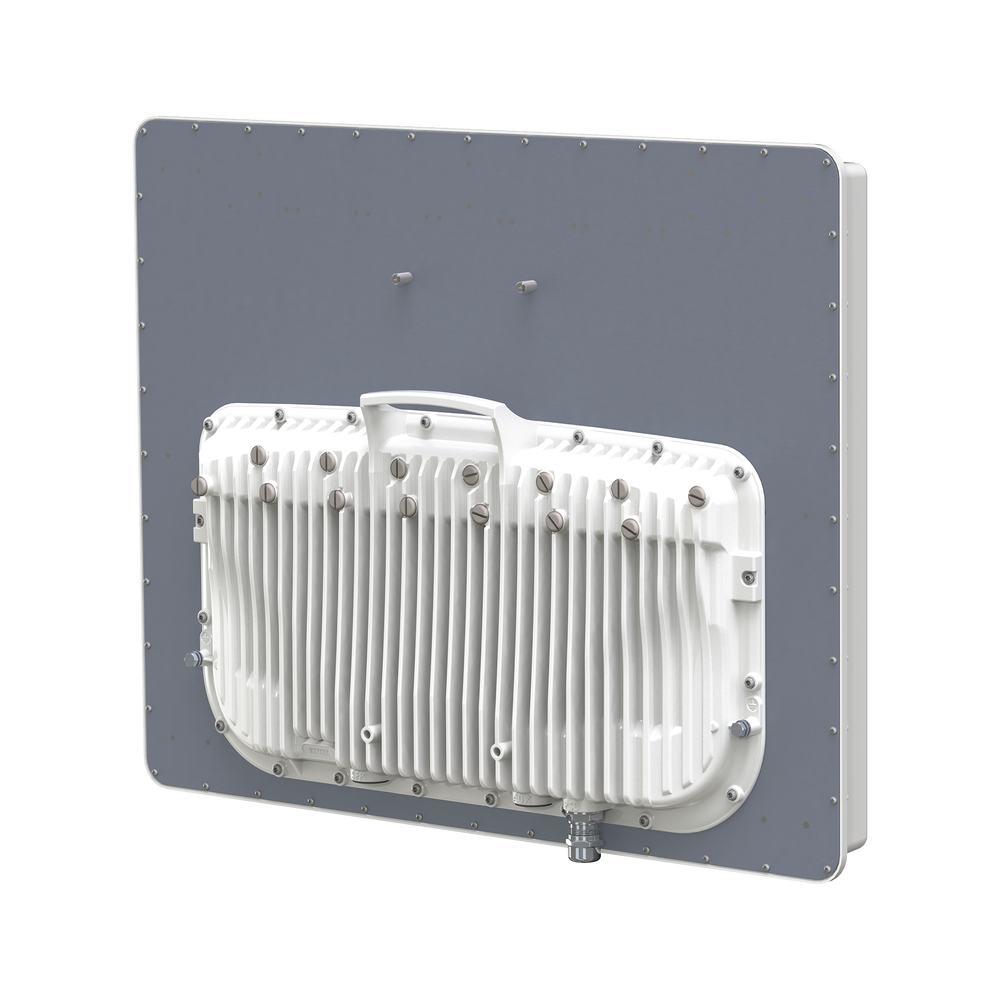

cnMedusa- Access Point Multipunto con antena 90 grados/1.2 Gbps/Tecnología Beamforming/Mu-Mimo 14x14 - C050045A101A
Descripción del producto
Key Features:
• cnMedusa™ technology enhances sector capacity by combining a smart beamforming antenna array with multiple RF transmit and receive chains, effectively multiplying available capacity by more than three times.
• Dramatically reduce the effect of interference with smart beamforming
• SFP port allows for greater deployment flexibility, and AUX port allows for connection of camera or other PoE directly.
SPECTRUM
Channel Spacing Configurable to 2.5 MHz channel spacing
Frequency Range 5150-5925 MHz
Channel Width 10 MHz*, 20 MHz, and 40 MHz*
RoW US EU DES only
C050045A101A C050045A102A C050045A103A C050045A104AIC C050045A105A
• Multi-User MIMO more effectively uses available
spectrum by simultaneous transmissions to multiple
subscribers, increasing spectral efficiency to more than
40 bps/Hz.
• Protect your investment in the 450 platform equipment by continuing to utilize existing Subscriber modules
(both 450 and 450i SMs work with the 450m and
cnMedusa technology).
| PRODUCT | DATA |
| Frequency Range | 5150-5925 MHz |
| Channel Width | 10 MHz*, 20 MHz, and 40 MHz* |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols Used | IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | HTTP, HTTPS, Telnet, FTP, SNMP v3 |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Subscriber Per Sector | Up to 238 |
| Latency | 10 ms, typical |
| GPS Synchronization | Yes, via Autosync (CMM5 or UGPS) |
| Quality of Service | Diffserv QoS |
| Antenna Beam Width | 90° integrated sector (dual polarity, H+V) |
| Antenna Gain | 17 dBi |
| Maximum Transmit Power | 24 dBm combined |
| Mean Time Between Failure |
|
| Environmental | IP67, IP66 |
| Temperature / Humidity | -40°C to +60°C (-40°F to +140°F), 0-95% non-condensing |
| Encryption | Approx. 14.2 kg (31 bs) |
| Power Consumption | 70 W typical, 80 W peak (up to 110 W max with AUX port PoE enabled) |
| Input Voltage | 42.5-59 V DC |
| Mounting | Pole mount with included brackets |
| Dimensions (HxWxD) 52 | 52 x 65 x 11 cm (20.3” x 25.7” x 4.4”) |
| Weight | Approx. 14.2 kg (31 bs) |
| Guaranty | 1 year |
