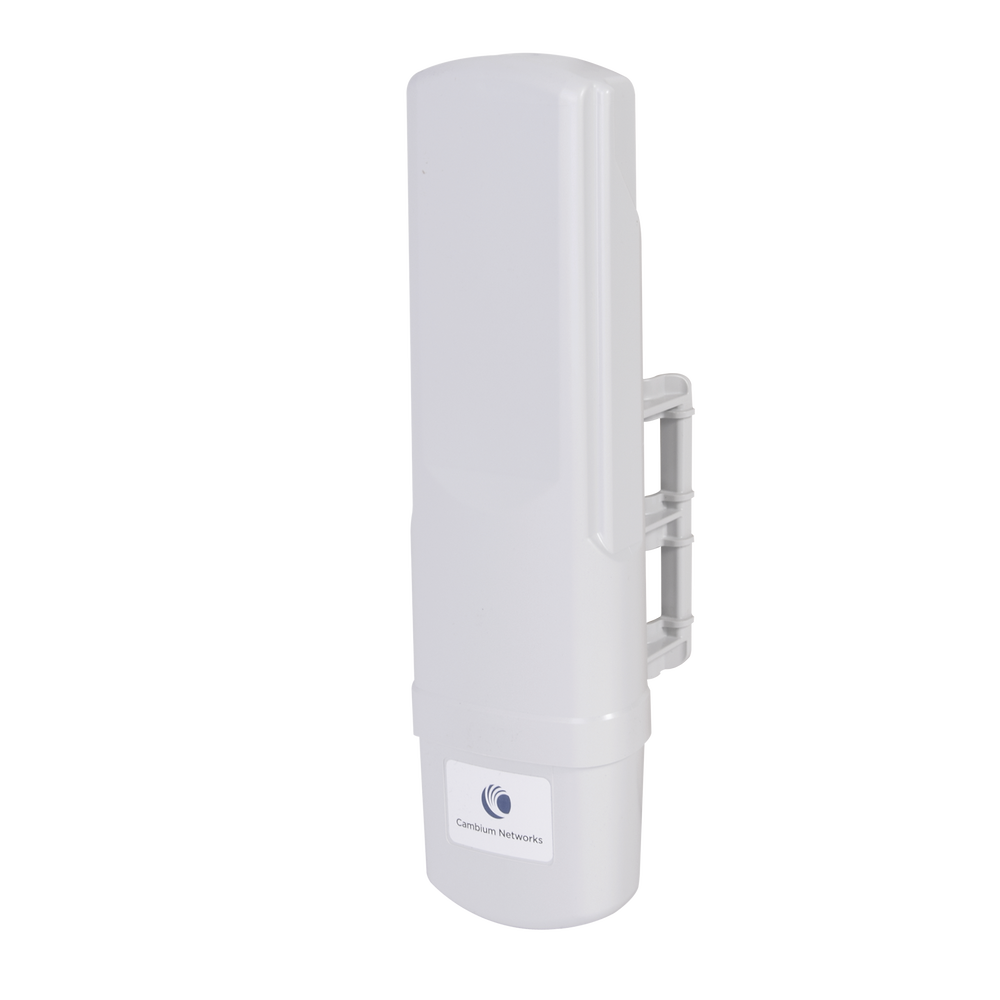

Now available in most popular global bands, 2.4, 3.5, 3.65 and 5 GHz, the PMP 450 Subscriber Module (SM) supports tiered service models. Software defined upgrades allow throughput from 4 Mbps to over 100 Mbps to improve revenue optimization.

• FREQUENCY RANGE: 3300 – 3600 MHz
• CHANNEL WIDTH: 5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz
• CHANNEL SPACING: Configurable to 50 KHz

Features:
• Frequency range: 5470 - 5875 MHz
• Channel width: 5 MHz, 10 MHz, 20 MHz or 30 MHz
• Channel spacing: Selectable on 2.5 MHz increments
• MAC (Media Access Control) layer: Cambium Networks proprietary
• Physical layer: 2x2 MIMO OFDM
• Ethernet interface: 10/100/BaseT, half/full duplex, rate auto negotiated (802.3 compliant)
• Protocols: IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, SNMP, HTTP, FTP
• Network management: HTTP, HTTPS, Telnet, FTP, SNMP v3
• VLAN: 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Modulation modes (Dynamic): Dual payload (higher throughput) MIMO-8 or Single Payload (polarity diversity) MIMO-A
• Maximum deployment range: Up to 40 miles
• Latency: 3 - 5 ms, typical
• Antenna beam width: 55º Azimuth, 55º Elevation (both polarizations)
• Antenna gain:
    -9 dBi H+V, Integrated Patch (5 GHz)
    -8 dBi Dual Slant, Integrated Patch (2.4 GHz, 3 GHz)
• Antenna connection: Integrated patch antenna, connectorized versions available
• Environmental: IP55
• Typical power consumption: 9 W (5 GHz and 2.4 GHz), 12 W (3 GHz)
• Max. power consumption: 12 W (5 GHz and 2.4 GHz), 15 W (3 GHz)
• Input voltage: 20 to 32 V
• Temperature: -40 to 140 ºF, 0 - 95% non-condesnsing
• Dimensions: 11.75 x 3.4 x 3.4”
• Weight: 1lb
