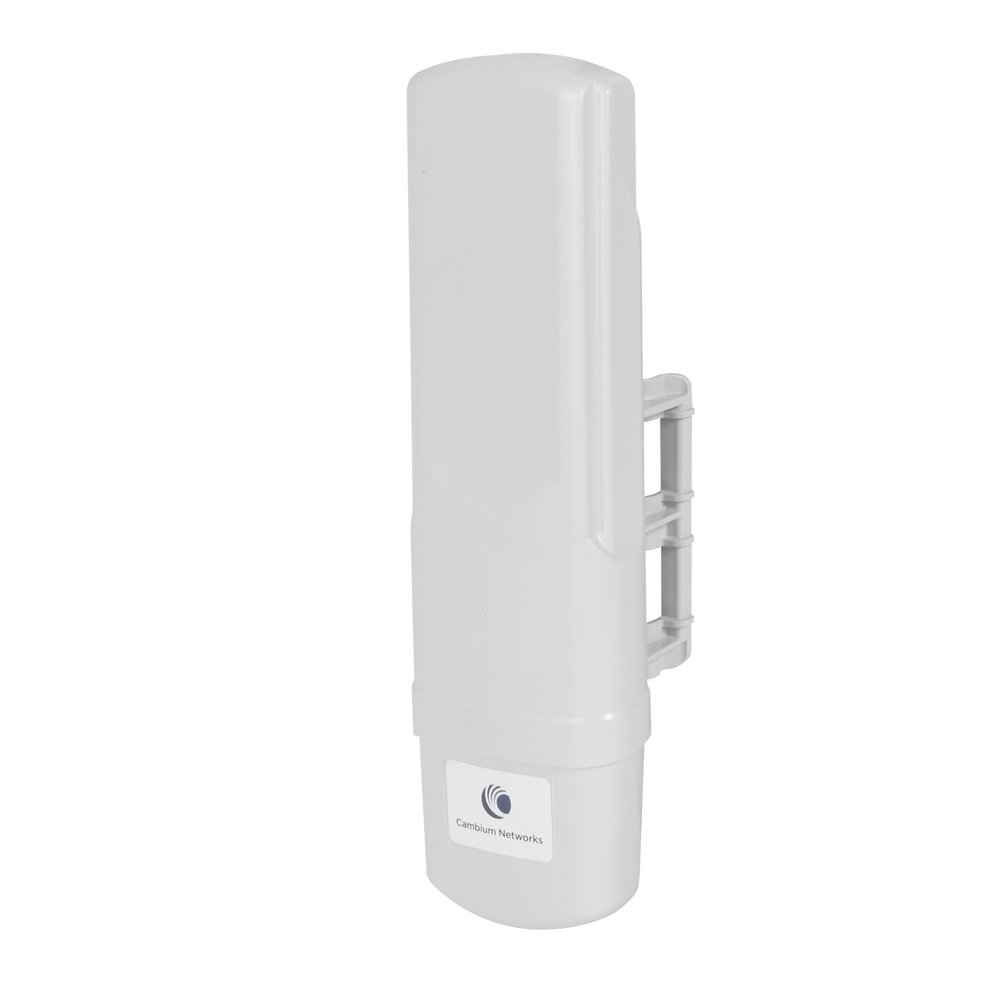

(C054045C004) - Serie PMP 450 - Suscriptor Punto - Multipunto para banda libre de 55 Mbps con antena integrada de 9 dBi



SPECTRUM

FREQUENCY RANGE: 5470 to 5875 MHz and 2400 to 2483.5 MHz
CHANNNEL WIDTH: 5, 10 or 20 MHz
CHANNEL SPACING: Selectable on 2.5 MHz increments



INTERFACE​

MAC (MEDIA ACCESS CONTROL) LAYER: Cambium Networks proprietary
PHYSICAL LAYER: 2x2 MIMO OFDM
ETHERNET INTERFACE: 10/100/BaseT, half/full duplex, rate auto negotiated (802.3 compliant)
PROTOCOLS USED: IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
NETWORK MANAGEMENT: HTTP, HTTPS, Telnet, FTP, SNMP v3
VLAN: 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID



PERFORMANCE​

ARQ: YES
MODULATION LEVELS (ADAPTIVE)                 MODULATION
                                                         2X:                      QPSK
                                                         4X:                    16-QAM
                                                         6X:                    64-QAM
                                                         8X:                   256-QAM
MODULATION MODES (DYNAMIC): Dual Payload (higher throughput) MIMO-8 or Single Payload (polarity diversity) MIMO-A
MAXIMUM DEPLOYMENT RANGE: Up to 40 miles
LATENCY: 3 - 5 ms, typical
GPS SYNCHRONIZATION: Yes, via Autosync (CMM3, CMM4, uGPS, iGPS)
QUALITY OF SERVICE: Diffserv QoS



LINK BUDGET

ANTENNA BEAM WIDTH: 55° Azimuth, 55° Elevation (both polarizations)
ANTENNA GAIN: 9 dBi H+V, Integrated Patch (5 GHz)
                            8 dBi Dual Slant, Integrated Patch (2.4 GHz, 3 GHz)
TRANSMIT POWER RANGE: -30 TO +22 dBm (combined, to EIRP limit by region) (1 dB interval) (+25 dBm FOR 3 GHz)
MAXIMUM TRANSMIT POWER: +22 dBm combined (+25 dBm combined for 3 GHz)
REFLECTOR GAIN: +16 dBi for 5 GHz, +12 dBi for 2.4 GHz and 3 GHz
CLIP GAIN: +8 dBi (with CLIP (Cassegrain Lens for Improved Performance), for 5 GHz only)



PHYSICAL

ANTENNA CONNECTION: Integrated patch antenna, connectorized versions available
SURGE SUPPRESSION: IEC 61000-4-2 (ESD) 15kV (AIR), 8kV (contact)
                                      IEC 61000-4-4 (EFT) 40A (5/50 ns)
                                      IEC 61000-4-5 (LIGHTNING) 100A (8/20 ms )
MEAN TIME BETWEEN FAILURE: > 40 Years
ENVIRONMENTAL: IP55
TEMPERATURE: -40°C TO +60°C (-40°F TO 140°F), 0-95% non-condesnsing
WEIGHT: 0.45 kg (1 lb.)
DIMENSIONS: (HxWxD) 30 x 9 x 9 cm (11.75” x 3.4” x 3.4”)
TYPICAL POWER CONSUMPTION: 9 W (5 GHz AND 2.4 GHz), 12 W (3 GHz)
MAXIMUM POWER CONSUMPTION: 12 W (5 GHz AND 2.4 GHz), 15 W (3 GHz)
INPUT VOLTAGE: 20 TO 32 V



SECURITY

ENCRYPTION: 56-bit DES, FIPS-197 128-bit AES



CERTIFICATIONS

INDUSTRY CANADA: 109W-0001 (5.4, 5.8 GHz)
                                109W-0003 (2.4 GHz)
                                109W-0007 (3.5 GHZ)
                                109W-0009 (3.65 GHz)
FCC ID: Z8H89FT0001 (5.4, 5.8 GHz)
            Z8H89FT0003 (2.4 GHz)
            Z8H89FT0009 (3.65 GHz)
CE: EN 301 893 V1.7.1 (5.4 GHz)
       EN 302 502 V1.2.1 (5.8 GHz)
       EN 302 326-2 V1.2.2 (3 GHz)
       EN 302 326-3 V1.3.1 (3 GHz)
• 160 mW.
• 55 Mbps REAL
• 5.470-5.850 GHz.
• TDD (Time Division Duplex).
• Protection Grade IP-55.
• Physical Layer 2x2 MIMO
• Channel Width 10/20 MHz.
• QoS (802.1p, 8 niveles), VLAN (802.1ad Q-in-Q, 802.1Q with priority 802.1p).
• Modulation Levels QPSK
• OperatingTemperature -40 a 60 °C.
• Encryption 56 bits DES, FIPS 197, 128 bits AES (optional).
• Power PoE 24 @ 30 Vcc (PoE required); Max. Consumption: 12 W
