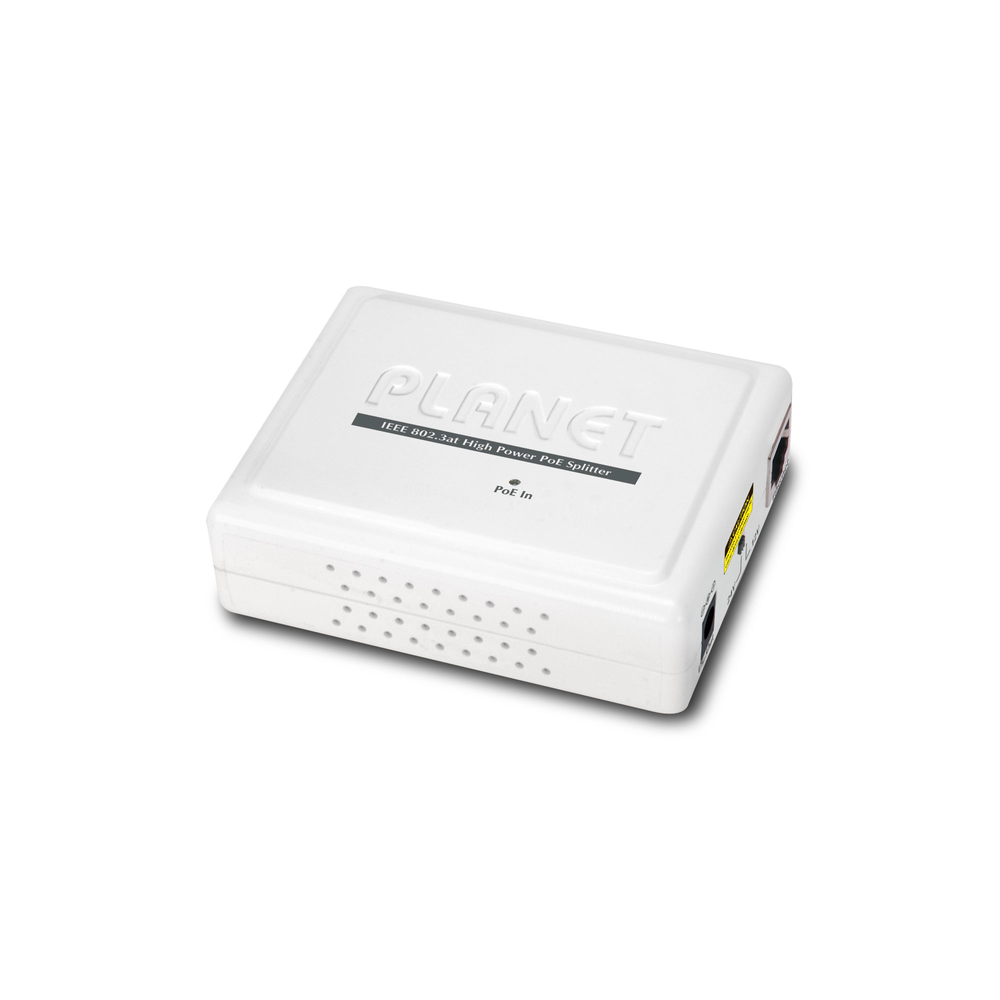

Divisor de voltaje PoE 802.3at a 12/24vcd Gigabit 10/100/1000 Mbps

PLANET IEEE POE-162S 802.3at Gigabit Power over Ethernet Plus Splitter complies with IEEE 802.3at Power over Ethernet Plus standard that supports a maximum of 25.5 watts of input power. The POE-162S provides the following key features:

　　■ IEEE 802.3at Power over Ethernet Plus standard compliant
　　■ 12V/24V DC power output through DIP switch
　　■ Passive 10/100/1000BASE-T speed duplex mode
　　■ Quick and easy high power PoE Plus network deployment

The POE-162S can split the 52~56V DC power over the Ethernet cable into selectable 12V or 24V DC power output. It is designed specifically to fulfill the demand of higher power required network equipment, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome cameras, color touch-screen/Video and Voice over IP (VoIP) telephones, multi-channel (11a/ac/b/g/n) wireless LAN access points and other network devices that need higher power to work normally but can’t be satisfied with IEEE 802.3af PoE standard. The POE-162S IEEE 802.3at Gigabit Power over Ethernet Plus Splitter is an ideal solution that enables network device with high power consumption to be powered directly via the RJ45  interface without the need of power outlets and electrical cabling.

Quick and Easy 802.3at PoE Plus Network Deployment

The POE-162S can work with the IEEE 802.3at PoE Plus injector devices like the POE-161/POE-163/POE-164, IEEE 802.3at PoE Plus Switch and Media Converter to transfer data and power simultaneously to the end device. The IEEE 802.3at Power over Ethernet Plus complied PoE Switch, PoE Injector and PoE Media Converter can combine the Ethernet digital data with power over the twisted pair cables as an IEEE 802.3at Power over Ethernet Plus injector. Then, the POE-162S separates the digital data and the power into 12V/24V DC power outputs. The maximum distance between the IEEE 802.3at Power over Ethernet Plus injector devices and the splitter (POE-162S) is 100 meters, and the POE-162S also supports passive 10/100/1000Mbps Ethernet connection ability.

With IEEE 802.3at Power over Ethernet Plus injector devices installed, the system administrator only has to use one single RJ45 Ethernet cable to carry both power and data to each powered device. Besides, by connecting the IEEE 802.3at Power over Ethernet Plus injector devices to the POE-162S, you could also have benefits including cost saving, easier networking planning and higher reliability. When IEEE 802.3at compliant devices are installed, the IEEE 802.3at Power over Ethernet Plus injector devices working together with the POE-162S can make the connection while migrating or splitting the power and the Ethernet digital packets.

Interface
• 2-Port RJ-45 interfaces
–1-Port PoE Power+ Data input
–1-Port Data output
• 1 DC output plug connector

PoE
• Complies with IEEE 802.3at Power over Ethernet PD
• Splits the 52 ~ 56V DC power over RJ-45 Ethernet cable into DC 12V / 24V output
• Up to 1 non-IEEE 802.3at device can be powered
• Auto-detects of PoE IEEE 802.3at equipment and protects devices from being damaged by incorrect installation
• Adjustable two different output voltage options (12V / 2A, 24V / 1A) to fit various devices
• Distance up to 100 meters
