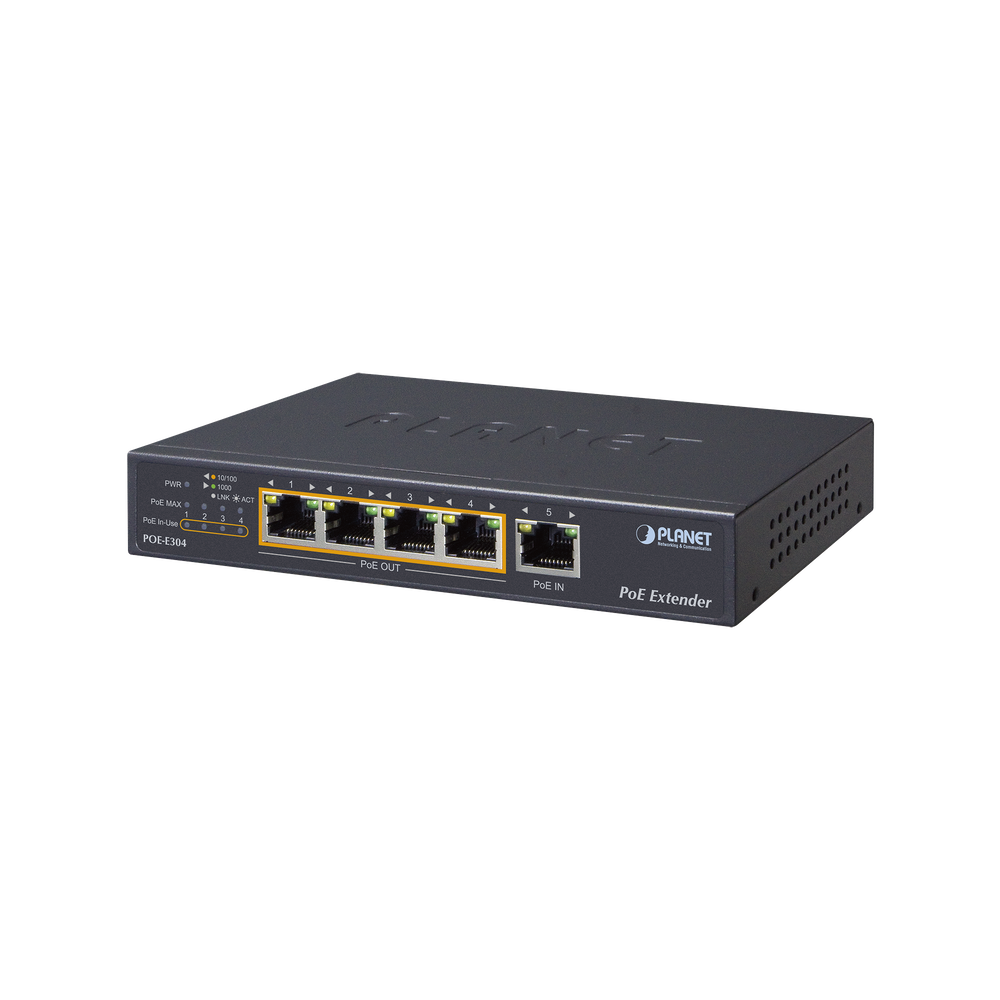

Extensor Ultra PoE 60 Watts a 4 Puertos output 802.3af/at
Extensor Ultra PoE 60 Watts a 4 Puertos output 802.3af/at
Extensor Ultra PoE 60 Watts a 4 Puertos output 802.3af/at

Extensor Ultra PoE 60 Watts a 4 Puertos output 802.3af/at

$0.00
Marca:
Código del producto: POE-E304
Disponibilidad: ¡Agotado!

Descripción del producto

PoE Solution for Breaking RJ45 100m Limitation
PLANET POE-E304 is a 1-port 60W Ultra PoE to 4-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE applications. The POE-E304 can obtain a maximum of 60-watt PoE power from Ultra PoE input port and supplies a maximum of 55-watt PoE power budget for four PoE output ports, extending both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to two 200m powered devices at the same time.

The POE-E304 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.



Physical Specifications
Network PortsPoE In Port
1 x 10/100/1000BASE-T Ethernet with Ultra PoE “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector

PoE Out Port
4 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector
Negotiation10/100/1000Mbps
SwitchStore-and-Forward
MAC Address table2K
Data Buffer2Mbits
Switch Fabric10Gbps
Switch Throughput7.44Mpps @ 64 bytes
Jumbo Frame9K
Flow ControlIEEE 802.3x pause frame for full-duplex
Backpressure for half-duplex
LED IndicatorsPoE In Port
10/100 LNK/ACT (Orange), 1000 LNK/ACT (Green)
PoE Out Port 1 to Port 4
10/100 LNK/ACT (Orange), 1000 LNK/ACT (Green)
PoE-in-Use (Orange)
PoE Max. (Orange)
ProtectionESD (Ethernet): 6KV
Surge (EFT for power): 2KV
EnclosureMetal
InstallationDesktop/Wall mountable
Dimensions (W x D x H)160 x 92.5 x 28 mm
Weight370g
Energy RequirementsPoE In: IEEE 802.3bt or 4-pair 802.3at PoE+ compliant with voltage within 50V-56V DC
External DC: 50~56V DC
Energy consumption4 watts/13.7BTU (System on with PoE input)
6 watts/20.6BTU (Ethernet full loading without PoE function)
60 watts/205.9BTU (Full loading with PoE function)
Cabling10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
1000BASE-T: 4-pair UTP Cat5e, 6, up to 100m (328ft)
EIA/TIA-568 100-ohm STP (100m, 328ft)
Power over Ethernet
PoEPoE In Port
Ultra Power over Ethernet end-span/mid-span PD class 4 PD
Per PoE Out Port
IEEE 802.3at Power over Ethernet Plus end-span PSE
IEEE 802.3af Power over Ethernet end-span PSE
PoE powerPoE In Port
50~56V DC, max. 60 watts
Per PoE Out Port
44~55V DC, max. 30.8 watts
Pin configurationPoE In Port
1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2(-), 3/6(+); 4/5(+), 7/8(-)
Per PoE Out Port
1/2 (+), 3/6 (-), end-span (Type A)
PoE Power Budget50 watts (max.) @ Ultra PoE input
20 watts (max.) @ IEEE 802.3at PoE+ input
Standard Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standard ComplianceIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3x Flow Control
Environment
OperationTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
