Kit adaptador Power over Ethernet

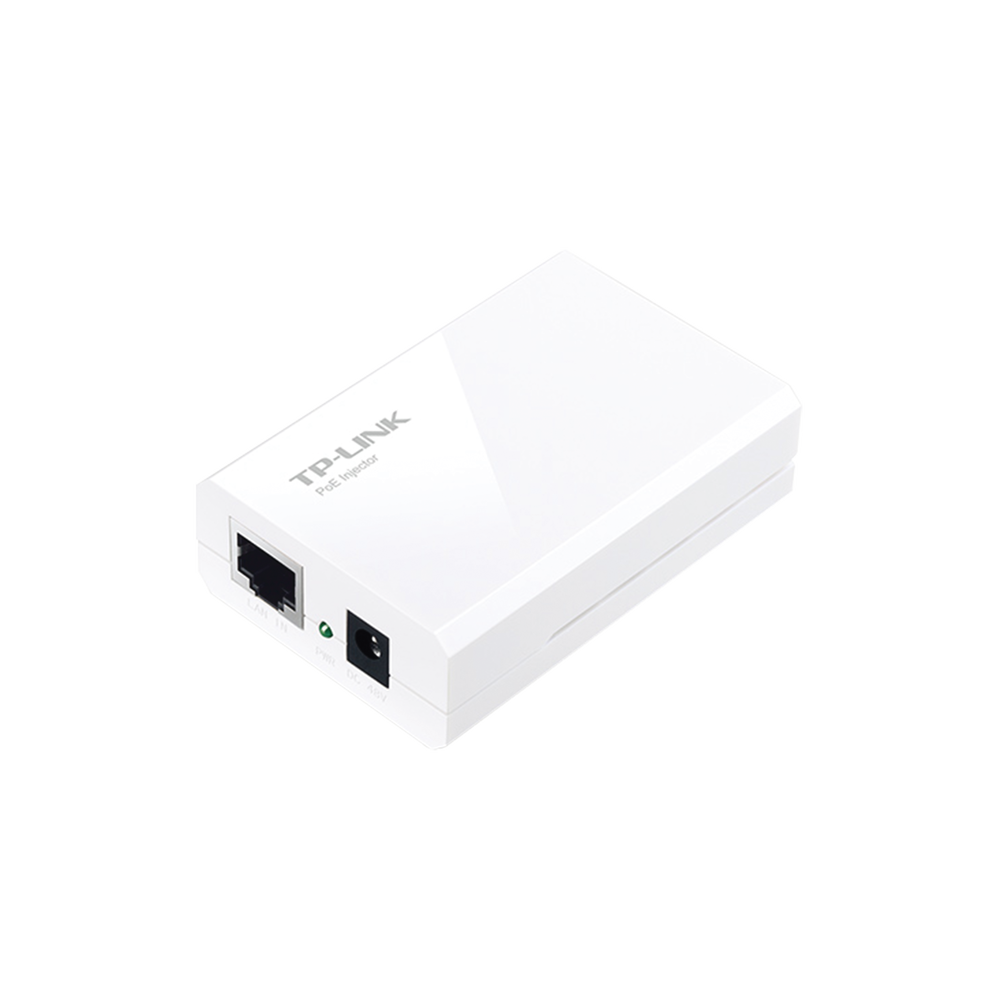

The TL-POE200 is designed to deliver power and data over a single Ethernet cable to an Ethernet enabled device up to 100m away. The PoE kit uses two devices, one, the ´injector´ injects power and data into a single Ethernet cable while the other, the ´splitter´ placed at the receiving end splits the power and data back into two cables to be used by the connected Ethernet device. This convenience allows users to place Ethernet enabled devices such as access points, IP cameras, or VoIP phones anywhere that they are best suited, regardless of whether a power socket is available, to achieve the best performance for the connected devices.

Features:
Carries power & data over a single Ethernet cable up to 100 meters away
Selectable power output
Plug-and-Play, requires no configuration
Dimensions ( W x D x H ): 3.2 x 2.1 x 0.9 in.

Specs:

Interface
For POE200A：

• 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 LAN port
• 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 PSE port
• 1 48VDC power input port

For POE200B:

• 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 LAN port
• 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 PD port
• 1 12/9/5VDC power output port

LED Indicator: PWR

System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Power Supply Unit of PoE Injector:

• Input: 100~240VAC
• Output: 48V, 0.5A Switching PSU

Output Power For PoE Splitter: 12/9/5VDC

Environment:

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
