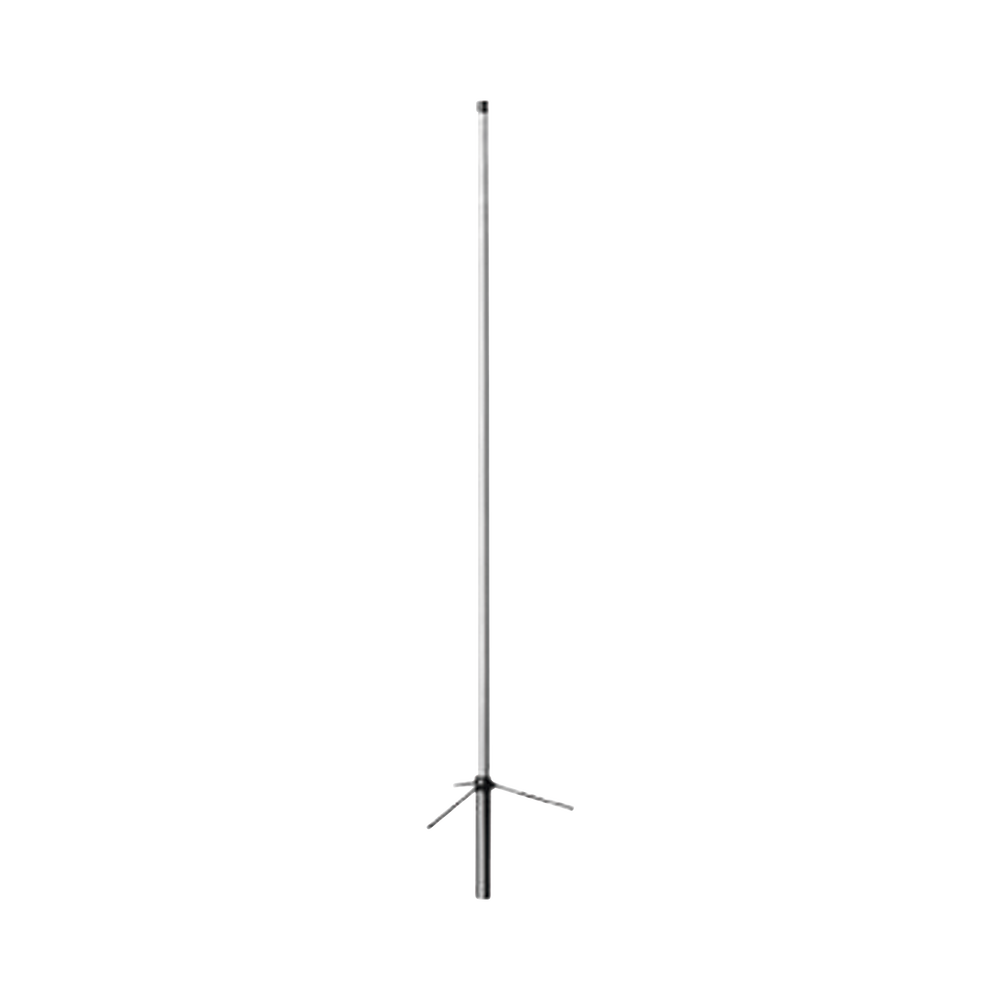

Antena base UHF, fibra de vidrio ajustable, rango de frecuencia 430 - 490 MHz

The antennas of the TXAB series, base station are a performance icon.Its low profile against the wind makes them an ideal option in problematic locations with a large population of antennas, making them the best option due to their excellent performance.

Its electrical design provides a low angle of radiation and a stable pattern.

Combining these characteristics with its low cost, a complete package is obtained: QUALITY, PERFORMANCE, AND PRICE.

-Frequency range: 430-490 MHz
-Gain: 6.5 dB
-Bandwidth: 10 MHz
-Power: 200 Watts
-Connector: UHF Female
-Length: 5 ft.
-Wind resistance: 120 mph

FEATURES

• High performance 200 Watts power rating, low SWR & Broad Banded.
• There is a spetial design of the joint bracket to connect fiber glass tubing that enables the antenna to maintain the same strength as one.
• The radiator and coil are ermetically sealed in fiver glass tubing to assure low SWR in all weather.
• DC ground construction allowes static disipation for low noise ratio and maximum lightning protection
• Vertical polarization with 50 Ω impedance.
• Mast diameter acepted is from 1 3/16" (30 mm) to 2 7/16" (62 mm).
• UHF (SO-239) connector.
• Poly bag with header card, UPC coded.
