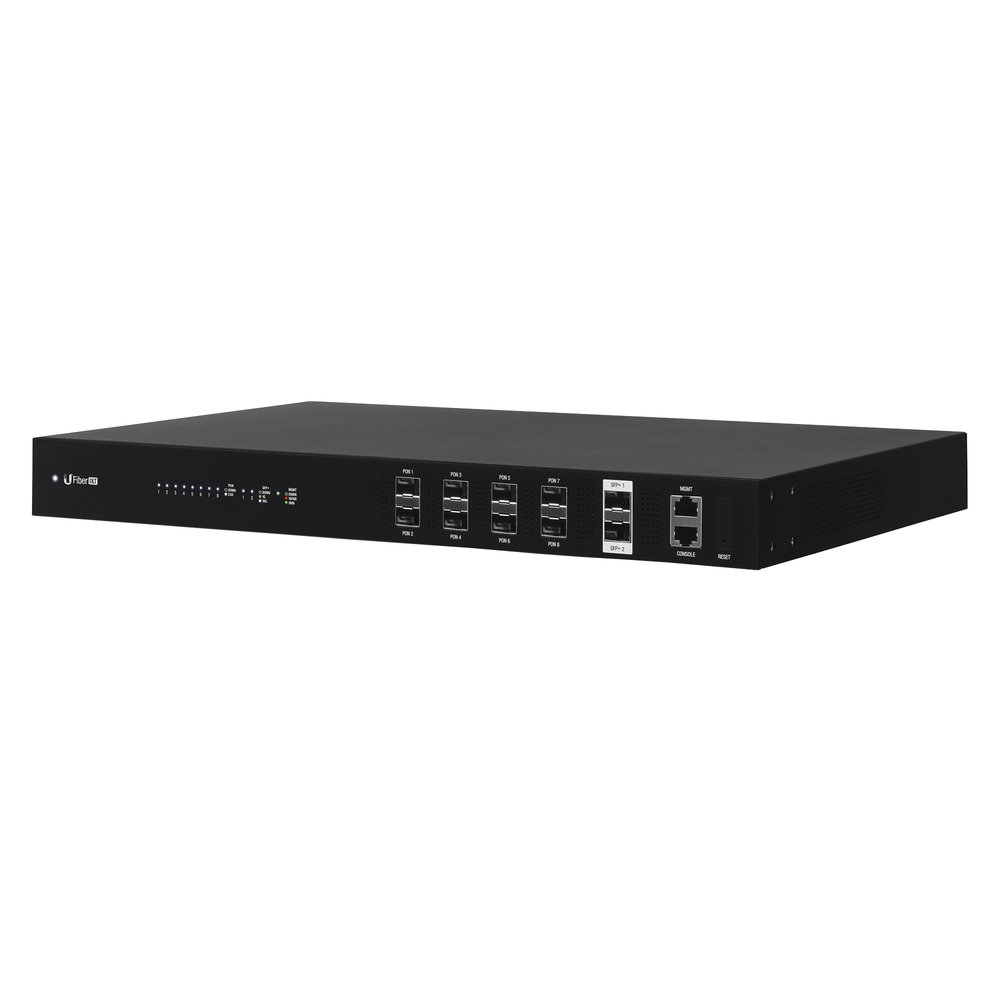

Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines, manuals, and paid support licenses. Introducing the UFiber OLT – a fiber solution that anyone can deploy.

Ports:

8 x GPON SFP ports.

2 x SFP+ 10GB ports.

Management:

UNMS™ (Ubiquiti Network Management System).

Key features:

High performance.

Up to 1024 concurrent clients.

links of up to 12.42 miles (20 km).

Delivery system for Triple Play Services (data, voice, IPTV/VoD).

Speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream.

No Licensing or Usage Fees.

Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)

Power Method:

100-240VAC, 100W AC/DC Power Module (Included).

38-54VDC, 100W DC/DC  Power Module (Optional).

Physical specifications:

Dimensions: 3.46" x 9.06" x 1.57" (88 x 230 x 40 mm).

Weight: 9.7 lb (4.40 kg).

Environmental specifications:

Operating temperature range: 14 to 113° F (-10 to 40° C).

Package contents:

100-240VAC, 100W AC/DC Model: RPS-AC-100W.

Rackmount kit.

Warranty:

1 year.

Centralized Management.

Easily configure the OLT and manage multiple sites using the comprehensive UNMS™ (Ubiquiti® Network Management System) software.Configure fácilmente la OLT y administre múltiples sitios con el completo software UNMS ™ (Ubiquiti® Network Management System).

Client and Uplink Connectivity.

The OLT features eight PON ports to connect up to 1024 Nano G devices, and two SFP+ ports deliver up to 20 Gbps of uplink connectivity.

Power Versatility.

Featuring low power consumption, the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module, either an AC/DC backup or a DC/DC power module.

Rackmount Design.

The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack.
