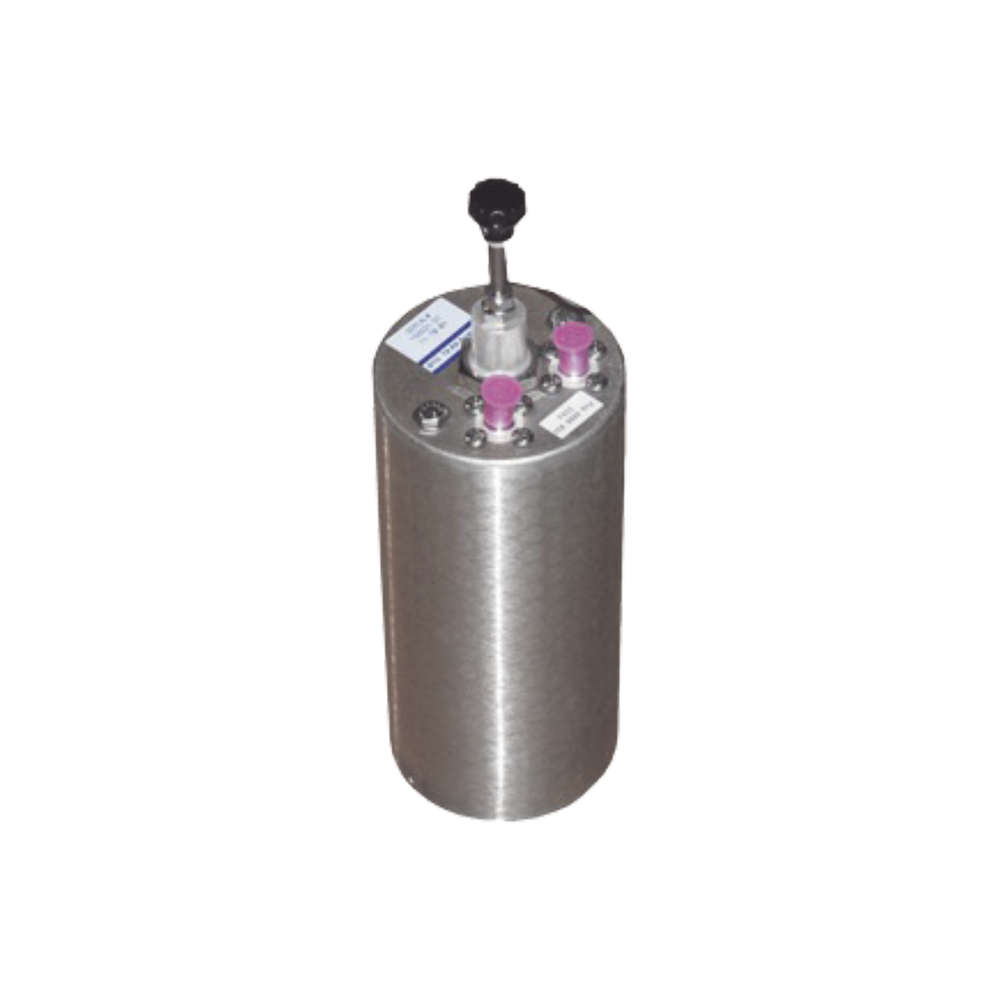

Cavidad Pasa-Banda, 806-960 MHz, 50 Ohm, 4" Diam. x 6.5" Alto, 1/4 Onda, 100 Watt, BNC Hembra.

     UHF Cavity filter for 806-960 MHz, 100 Watt, BNC Female.

• Bandpass Cavity Filter passes one narrow band of frequencies and attenuates all others with increasing attenuation above and below the pass frequency.
• It is equivalent to a parallel-tuned circuit and is most often used for general transmitter spurious clean-up or a sharpening of a single receiver front end selectivity with or without amplification.
• TX RX bandpass cavities (4", 6", 8” and 10") have adjustable selectivity characteristics (rotatable loops) to allow a trade-off between insertion loss (0.5-3.0 dB) and selectivity.
• Maximum power handling is typically determined by insertion loss setting.
• Various Low-Loss High-Rejection Models to choose from.
• All Loop Plate/connector assemblies are silver-or Alballoy®-plated for low IM.
• Welded cavity construction and silver-plated tunable probe and loops give superior pass and reject characteristics.

     Specifications:

• Frequency Range: 450-470 MHz.
• Maximum power per cavity: 100 Watt.
• Impedance: 50 Ohm.
• VSWR: 1.25: 1
• Cavity Length (Electric): 1/4 Wave.
• Temperature Range: -30 ºC to + 60 ºC.
• Dimension of the cavity: 4"(101.6 mm) diameter.
• Connectors: BNC Female.
• Shipping Weight: 4 lbs (1.8 kgs).

     *Ask for delivery time.
