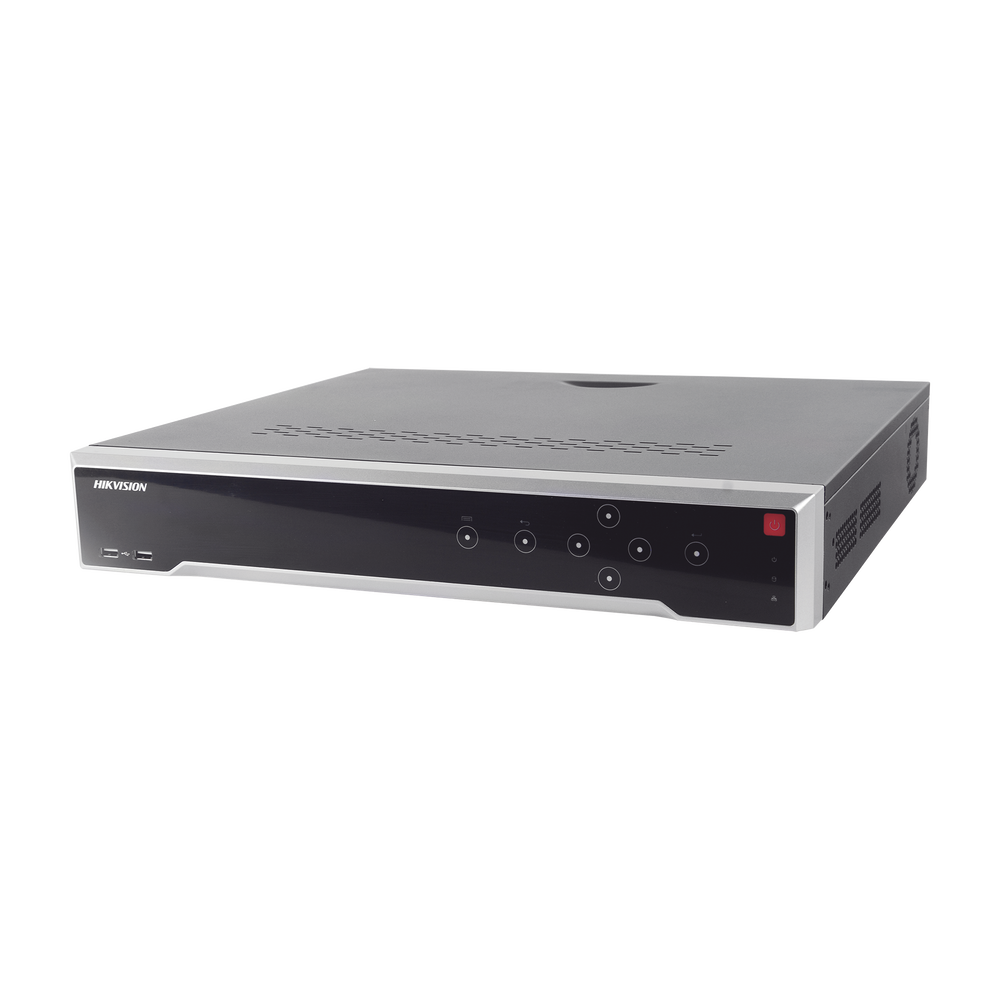

NVR 12 Megapixel (4K) / 32 Canales IP / 24 Puertos PoE+ / Switch PoE 300 mts / HDMI en 4K / Soporta POS

• Supports compression H.265+ / H.265 / H.264+ / H.264.
• Record up to  12 Megapixel per channel.
• 24 PoE+ ports ( 210 watts total).
• PoE ports support standard IEEE 802.3 af / at (each port can supply up to 30 watts).
• Supports internal 4 HDD`s up to 8 TB (32 TB in total).
• Supports DDNS (hik-Connect / DynDNS / No-IP).
• Supports Hik-Connect P2P.
• Remote access (app): Android / iOS / iPAD.
• Compatible with browsers IE / Safari / Chrome (ietab).
• Compatible with the software iVMS-4200 (free).
• Compatible with multiple brands: AXIS / ONVIF / PANASONIC / PSIA / SAMSUNG / ACTi / SANYO / ZAVIO / VIVOTEK.

Recording Resolution per Channel (recommended with H.265):

• 1 Megapixel: 32 [email protected]
• 2 Megapixel: 32 [email protected]
• 5 Megapixel: 32 [email protected]
• 8 Megapixel (4K): 30 [email protected]
• Sync playback on channels: 16 Channels.

• Dimensions: 445 × 400 × 71 mm.
• Power supply: 100 to 240 Vac / 20 W.
• Operating temperature: -10°C ~ 55°C.
• Weight: 5 Kg without HDD.
• Warranty: 2 years.

Processing Capacity and Network Functions:

• Input processing (Throughput): 320 Mbps.
• Output processing (Throughput): 256 Mbps.
• Allows to record 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / 720p.
• It supports extended mode for distances of up to 300 meters per port (compatible with certain fixed camera models, does not support PTZ).
• 1 port LAN Gigabit for management.

Interfaces Inputs / Outputs:

• HDMI output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.
• VGA output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.
• Independent output HDMI and VGA.
• Audio input: 1 Channel.
• Audio output: 1 Channel.
• Alarm input: 16.
• Alarm output: 4.
• Supports bi-directional audio (two-way audio).
• External recording: iSCSI and NFS (SYNOLOGY) / up to 64 TB.
• Supports for e-SATA: N/A.
• Disk arrangement: N/A.

Recording and Display Functions:

• Multizone movement detection.
• Digital zoom in playback and recording.
• Dual stream (mainstream and sub-stream).
• Supports fast forward, slow, frame by frame, etc.
• Supports hard drive technology S.M.A.R.T.
• It supports multiple types of recording, including real-time, manual recording, video sensor, video sensor and alarm, video sensor or alarm.
• Support cyclic recording (overwriting) and non-cyclic.
