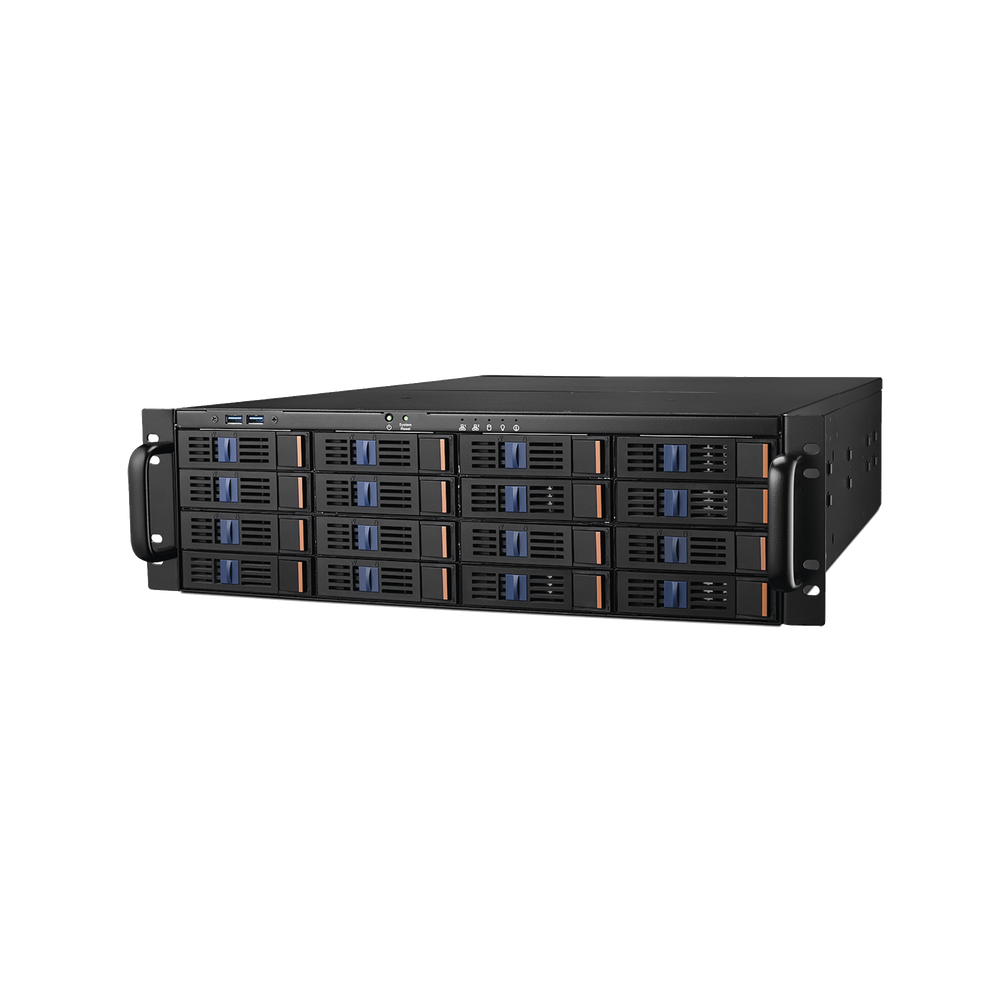

NVR Crystal de 3U de rack, Fuente Redundante, escalable hasta 256 canales. (no incluye licencias)

Specifications:

• Cabinet: 3U (Rack).
• Number of channels: 0 Expandible to 256with adquisition oh the corresponding license*.
• Video compression: H.265, H.264, MPEG4, MJPEG (Depending of the IP camera).
• Recording performance (Total bitrate): 1024mbps.
• Number of Hard Drives: 16x SATA III.
• Maximum hard drive capacity: 10TB hard drives.
• Hot Swappable: Yes.
• RAID level: 0, 1, 5, 6, 10.
• Interface I/O: 2x USB 3.0, 2x USB 2.0, 1x eSATA (for DAS).
• External storage: DAS (AXUS FiT 300 / AXUS FiT 500 / PROWARE EP-2123-UA) *.
• Network card: 2 Ports RJ45 (10/100/1000 Mbps.
• Video output: N/A.
• Voltage: 100-240 V.
• Consumption: 550 W.
• Redundant power supply: Yes.
• Dimensions: 135x 435 x 620mm.
• Weight (without hard drive): 19 kg.
• Operating temperature: 0 ~ 35ºC.

Minimal requirements of the Client PC
• Operative system: MAC Version 10.6 and superior/ Windows7 (32 and 64 bits) / Windows XP (32 bits).
• CPU: Intel CORE 2 Duo, 2.6 GHz.
• RAM: 2 GB.
•Video card: nVidia/ATI 1 GB or Superior.
• Netword port: 100/1000 Mbps (RJ45).
• Remote client: NuClient Software / NuClient WEB (Internet Explorer 8.0, Firefox 7.0 or Superior/NUUO iViewer (iPad, iPhone and Android)

Highlights of the Server

• The centralized administration to manage an unlimited number of devices and events in unified NuClient.
• System based in Linux
• Administration server, recording server and metadata server only built-in NUUO Crystal™
• Metadata server for integration for 3rd parties - POS, Access Control
• The open platform supports multiple camera brands, models and stream RTSP.
  * Consult http://www.nuuo.com/SupportCamera.php?node_id=4#1
• Compatible with Onvif ProfileS
• Recording up to 64 cameras megapixels with recording server
• High performace (250 ~ 550 Mbps) that supports 64x cameras of 5 megapixels (based in H.264 , 10 fps, moderated traffic)
• Volume group to distribute cameras between assigned volumes
• Independent retention condition (IRC) per device
• Registration in based of events and schedules.
• Supports RAID 0,1, 5, and 10
• Supports multiple camera stream
  * Consult http://www.nuuo.com/SupportCamera.php?node_id=4#1
• Transmitted up to 256ch connections of live visualization per server to various clients at the same time
• Movement detection embed in the camera
• Supports continuous recording, programmed, based in events and in E / S
• Audio recording and sincronized video
• Double Ethernet Gigabit Port
• Centralized systems of E / S and event responses
• Priority PTZ control
• Powerful authorization for device permits and function privileges
• User managed programming
• Programmed security copy to FTP server
• Supports multiple codec : H.264,MJPEG, MPEG4 and MxPEG
• Watermark for the video verification
• Supports NTP (Network Time Control)
• Supports hardware guardian (CT-8000R and CT-8000RP) and of software
• Supports redundant power supply (CT-8000RP)

Client Highlights

• Compatible with Windows and Mac
• Remote configuration and visualization all in one NuClient
• Unlimited channels for live visualization and reproduction
• Unlimited channels for NuMatrix Video Wall (Ultimate)
• Centralized E-map
• E/S panels and centralized events
• Image fusion technology – up to 10 cameras
• Generic Fisheye Dewarp technology fo all the fish eye cameras
• PTZ Panoramic of 360° ─ ImmerVision and fish eye Vivotek
• Supports digital PTZ and optic
• Supports predetermined point and patrol
• Supports profile of multiple streams
• Automatic and simultaneous profile change
• Public and private view / profile of up to for each user
• View tour to travel selection views
• Instant reproduction in live visualization , e-map and event views
• Smart view in reproduction
• Save video clips in formats AVI , ASF and MOV
• Video exportation with third party data in AVI and ASF
• Twin clients that supports identical interface with complete functions complete with software client and web client.
