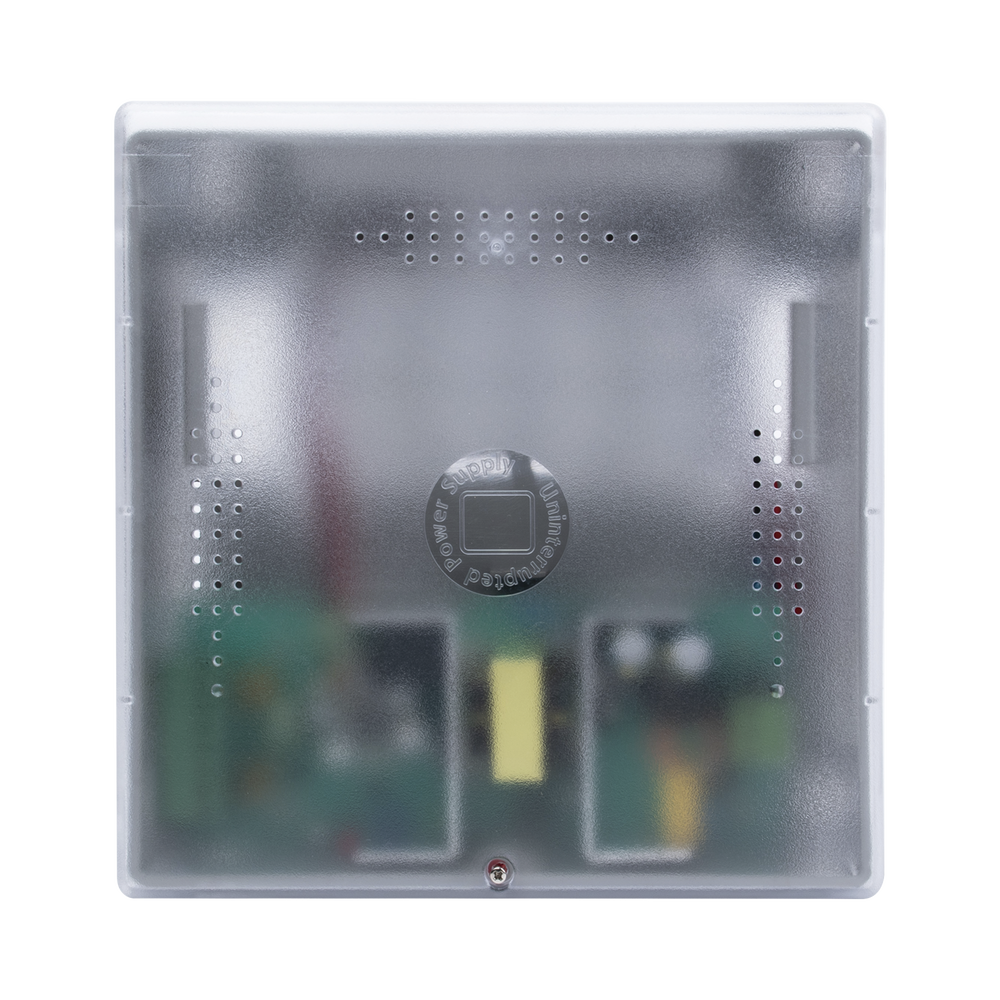

Fuente de alimentación de 11-15 Vcc @ 5 Amper, con gabinete plástico, voltaje de entrada: 96-264 Vca / Con capacidad de Batería de Respaldo

Introduction:

Conversion efficiency of this model is more than 85%, with output over-current protection, short circuit protection, with constant output voltage and etc.

Working Principle:

Under AC 100-240V, power for the load and battery are provided by electric supply. Then led light is green. When power failure is provided by the battery voltage to the load, then led light being red, entered the stage of storage battery voltage monitoring at the same time. When detect the battery voltage drops to 10.5 V, the circuit will cut off the load, no longer to load the power supply in order to prevent the battery discharged, thus protecting the lifespan of the battery, the system will automatically reset when mains power returned to normal and ready to be prepared for the next time.

Features:

With Battery Optional Capacity
Input voltage: 96-264Vac 47-63Hz
Input current: 1.5A Max
Output voltage: 11-15VDC
Output current: 5A Max
Output power: 60W
Output ripple: 120mV
Operating temperature: -20~45°C
Operating humidity: 20%~90%RH, No condensation
Size: L187mm*W193mm*H90mm

- 1 Year Warranty
