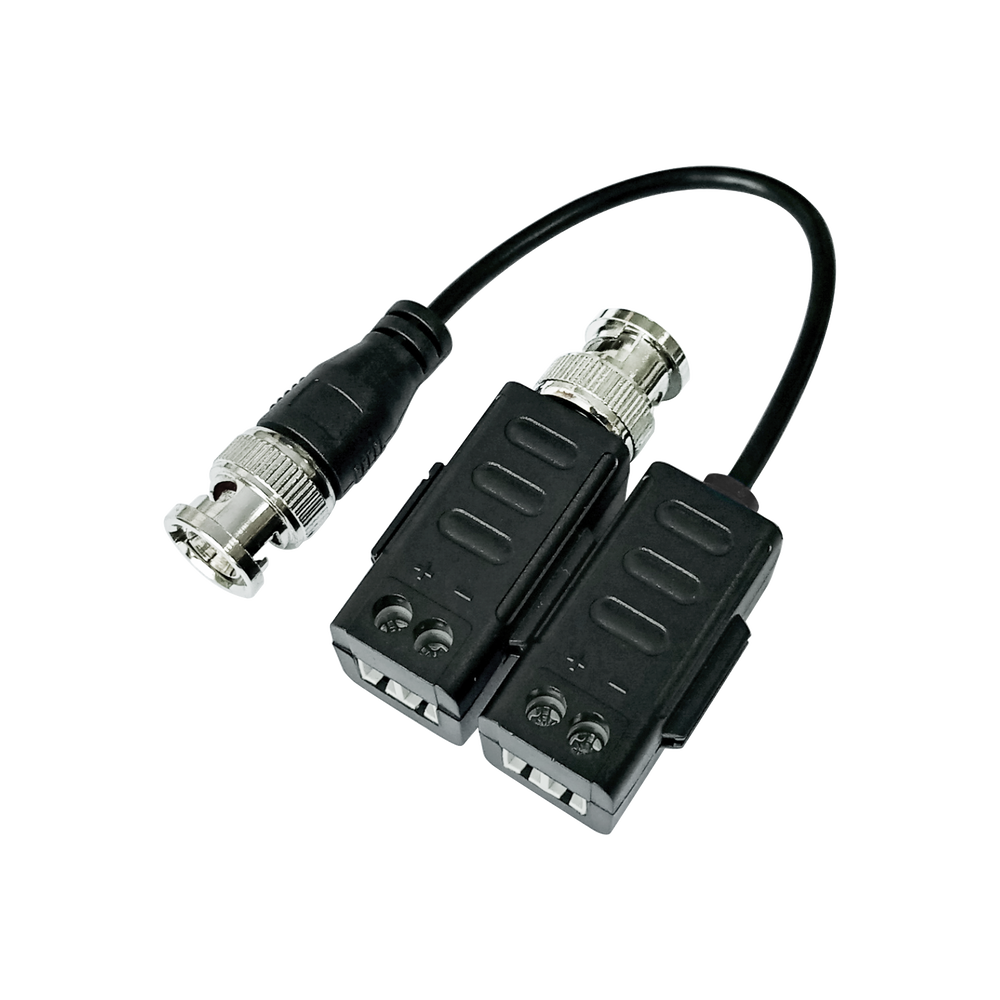

Kit de Transceptores (Baluns) con terminales tipo tornillo, TurboHD Hasta 4K / 5 MP / HD-TVI/HD-CVI/AHD/CVBS / Conector 100% COBRE / Con Cable RF Blindado

TurboHD or HD-TVI is a protocol for high-definition video for video surveillance.
 SYSCOM TurboHD name it, we use the HD-TVI Techpoint in California, USA chip.

The TurboHD line is intermediate between analog and IP, IP has quality but at prices
 an analog system.


The TT101FTURBO allows analog signals (CVBS) up to 4K TURBO HD signals. All using the same infrastructure.

 Applications:

• Systems CCTV monitoring and recording

Features:

• TurboHD
• Real time transmission cable UTP cat 5e / 6
• No power required
• Compatible video formats NTSC, PAL, SECAM
• Compatible with analogous cameras: HD-TVI, HD-CVI, and AHD
• Transmission of 250 meters (820 ft) from CVBS to 5MP
• Transmission of 200 meters (656 ft) with 4K
• BNC male connectors
• Pin type terminals for UTP
• Interconstructed Surge Protection
• Wave filter design antistatic
• Noise Immunity 60 dB
• Impedance 75 Ω
• Color: Black
• Dimensions: 1.38 x 0.65 x 0.73" (35.1 x 16.7 x 18.7 mm)
• Operating temperature: -4 to 158°F (-20 to 70 °C)
• Weight: 0.08 lb (40 g)

*Price per Kit
