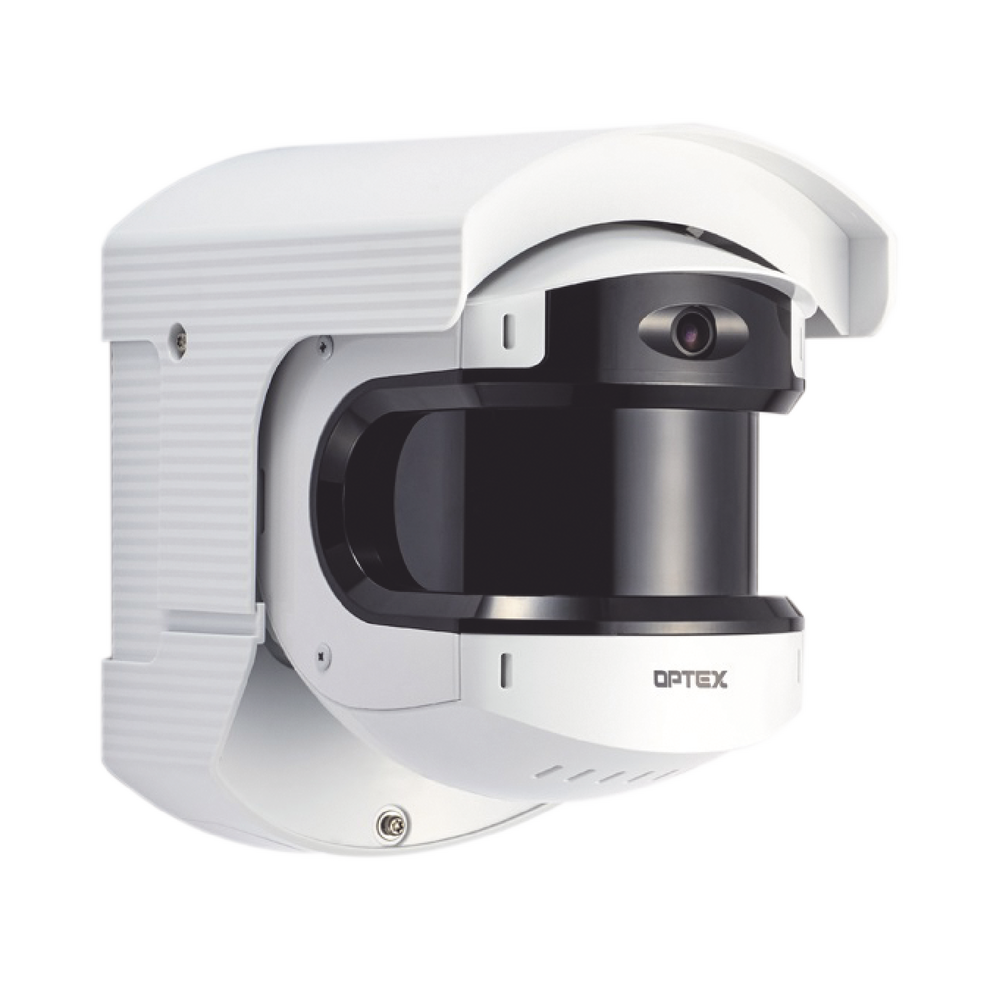

Sensor LiDAR REDSCAN PRO/ 50 X 10 Metros de protección / Compatible con protocolo ONVIF
Descripción del producto
Product Details
Part of the ONVIF profile S compliant REDSCAN Pro Series, RLS-50100V is the long-range LiDAR sensor providing very accurate detection of intruders and moving objects within a range of 50 m x 100 m, without any gaps and keeping the same detection resolution in the near and far. Equipped with OPTEX's most advanced technology it provides excellent detection performance not affected by variable lighting, temperature or environmental changes, making it the best solution for high security sites.
Intelligent and weather resistant device
With onboard analytics, REDSCAN Pro can analyse the size, the speed and the distance of the moving objects, providing point detection by tracking the X & Y coordinates of the moving objects. A further advantage of LiDAR technology is that the detection performance is stable at any time without being affected by variable lighting or temperature. RLS-50100V provides a high detection resolution of 0.125 degrees.
RLS-50100V features environmental resistance function to reduce false alarms due to harsh environments like fog or snow. An Auto Area Adjustment function allows Redscan Pro to continuously adjust the detection area to take into consideration changes happening on ground such as accumulation of snow or leaves. The sensor can operate from -20 to +60 degrees and when using a heated lens can extend its operating temperature to -40 degree.
Connectivity and interoperability
The RLS-50100V LiDAR is an ONVIF profile S compliant sensor allowing it to send alarm outputs via the ONVIF protocol to any ONVIF compliant networked video system or IP network devices.The video stream of the assistance camera could also be provided to the Video Management Software platform via the ONVIF RTSP protocol. To assure a secure network communication, the REDSCAN Pro is compliant with HTTPS, SNMPv3, IEEE802.1X protocols.
Easy installation and maintenance
REDSCAN Pro is equipped with built-in assistance camera which simplifies installation and walk test. Through a laser line overlay on the camera view, it provides a very useful visual guidance on where the detection area is on scene, allowing to adjust the angle of detection of the sensor. RLS-50100V features a built-in adjustment bracket within its housing to allow a tilt of -5 degree to 95 degree and a side adjustment is -/+ 5 degree.
Horizontal, vertical and tilted mounting options can all be achieved without the need of an additional bracket. The configuration settings is done via web browser which allows an easy remote access. The settings can be copied from one device to another, providing they are the same model (from one RLS-50100V to another RLS-50100V).
Certification Required
Applications
- Buildings
- Perimeter
- Approach
- Roof / Ceiling
- House
Key Features
- Analytics recognising moving object’s size, speed and distance from the unit
- Long-range, 50x100m, customisable vertical or horizontal detection
- Built-in assistance camera, for easy installation and alarm event review
- up to 8 detection zones with configurable sensitivity, target size and output
