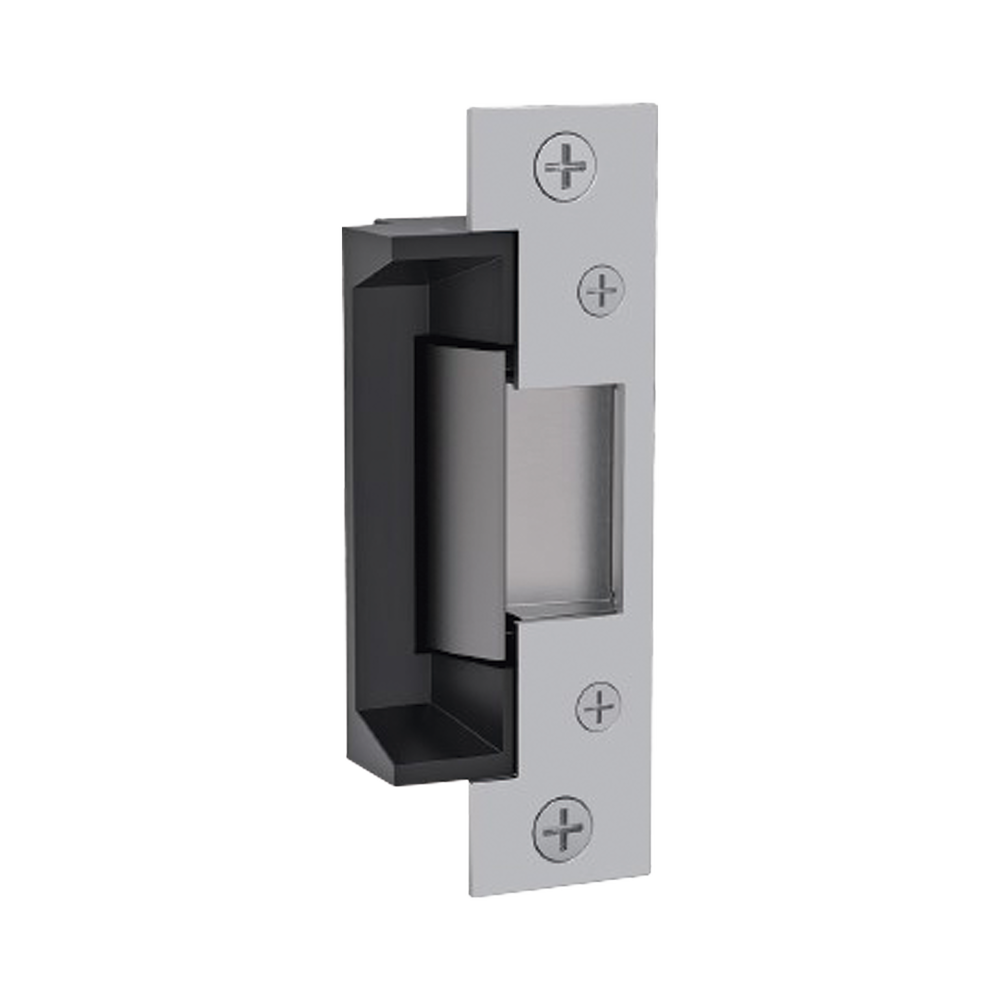

Contrachapa eléctrica HES 5000C Bajo Perfil/ Múltiples Placas/ 5 Años Garantia/ 1 millon de Ciclos

Low Profile

• Strike body depth 1-1/16"
• Compact Design
• Ideal for applications with limited space behind the jamb
• Exceeds Every Standard
• UL 1034, burglary-resistant listed and suitable for outdoor use
• UL 294 listed
• Endurance 1 million cycles
• Tested for Durability
• ANSI/BHMA A156.31, Grade 1
• Static strength 1,500 lbs, Dynamic strength 70 ft lbs
• Endurance 1 million cycles

Certifications

• ANSI/BHMA A156.31, Grade 1
• UL 1034 burglary-resistant listed
• UL 294 listed
• RoHS compliant

Frame Application

• Metal
• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC
• 240 mA at 12 VDC/120 mA at 24 VDC

Features

• Tamper-resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail secure/fail safe
• In-frame horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Accommodates 1/2" – 5/8" latchbolt (5/8" with 1/8" door gap)
• Strike body depth 1-3/16"
• Plug-in connector
• Trim enhancer included
• SecuriCare five-year, no-fault, no questions asked warranty
