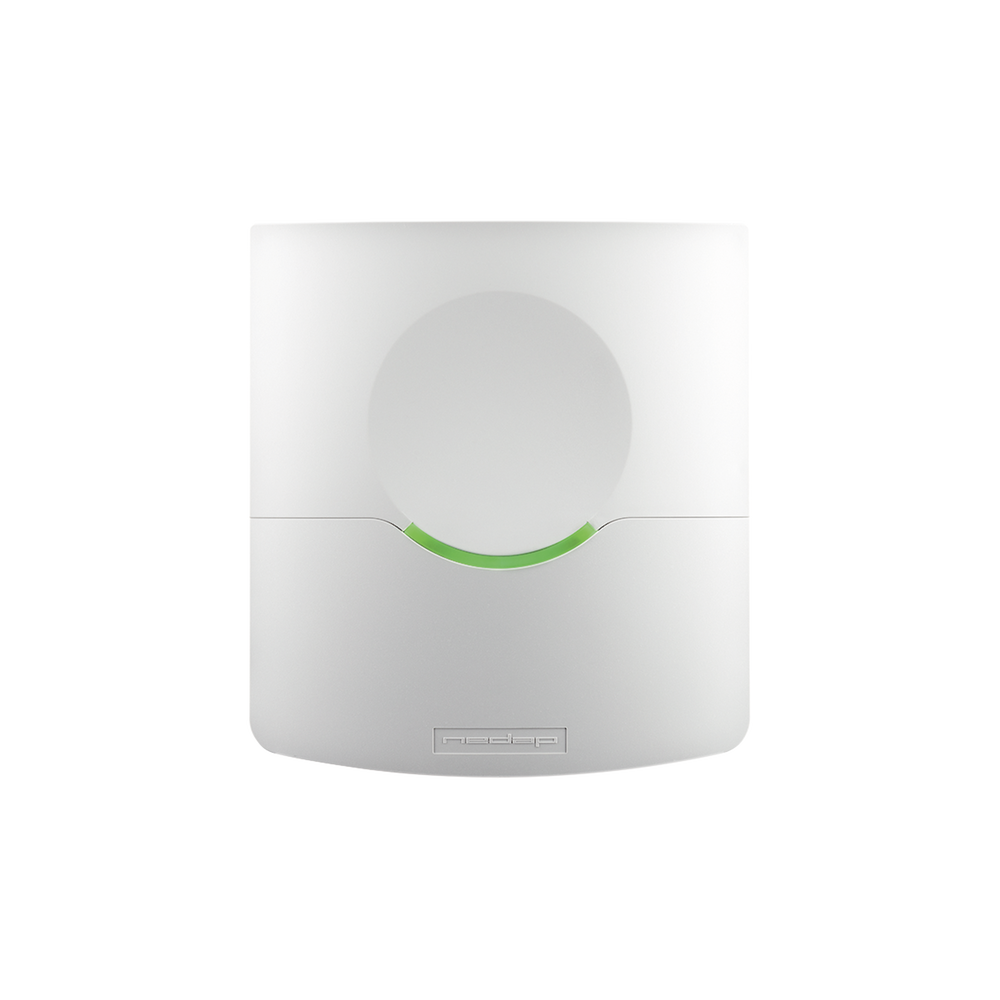

Lector UPASS REACH (alcance de hasta 4 metros) UHF/900 Mhz

Long-range UHF reader for vehicle identification

Key features:

• Automatic vehicle identification
• Read range up to 5 meters (16,4 feet)
• Operates with passive UHF cards (EPC Gen 2) adjustable read range
• Supported communication interfaces: Wiegand, RS232, and RS422
• OSDP converter optionally available

The uPASS Reach is a UHF RFID reader for long-range vehicle identification. Based on passive UHF technology, vehicles are identified up to 5 meters (16,4 feet). The uPASS Reach complies with the ISO18000-6C and EPC global Gen 2 directive.

As the uPASS Reach is used in combination with battery-free UHF (EPC Gen 2) tags, the solution is cost-efficient. It is ideal for convenient vehicle access to car parks, gated communities and staff parking areas.

Technical specifications

• Dimensions: 200 x 220 x 45 mm (7.9 x 8.7 x 1.8 in.)
• Color: RAL 7035, aluminium chassis
• Weight: 0,75 kg (1.65 lbs)
• Protection class: IP65 (approx.NEMA4x)
• Material: Aluminium chassis with UL94 ABS cover
• Operating temperature: -30...+60°C (-22...+140°F)
• Storage temperature: -30...+60°C (-22...+140°F)
• Relative humidity: 10% ... 93% relative humidity, non-condensing
• Power supply: 12...24 VDC +10% linear supply recommended
• Power consumption: 1A @12VDC, [email protected]
• Read range: Up to 5 meters (16,4 feet) with passive Nedap UHF tags
• Operating frequency: 902-928 MHz uPASS Reach Region 2&3
• Antenna polarization: Horizontal
• Air interface: According to ISO 18000-6 C; EPC Gen 2
• Communication interfaces: RS232, RS422 and USB service interface
• Communication protocols: CR/LF, DC2/DC4 and various OEM protocols (see uPASS  rmware guide for more information)
• Relay output: 1 relay output (NO, common, NC), 24 VDC 2A
• Input: Read disable input; 3 x TTL general purpose inputs
• Output: Wiegand, Magstripe (clock & data)
• Cable specifications: Wiegand - 150 m (500 ft.) 22AWG
• Tamper switch: Magnetic switch, normally closed
• Standards: CE, FCC, IC, ACMA, UL294, South Korea, Vietnam, Singapore, Malaysia
