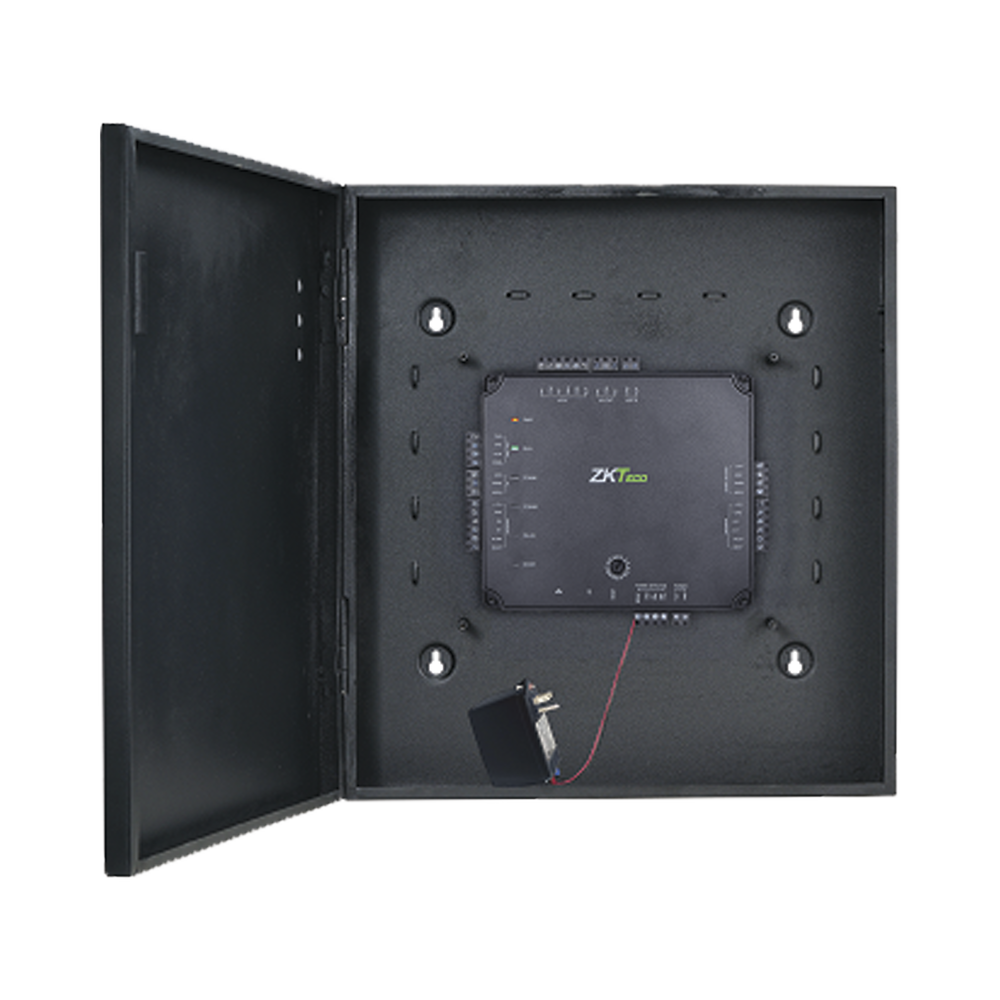

1 Door Access Controller with Built in PoE and WiFi Metal Cabinet and Power Supply Included
Descripción del producto
Atlas100-BUN is the best simple and affordable access control panel. It controls one door, and has no software. The access control panel is PoE powered and communicates via Wi-Fi. The bundle includes one access control panel and one metal enclosure.
Choice of Readers Atlas Series supports any 3rd-party readers which communicates with Wiegand or OSDP communication protocols.
- Advanced Access Control Features
No software required. Built-in Web Application provides advanced access control features including User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback, First-Card Opening, Multi-Card
Opening, Card Design and Duress PINs. - Door Control and More
User-programmable auxiliary relays can be used to control lights, alarms, annunciators, intrusion detection panels, additional locking devices, or any other external electrical device which can be controlled by a switch. - Capacity
Atlas Series supports up to 84 doors when adding multiple secondary Atlas Series panels to the primary Atlas Series panel. Each Atlas panel can store up to 5,000 cards and 10,000 transactions - Choice of Readers
Atlas Series supports any 3rd-party readers which communicates with Wiegand or OSDP communication protocols. - Mobile App
Numerous convenient features include: remotely unlocking doors, universal lockdown & recovery, access to events & alarms, adding/modifying users, and much more. - Lowest Total Cost of Ownership
Atlas Series panels come in several models, to suit different project needs and reduce the cost of unused capacity. Easy-to-use embedded Web Application gets you up and running quickly. Firmware is fieldupgradeable, allowing your system to stay current with the latest features and security enhancements. - System management by browser from client PC’s. No need to install software on each client.
- Programming of special logic between doors is set up with simple pull down menus. No special scripts or code is required.
- Management software allows indication of real-time door status and remote commanding of door open/close state. Alarm conditions such as forced open and extended open alarms are reported.
- Advanced access control capabilities are built into the hardware, including anti-passback, Dual and multi-Card Authentication, and Duress Mode.
Capacity
| Users | 5,000 |
|---|---|
| Events Database Capacity | 10,000 transactions |
Number of Inputs
| 3 | 1 Exit Button, 1 Door Sensor, 1 AUX |
|---|
Number of Outputs
| 2 | 1 Form C relay for Lock, 1 Form C relay for Aux output |
|---|
Communication
| 1 | TCP/IP |
|---|---|
| 2 | Wiegand |
| 3 | OSDP |
LED
| Indicator | Indications for power, communication, and tamper |
|---|
Environment
| Operating Temperature | 32-113 °F (0-45 °C) |
|---|---|
| Operating Humidity | 20% to 80% |
Browsers Supported
| 1 | Edge |
|---|---|
| 2 | Chrome |
| 3 | Firefox |
Power
| Power Supply | 12V DC, 3A (PoE optional) |
|---|---|
| Power Consumption | [email protected] DC, 750mA |
Communication
| Communication | RS485 |
|---|---|
| Communication | TCP/IP |
Baud Rate for RS-485/OSDP
| RS485/OSDP | 9600 bps |
|---|
Power
| Power Supply | 9.6V-14.4V DC, 1A |
|---|
Dimensions of Metal Enclosure
| Height | 12″ (280 mm) |
|---|---|
| Width | 14″ (380 mm) |
| Depth | 2.5″ (80 mm) |
