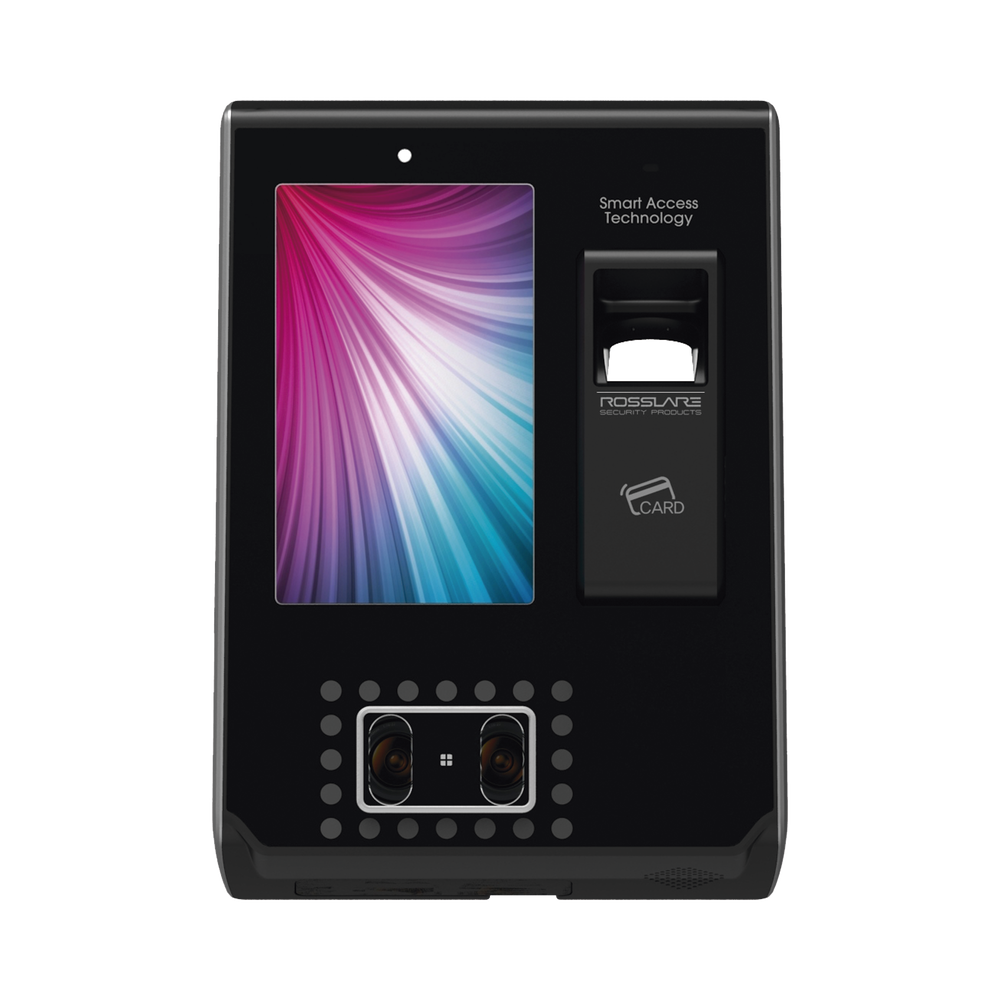

Lector biometrico de Huella y reconocimiento Facial con lector de PROX (125Khz) y Mifare (13.56 Mhz)

GENERAL DESCRIPTION

The reader AYB9350U with fingerprint, facial recogition, include MIFARE (13.56 MHz) and EM (125 kHz) card reader, features a 500-DPI optical sensor, with built-in memory for 2000 FP templates. With TCP/IP, RS-485, and Wiegand 26-Bit connectivity, the AYB9350U can be used with any Wiegand supported access control system.

This indoor reader features a scratch-resistant FP surface capable of reading both wet and dry fingers, while the high-speed CPU can scan in less than 1 second. Each template is assigned a biometric User ID by the controller. When a fingerprint is read and the biometric features are verified as valid, the ID is sent in Wiegand 26-Bit format. The reader does not process the access rights, as this is done on the host controller.

Templates and reader settings are managed by TCP/IP connection to the AYB9350U using the AxTraxNG™ integrated biometrics features. Alternatively, the RosslareBio 9000 standalone management software for Windows OS interfaces with third-party systems.

MAIN FEATURES

• Small compact design, for indoor use
• Capacity for 10000 fingerprint templates, 2000 facial templates
• Combined RFID card and for higher security with dual-factor applications
• Built-in TCP/IP, RS-485, and Wiegand connectivity
• 50,000 non-volatile event log
• Wide thermal operating range (-20°C to 60°C)
• Built-in buzzer and LED indication
• Modern design blends into almost any architectural challenge.
