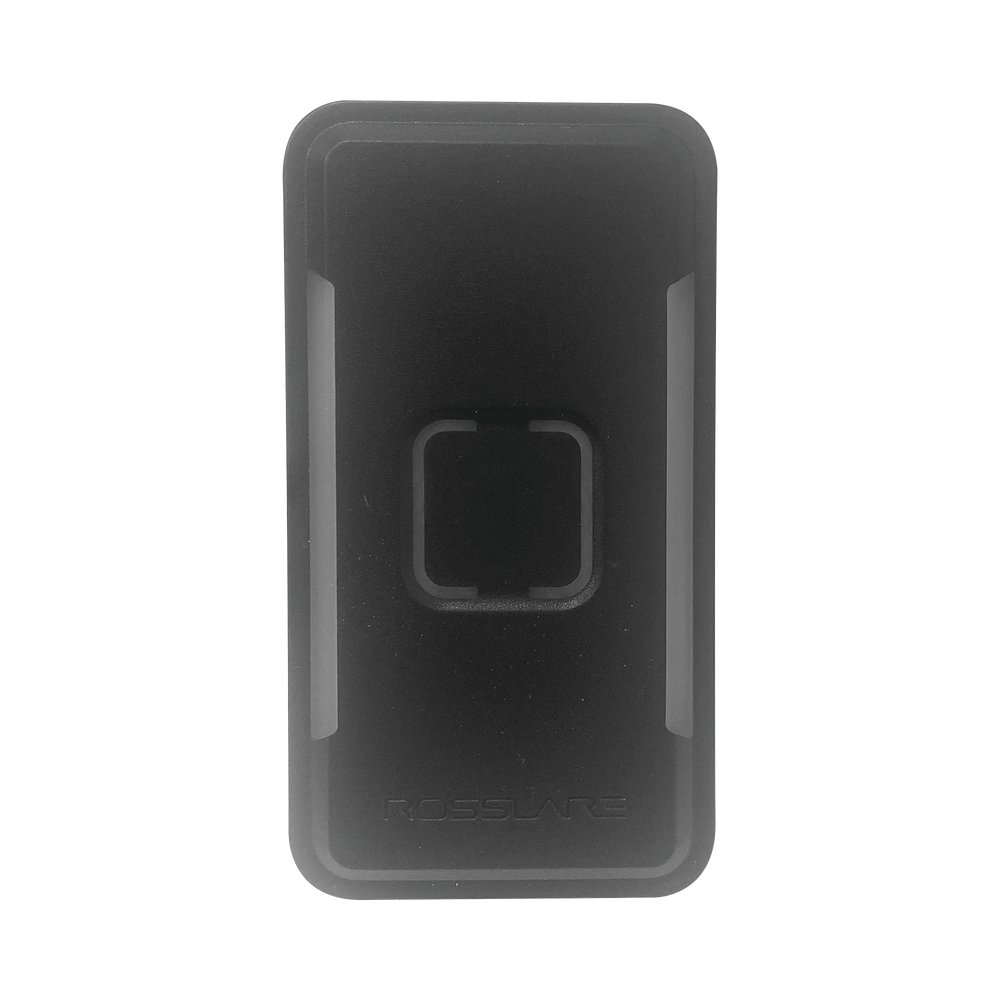

Lector Multitecnologias, Prox EM 125KHz/ MIFARE 13.56 MHZ /Y tarjetas Moviles

Rosslare’s AY-K35 is a powerful RFID proximity card reader of 125-kHz EM/ 13.56 MHz mifare and Mobile credetntial usig bluetooth technology, featuring multi-format output and an excellent read range. The reader supports both standard EM and Rosslare format cards, and is highly flexible with behavior control options. With a sleek design and a tough UV-resistant and water-resistant casing, the AY-K35 is equally suited to indoor and outdoor use.

Main Features:
• Selectable output formats: Wiegand 26-Bit or Clock & Data
• Excellent RFID card read range of up to 3.15"  (8 cm)
• Wide range operating voltage: 5 to 16 VDC
• 18" (45 cm) pigtail cable

Professional Grade Features:
• Internal sounder with external control option
• Tri-color LED with external control inputs
• External reader hold control
• Optical wall tamper detection
• Water-resistant with epoxy potting (IP65), suitable for indoor and outdoor applications
• Made of tough polycarbonate UV-resistant plastic
• Comes with mounting template for easier installation

Compatible with AC-015, AC-115, AC215, AC-215IPL, AC-225IPL, AC425IPL and AC525
• Reading range 3.14" (8 cm).
• Wiegand output 26 bits.
• Requires 5 22 gauge wires (131.2 yd or 120 m max.).
• Power supply 12 Vdc, 50 mA.
• Dimensions: 3.14 x 1.5 x 0.5" (79.9 x 39.9 x 12.8 mm). Weight 2.11 oz (60 g).


*1 Year Warranty
