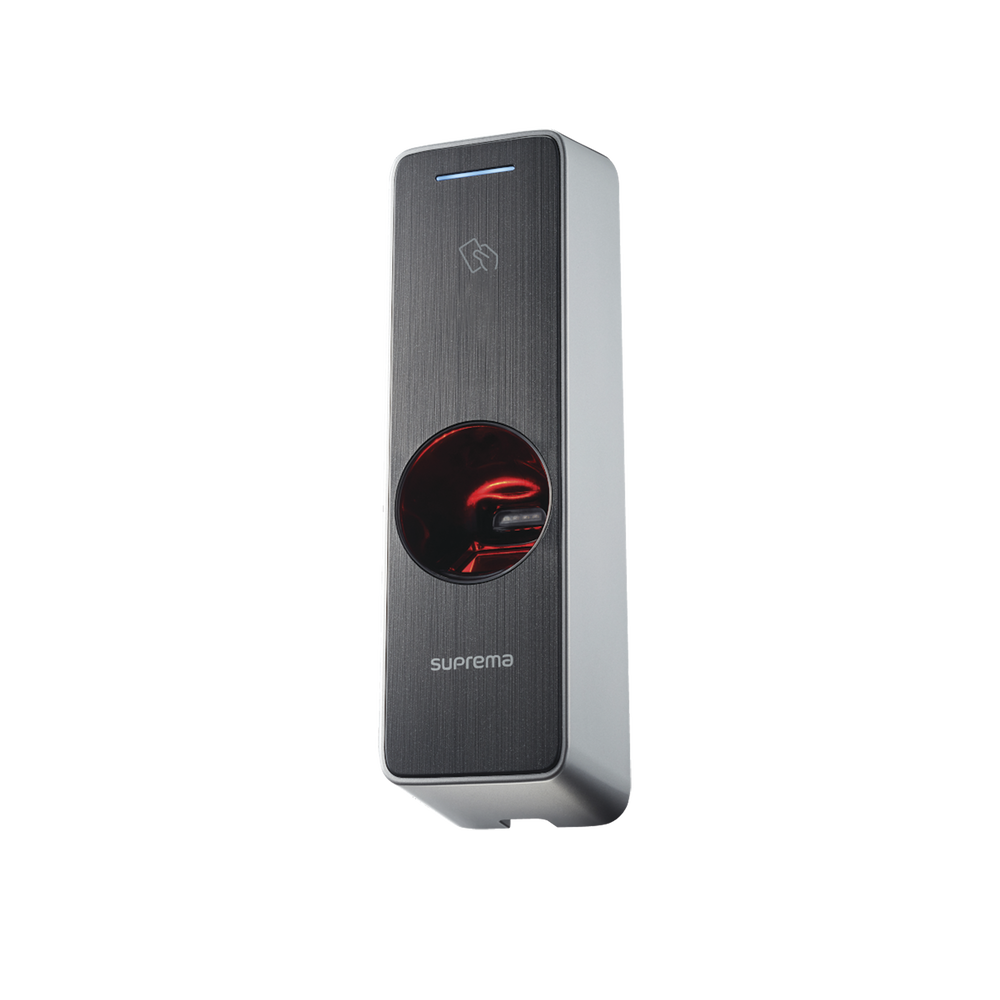

BioEntry W2
Outdoor fingerprint Reader IP67/ IK09 / MULTIFORMAT

Biometric Readers of the Highest Technology in the world

Suprema, one of the leading biometric security technology leaders, presents one of the best biometric algorithms with superior engineering. It is constantly developing and producing leading products in the industry, extending its roster of access control products and time and attendance around the world.

Features:

Best-in-class Performance

• Latest Suprema algorithm

• 1.2GHz quad-core CPU

Improved Accuracy & Security

• New advanced Live Finger Detection(LFD) technique

• High-precision OP5 optical sensor

Expanded Capacity

• Max. 500k users/1 million text logs

• Large memory: 2GB Flash + 256 MB RAM

Rugged Structure

• IK08 impact protection

• IP67 ingress protection

• Ideal for outdoor installation

Multi RFID Card Reading

• LF(125KHz), HF(13.56MHz) dual-band

• Reads all card types that HID multiCLASS supports

 (EM/HID Prox/MIFARE/iCLASS/DESFire/FeliCa/NFC)

Specifications:

DEGREE OF PROTECTION IP67

IMPACT PROTECTION IK08

· Live finger detection.

· Communication: TCP / IP, WiFi (802.11 b / g).

· RS-485 interface for communication or slave module SIO2.

· Relay output.

· Wiegand: entrance and exit.

· Slot for SD Card memory (up to 32GB).

· Users:

- Users (1: 1) 500,000.

- Users (1: N) 100,000.

- Templates (fingerprint) (1: 1) 1,000,000.

- Templates (tracks) (1: N) 200,000.

· Certificates: CE, FCC, KC, RoHS, REACH, WEE.

· Power: 12 VDC, 1 A, and PoE. (source not included)

· Dimensions: 1.96 x 6.77 x 1.71" (50 x 172 x 43.5 mm).

BEW2OAP with 125 KHz EM/HID reader Prox 13.56 MHz, MIFARE®/NFC/
DESFire(EV1)/ FeliCa/iClass® SE

Requires BIOSTART2 software (not included)
To use with NFC  (ask for compatibility)
