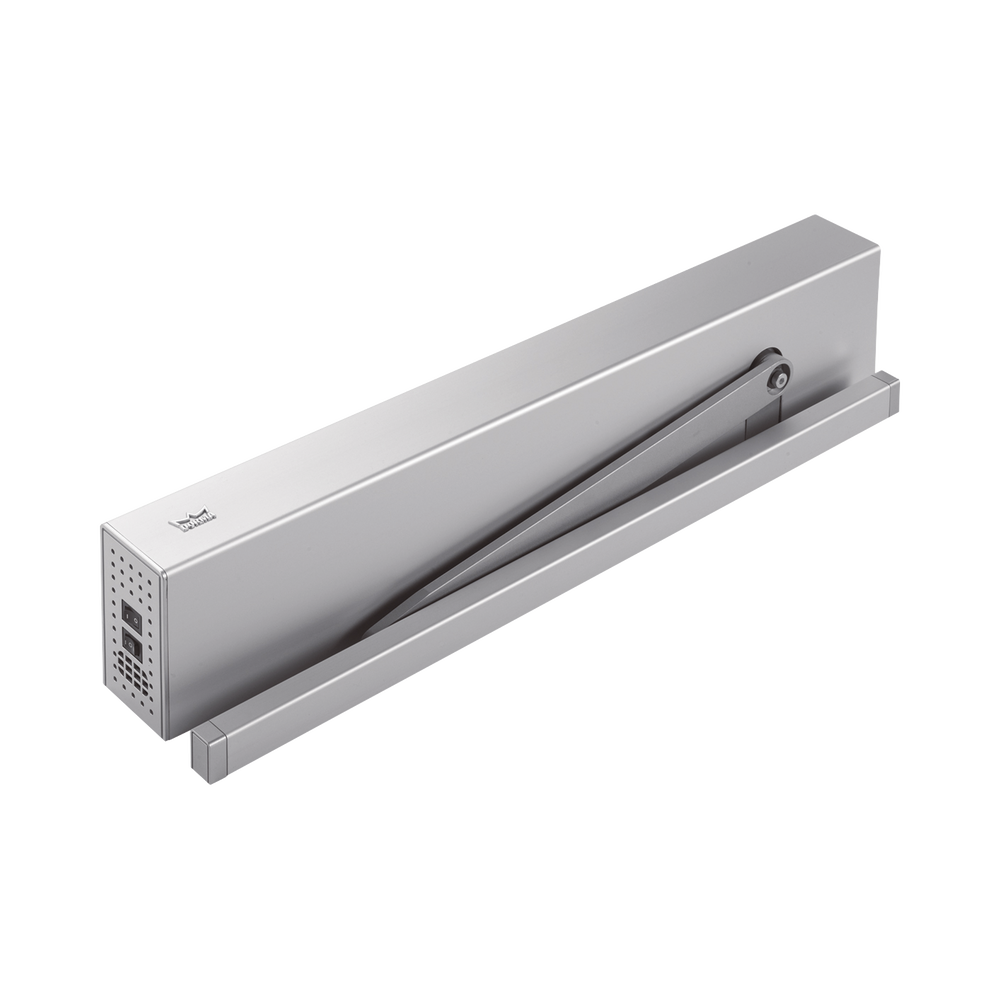

Sistema automatizado DOBLE para la apertura y cierra de puertas con Brazo de Empuje de hasta 110 cm/ 100Kg

The 9000 Series heavy-duty exit device provides superior durability while the smooth reduced projection touchbar assembly minimizes catch hazards.

• Interior doors, single -leaf
• Door-leaf width  <1100mm
• Door- leaf weight, max: 100 Kgs
• For open to outdoor
• Dimension H x W x D: 60 x 530 x 80 mm
• Weight: 3.2 Kgs
• Supply Voltage: 110 VCA
• CE Marking
• Adjustable opening time (0° - 90°): 5 to 10 sec
•  Adjustable closing time (0° - 90°): 5 to 10 sec
•  Adjustable hold-open time: 5 to 30 sec (in Powerless mode)
• Adjustable opening angle: 110°

CERTFIRE Approved CF875.

• Surface and concealed panic bolts and latches
• Electronic bolt retraction available
• Anti-bacterial and anti-corrosive coatings available
• Heavy duty cast chassis
• Wide range of external trims

:: IMPORTANT ::

To order it is necessary to indicate to your sales executive:

• Door width to control.
• If you refer to the side where the operator is located, the door will open outwards or inwards.
• The sense of opening (on which side the hinges go).
• Please send to us the next document.

The mechanism will be adequate to these characteristics, therefore there are no exchanges or returns.
