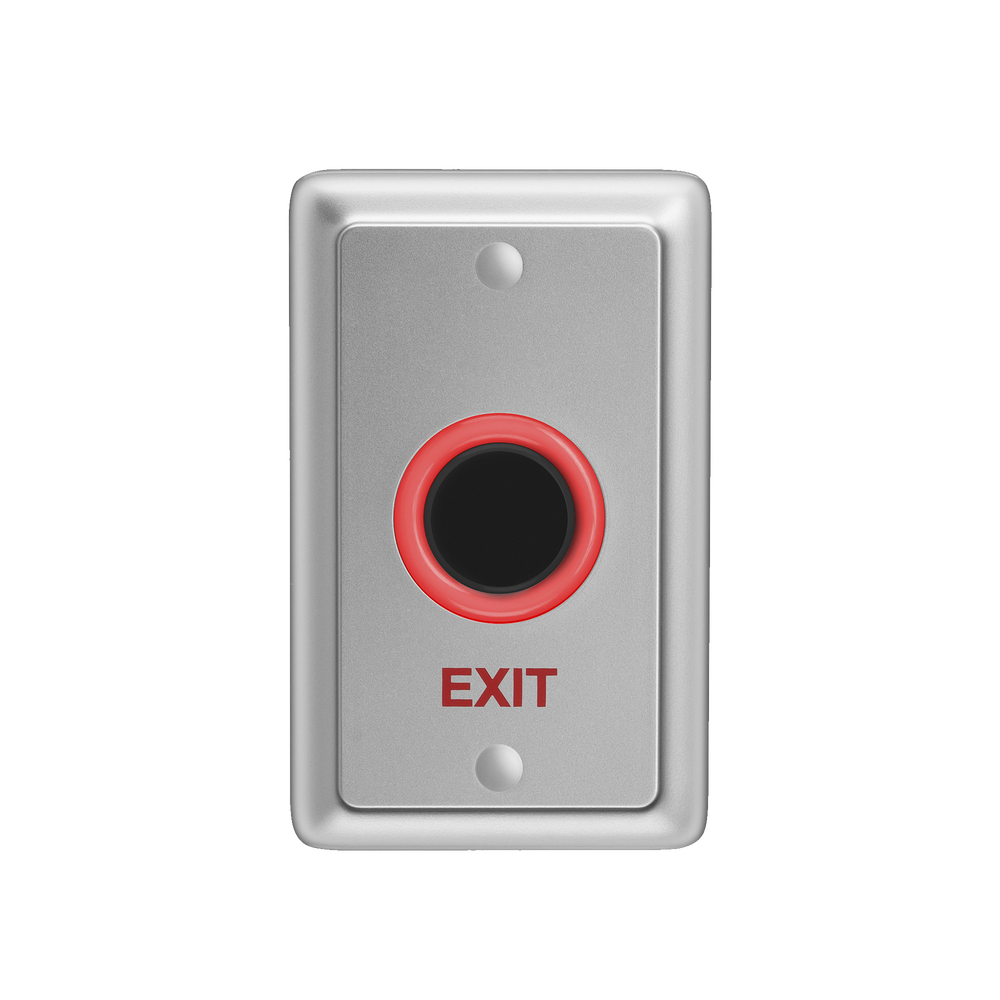

Boton de salida pasivo infrarojo con relevador

The EX-H22 and EX-M22 are passive infrared motion sensors (no touch switch). The new access control switches are designed as flush mounting for US and UK electric boxes with passive infrared technology The switches have a red/green LED ring to display the switch status.

The switches are designed as Request to Exit (REX) buttons for access control systems, direct activate electric strike, or magnet locks with up to 30 VDC and 1A

Technical Specifications

-Input Voltage  8–30 VDC

- Switch Voltage 30 VDC [OC], Maximum Switch Current 1 A

- Sense Range (EX-x22) 5 to 20 cm

 - LED Indicator Red/green LED

2.2 Environmental Characteristics

- Operating Environment : Outdoor use

- Operating Temperature Range -10˚C to 50˚C (14˚F to 122˚F)

- Storage Temperature Range -20˚C to 60˚C (-4˚F to 140˚F)

 - Operating Humidity 10% to 90%

2.3 Physical Characteristics

Dimensions (W x H x D)  EXH22N00: 114 x 70 x 10 mm (4.49 x 2.76 x 0.39 in.)

                                          EXM22N00: 92 x 92 x 10 mm (3.62 x 3.62 x 0.39 in.)

Weight

EXH22N00 : 50 g (1.76 oz)

EXM22N00: 55 g (1.94 oz)
