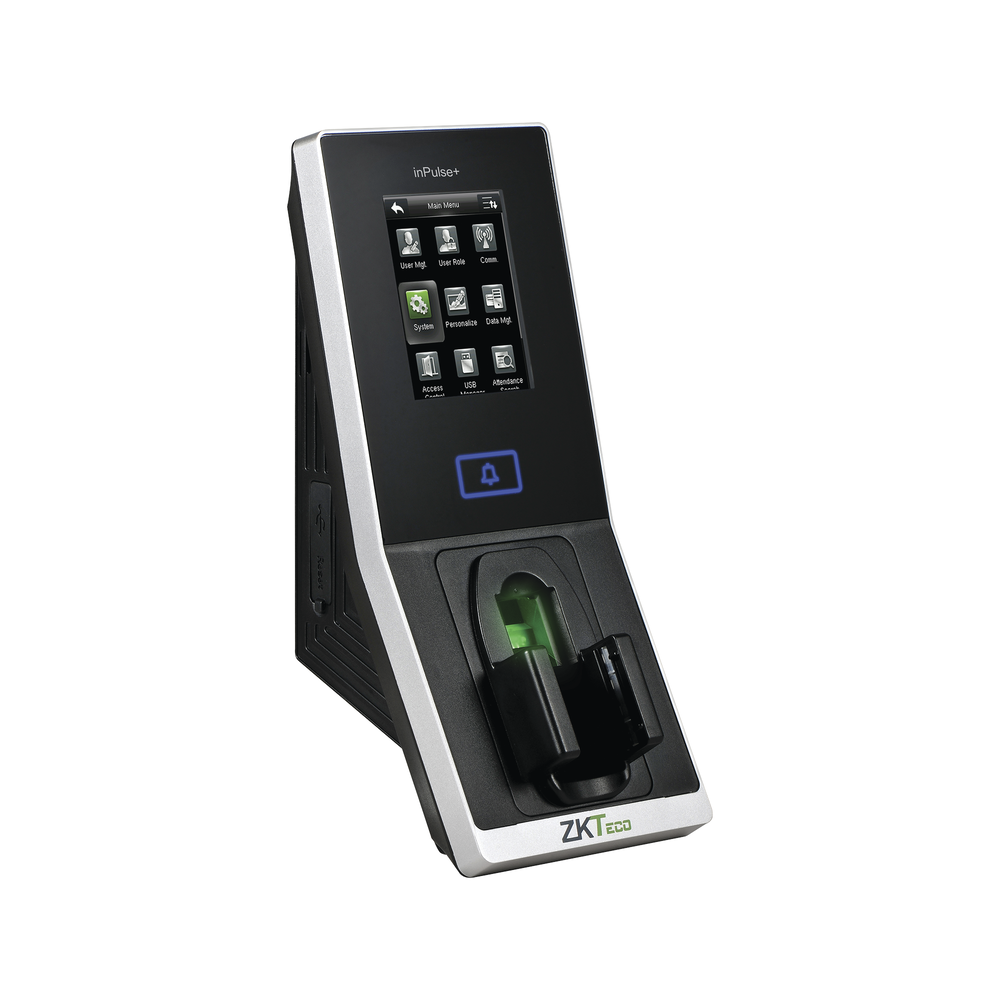

Terminal de Reconocimento de Venas y huella digital para Control de Acceso / ZKBIOSECURITY3.0 integración de video / visitantes / hoteles / elevadores / patrullaje

inPulse+ is a multi-biometric reader capable of capturing and processing finger vein and fingerprint biometric data at the same time. Ergonomic, intuitive and highly secured, inPulse+ leads us to a new era of enhancing security with biometrics. Its infra-red rays illuminate the vein pattern which is then converted into a biometric template. Both the vein and fingerprint templates are then stored in the database for subsequent matching.

Capacity
Finger Veins 1,500
ingerprints 1,500
Cards 2,000
Transactions 100,000

Communication
TCP/IP
USB Host Wiegand Input / Output

Access Control Interface
ock Relay Output
Alarm Output / Auxiliary Input
Exit Button / Door Sensor
Doorbell Output

Hardware
1.2GHz High Speed CPU
Memory 128MB RAM / 256MB Flash
ZK Fingerprint Sensor
2.8 Inches TFT-LCD Touch Screen
125KHz EM Reader / Mifare (Optional)
Hi-Fi Voice & Indicator
Tamper Switch Alarm

Standard Functions
Access Levels / Groups / Holidays
DST / Bell Schedule
Duress Mode (Password)
Anti-Passback
Record Query
Custom Wallpaper & Screen Saver

Special Functions
Multiple Biometric Verification Modes
ZK Encrypted Card (Optional)

Compatibility
Wiegand Slave Reader
ZKBioSecurity Software

Additional Info
Working Temperature: -10 °C ~ 50 °C
Dimensions: 201.7 × 85 × 102.7 mm.
ZKVein v3.0 & ZKFinger v10.0 Algorithms
Finger Vein & Fingerprint: FAR≤0.0001% FRR≤0.01%
Package Includes 12V 3A Power Supply

Power
Operating Voltage 12V DC
Current Draw < 500mA
