Modem 4G(LTE) para SIM, con Wi-Fi 2.4 GHz, Para uso en casa y/o vehículos, c/puerto fast ethernet, Bandas (2,4,5,12)
Modem 4G(LTE) para SIM, con Wi-Fi 2.4 GHz, Para uso en casa y/o vehículos, c/puerto fast ethernet, Bandas (2,4,5,12)

Modem 4G(LTE) para SIM, con Wi-Fi 2.4 GHz, Para uso en casa y/o vehículos, c/puerto fast ethernet, Bandas (2,4,5,12)

$0.00
Marca:
Código del producto: WAP-LTE-KIT-US
Disponibilidad: ¡Agotado!

Descripción del producto

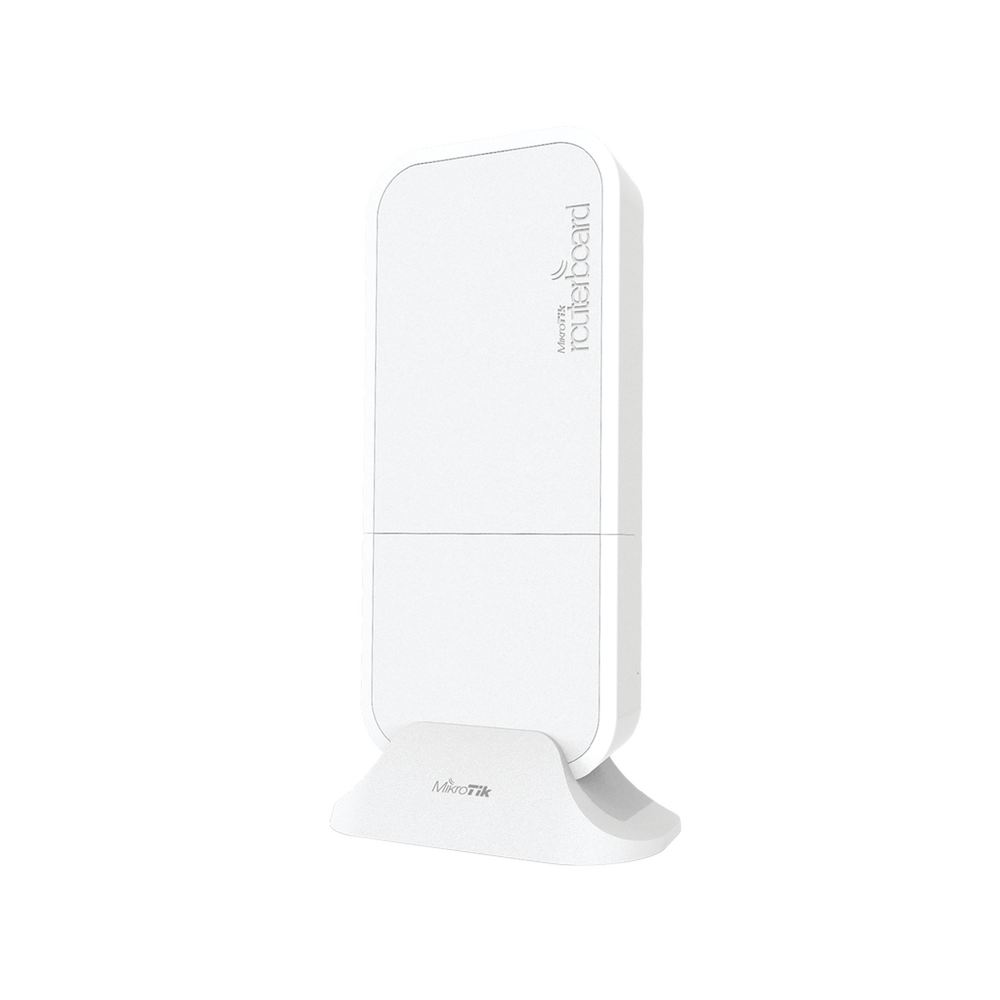

The wAP LTE Kit-US is a small weatherproof wireless access point with a built-in cellular modem that supports 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.



LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. The unit has several powering options - 9-30v PoE-in by Ethernet port, DC jack, and Automotive connector, very handy in mobile devices like a car, bus or train.

RBwAPR-2nD&R11e-LTE-US includes LTE modem that supports LTE bands 2,4,5 and 12, mostly used by mobile operators in the United States, Canada, and Latin America.

Specifications

Details
Product codeRBwAPR-2nD&R11e-LTE-US
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650 MHz
Dimensions185 x 85 x 30 mm
RouterOS license4
Operating SystemRouterOS
Size of RAM64 MB
Storage size16 MB
Storage typeFLASH
Tested ambient temperature-40°C to 60°C
MTBFApproximately 200'000 hours at 25C


Powering

Details
PoE inPassive PoE
PoE in input Voltage9-30 V
Number of DC inputs3 (Automotive, DC jack, PoE-IN)
DC jack input Voltage9-30 V
Automotive input Voltage9-30 V
Max power consumption8 W
FAN countPassive


Mobile

Details
3G CategoryR8 (42.2Mbps Downlink, 5.76Mbps Uplink) / R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands2 (1900MHz) / 5 (850MHz)
LTE Category4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 12 (700MHz)


Wireless specifications

Details
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz2
Wireless 2.4 GHz chip modelQCA9531
Wireless 2.4 GHz generationWi-Fi 4


Ethernet

Details
10/100 Ethernet ports1


Peripherals

Details
Number of SIM slots1 Modem (Mini SIM)
MiniPCI-e slots1


Other

Details
PCB temperature monitorYes
Voltage MonitorYes


Certification & Approvals

Details
CertificationCE, FCC, IC, EAC, ROHS


Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s22-96
11MBit/s22-89
6MBit/s20-93
54MBit/s18-74
MCS020-93
MCS716-71



Included parts
