Descripción del producto

XPass

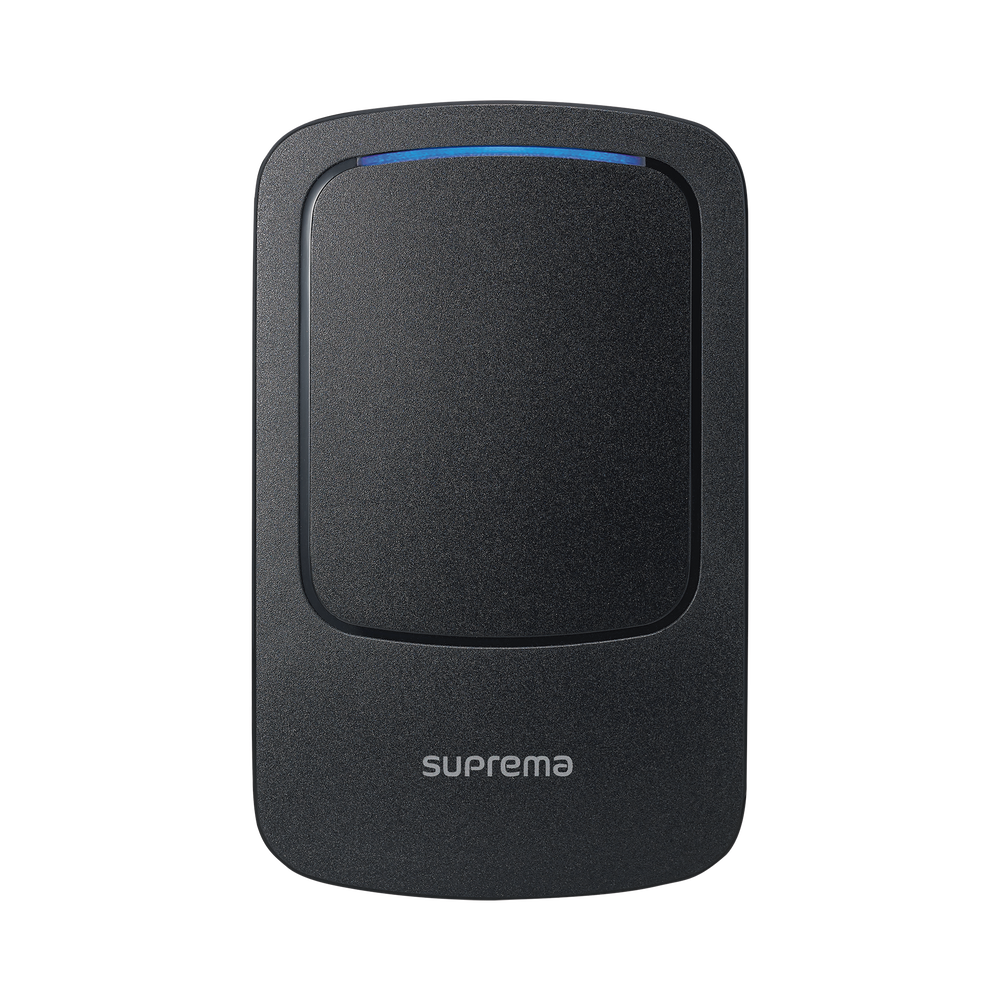

XPass  is an outdoor compact RFID reader based on Suprema's state-of-the-art RFID technology and multi-hardware platform, optimized for centralized access control systems such as Suprema's CoreStation. Using multi-form factor technology, mullion-type, gangbox-type and gangbox keypad-type are all supported. With dual-frequency (125kHz / 13.56MHz) RFID technology, XPass D2 also supports mobile cards using NFC and BLE, the latest mobile communication technologies. Packed in a rugged IP65/IP67 rated dust & waterproof performance as well as IK08 rated vandal-proof structure, suitable for tough environments and outdoor installations.



RFID

RF Option: 125KHz EM, Wiegand Format Card & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa

Mobile Card: NFC, BLE

Model Name

RFID

  • RF Option

  • Mobile Card

Protections

  • Ingress Protection

  • Vandal Proof

Capacity (RFID)

  • Users (1:1)

  • Users (1:N)

  • Text Log

  • PIN

HW

  • CPU

  • Memory

  • LCD Type

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Tamper

  • Certificates

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

Electrical

  • Power

XP2-MDPB

125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa

NFC, BLE

IP65, IP67

IK08

200,000

200,000

1,000,000

Not supported

1 GHz

4 GB Flash + 64 MB RAM

Not supported

Multiple colors

Multi-tone Buzzer

-35°C ~ 65°C

-40°C ~ 70°C

0% ~ 95%, non-condensing

0% ~ 95%, non-condensing

Device: 144g, Bracket: 30g (Including washer and bolt)

48 x 145 x 27

Supported

CE, FCC, KC, RoHS, REACH, WEEE, SIG

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Master or Slave (Selectable)

1ch Input or Output (Selectable)

2ch Input

1 Relay

Not supported

Not supported

Supported (IEEE 802.3af compliant)

Not supported

DC 12 V / DC 24 V

XP2-GDPB

125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa

NFC, BLE

IP65, IP67

IK08

200,000

200,000

1,000,000

Not supported

1 GHz

4 GB Flash + 64 MB RAM

Not supported

Multiple colors

Multi-tone Buzzer

-35°C ~ 65°C

-40°C ~ 70°C

0% ~ 95%, non-condensing

0% ~ 95%, non-condensing

Device: 220g, Bracket: 52g (Including washer and bolt)

80 x 130 x 25

Supported

CE, FCC, KC, RoHS, REACH, WEEE, SIG

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Master or Slave (Selectable)

1ch Input or Output (Selectable)

2ch Input

1 Relay

Not supported

Not supported

Supported (IEEE 802.3af compliant)

Not supported

DC 12 V / DC 24 V

XP2-GKDPB

125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa

NFC, BLE

IP65, IP67

IK08

200,000

200,000

1,000,000

Supported (Keypad 3x4)

1 GHz

4 GB Flash + 64 MB RAM

Not supported

Multiple colors

Multi-tone Buzzer

-35°C ~ 65°C

-40°C ~ 70°C

0% ~ 95%, non-condensing

0% ~ 95%, non-condensing

Device: 235g, Bracket: 52g (Including washer and bolt)

80 x 130 x 25

Supported

CE, FCC, KC, RoHS, REACH, WEEE, SIG

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Master or Slave (Selectable)

1ch Input or Output (Selectable)

2ch Input

1 Relay

Not supported

Not supported

Supported (IEEE 802.3af compliant)

Not supported

DC 12V / DC 24V
