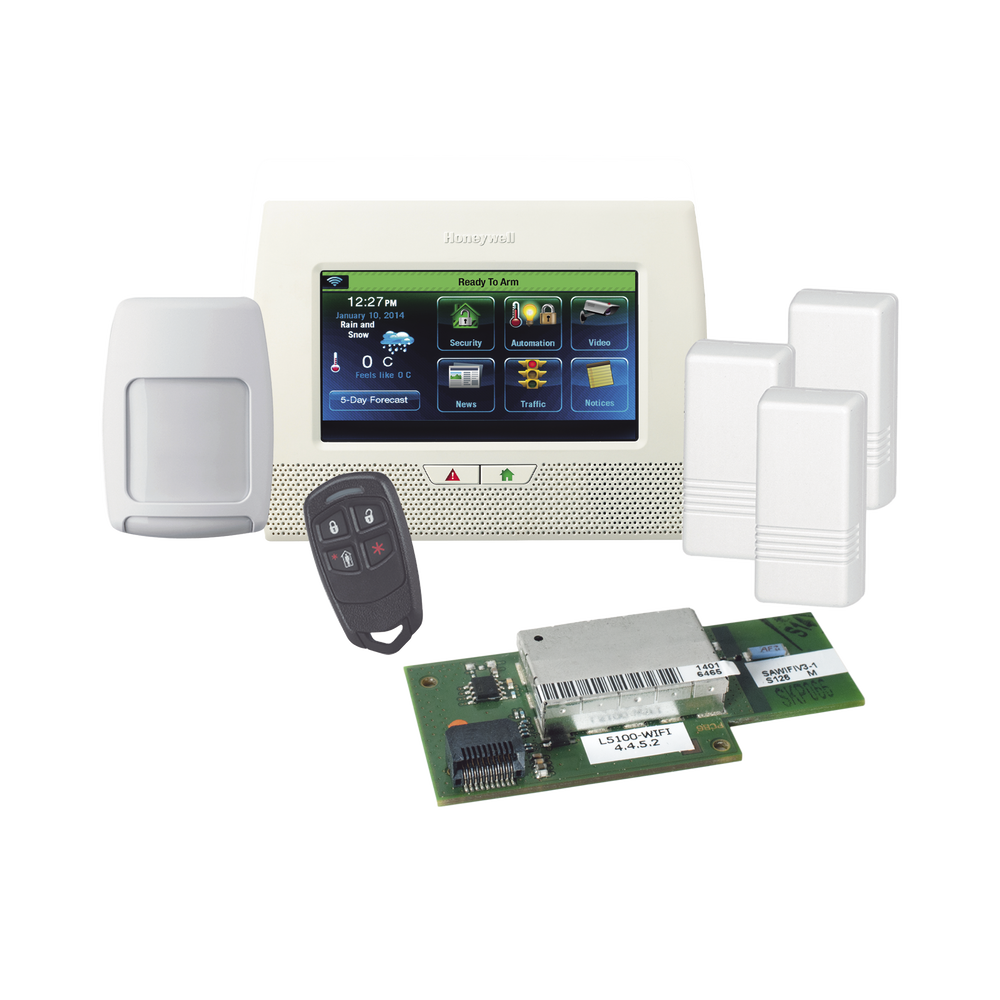

Wireless Alarm Panel with Touch Screen in Spanish with Wi-Fi

Its dynamic touchscreen display 7 "full color puts all the information and control at your fingertips with the touch of a button.


System
• Does not require programmer keyboard.
• It is programmed with its integrated keyboard.
• System interconstruido in the same cabinet:
- Panel in Spanish
- Backup battery
- Siren piezoelectric 85dB.
• Functions implementation timetable events.
• Memory of 128 events.
• Notification of system status and areas by voice.
• Message Center voice in Spanish.
• Programmable remotely by COMPASS software.
• Input supply 9 Vdc.
• Compatible with Z-Wave technology (Requires module L5100ZWAVE)
• Compatible with Total Connect (Requires module L5100WIFI, 4GL or ILP5).
• screen display with 4 Honeywell IP cameras. (Cameras not included).

areas
• 1 wired zone.
• 80 wireless zones plus 24 zones for wireless keys.
• Combination of burglary and fire zones.
• 16 types of configurable zones.
• Fully supervised wireless sensors and detectors.
• Compatible with Honeywell Wireless 5800 Series.

users
• 48 user codes.
• 4 levels of authority: rigger, master standard and coercion.
• Arming System.
• 2 arming keys on the keyboard.
• 4 levels of armed: total, partial, instant and maximum.
• Notice of open voice (chime) door.

Communication
• Only broadband, GSM, WiFi or Ethernet.
• Contact ID Protocol (Account Number 4 digits)
• Reports SIA format
• Communication with central station via the internet or L5100WIFI module ILP5
• Communication with central station via internet compatible GSM module
• Display showing signal strength GSM radio

It includes:
»3 5816WMWHLA wireless magnetic contacts.
»1 5800PIR wireless motion sensor pet immune.
»1 Wireless Remote Control 4 Button 5834-4.
»1 Wi-Fi Module L5100WIFI

Services for Honeywell Total Connect ™ requires contract, ask your sales or engineering department SYSCOM.

1 year warranty
