Servidor de almacenamiento para Milestone, Hasta 252TB, hasta 1400 Mbps

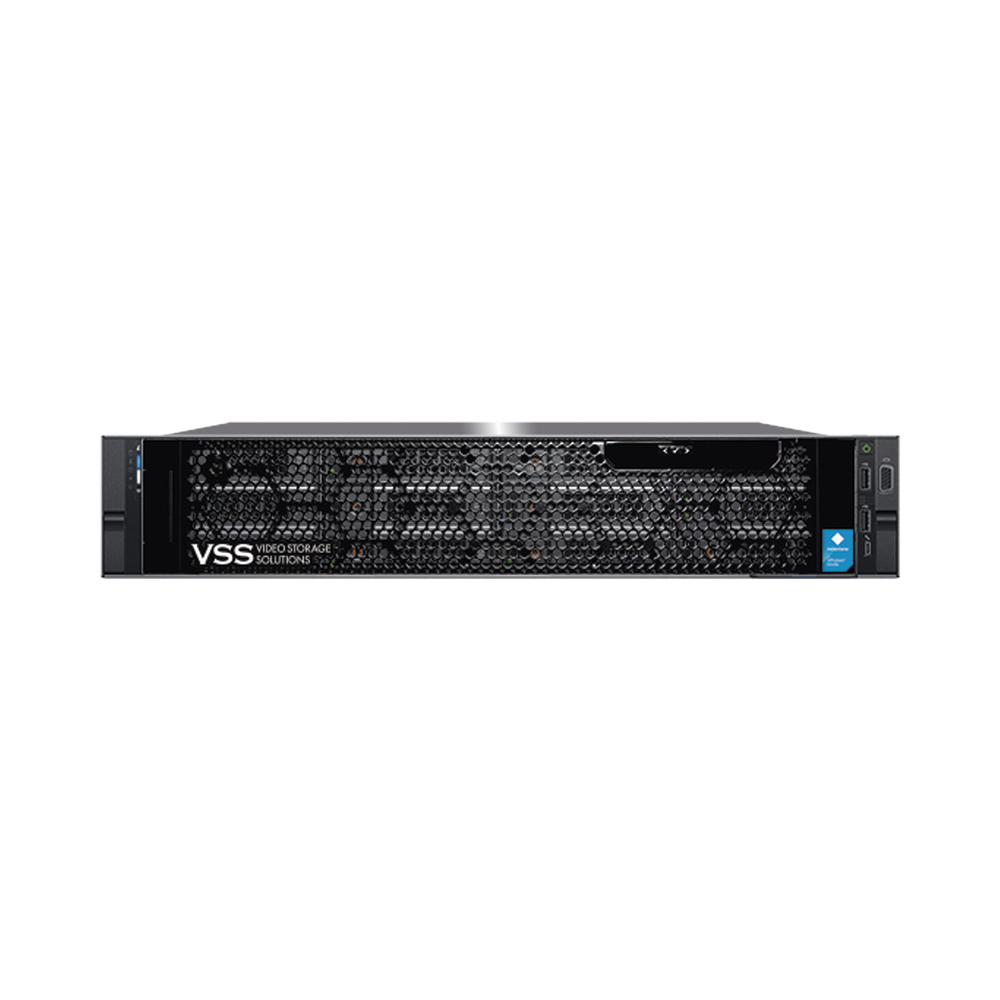

Storage Dense Milestone Appliance Equipped with Storage Accelerator

Benefit from scalable storage performance and video processing with the VSS-MS-182-M appliance. This 2U, 2-socket platform brings you scalability and performance to adapt to a variety of the most demanding and process-intensive Milestone XProtect® applications.

Storage Accelerator

The VSS-MS-182-M comes equipped with a state-of-the-art Storage Accelerator, which allows you to fully utilize its 252TB of raw storage capacity without the need for live video drives. With the Storage Accelerator enabled, read/ write speeds exceed that of four hundred and fifty 15K SAS drives combined, ensuring disk bandwidth is never an issue. In addition, the Storage Accelerator’s capacitor backup to non-volatile cache helps prevent data loss should a device lose power for added reliability.

System Reliability

System reliability and high availability are guaranteed with redundant 1100W power supplies and RAID 5/6 storage options.

Performance

Bandwidth: Up to 1400 Mbps

Storage accelerator features

IOPS: 135,000

Capacity: 1.6TB

Response time: 30μs

Endurance: 8.6 Petabytes written

System

Processor: Dual Intel Xeon Silver

RAM: 32GB (Up to 1.5TB)

HDD: 2 x 240GB M.2 SSD (RAID 1)

Operating system: Windows Server 2016

Network: 4 x RJ45 1GbE, 2 x RJ45 10GbE

Video Output: 1 x VGA

Mechanical

Form factor: 2U Rack

HDD Bays: 18 x 3.5" Hot Swap, 2 x M.2 SSD

Power Supply: 2 x 1100W (100-240Vca) 80Plus Platinum

Max. Consumption: 860W

Operating Temp: 50°F up to 95°F

Operating Humidity: 5 a 90 % (non-condensing)

Dimensions: 19" x 29.7" x 3.4"

Warranty

5 years (on-site, by provider)
