Kit de Amplificador de Señal Celular | Doble Banda | Mejora las Llamadas, Soporta 3G y *4G LTE | 70 dB de Ganancia Máxima, cubre áreas de hasta 500 metros cuadrados.(descontinuado)

Cell Signal Booster Kit to Improve 3G Data and Voice. Special for Home or Office.

1. Repeat and amplify the cellular signal to improve the Voice and 3G Data of your mobile device.
2. Reduce missed and drop calls.
3. It covers 3 or 5 rooms, up to 5300 square feet.
4. Increase the signal level and extend the battery charge.
5. Supports multiple devices simultaneously.
6. Very easy and simple to install.

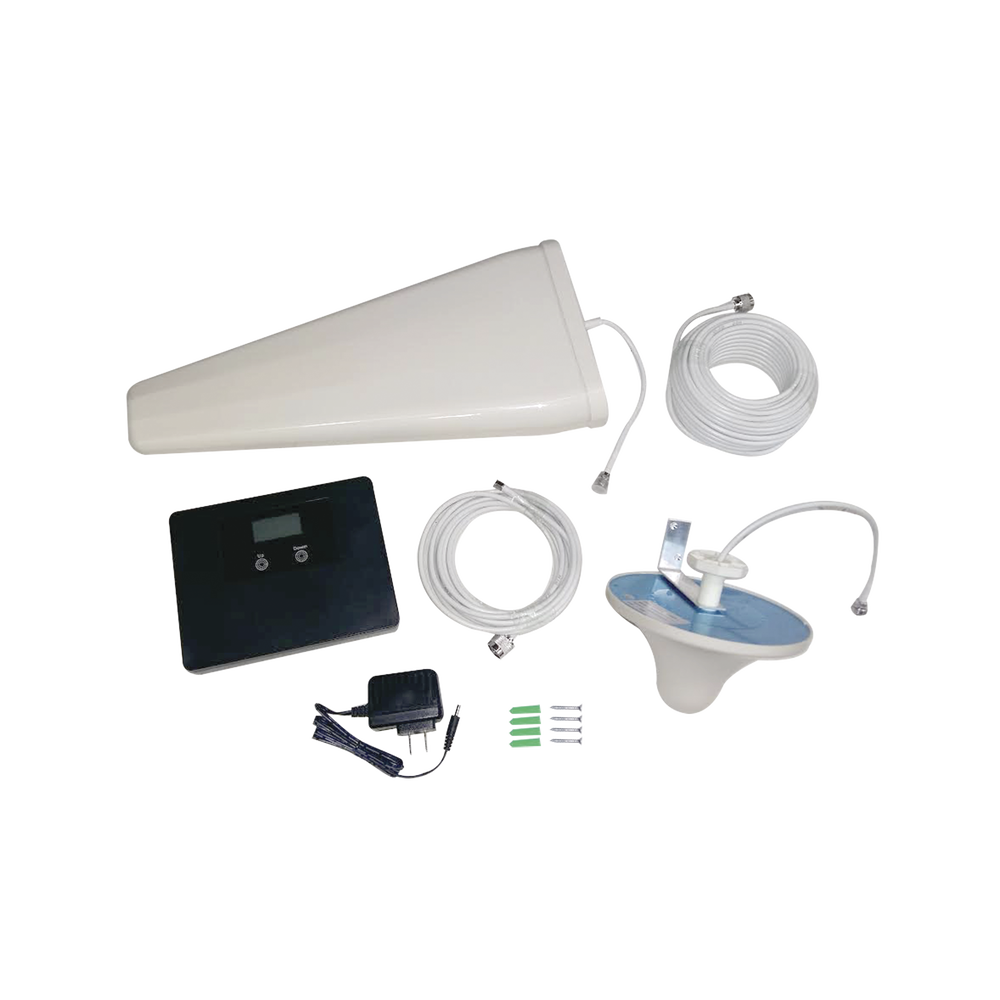

The kit includes practically what you need to improve or create a cell zone.

• A Double band repeater (850 MHz and 1900 MHz)
• An antenna log. For exterior.
• An type dome omnidirectional antenna. For interior.
• Two Coaxial cables, 65.62 ft. and 16.4 ft.
• Power supply for the repeater.

The repeater has a Display (LCD) with which you can observe the intensity of the input signal as well as the output, which will help you obtain the maximum performance of the system.

Main specifications:

• Double Band: 850 MHz ( Band 5) and 1900 MHz (Band2)
• Frequency range Down Link: 869-894 MHz and 1930-1990 MHz
• Frequency range Up Link: 824-849 MHz and 1850-1910 MHz
• Gain: 70 dB + - 3 dB
• Output power: 20 dBm
• Consumption: <3W
• Operating voltage: 5 Vdc, 2A.
• Impeance: 50 Ohm.
• Temperature range: -13 ° F ~ + 131 ° F
• Dimensions of the repeater: 7.09 x 5.51 x 1.38 in
• Weight: <1.1 lb
