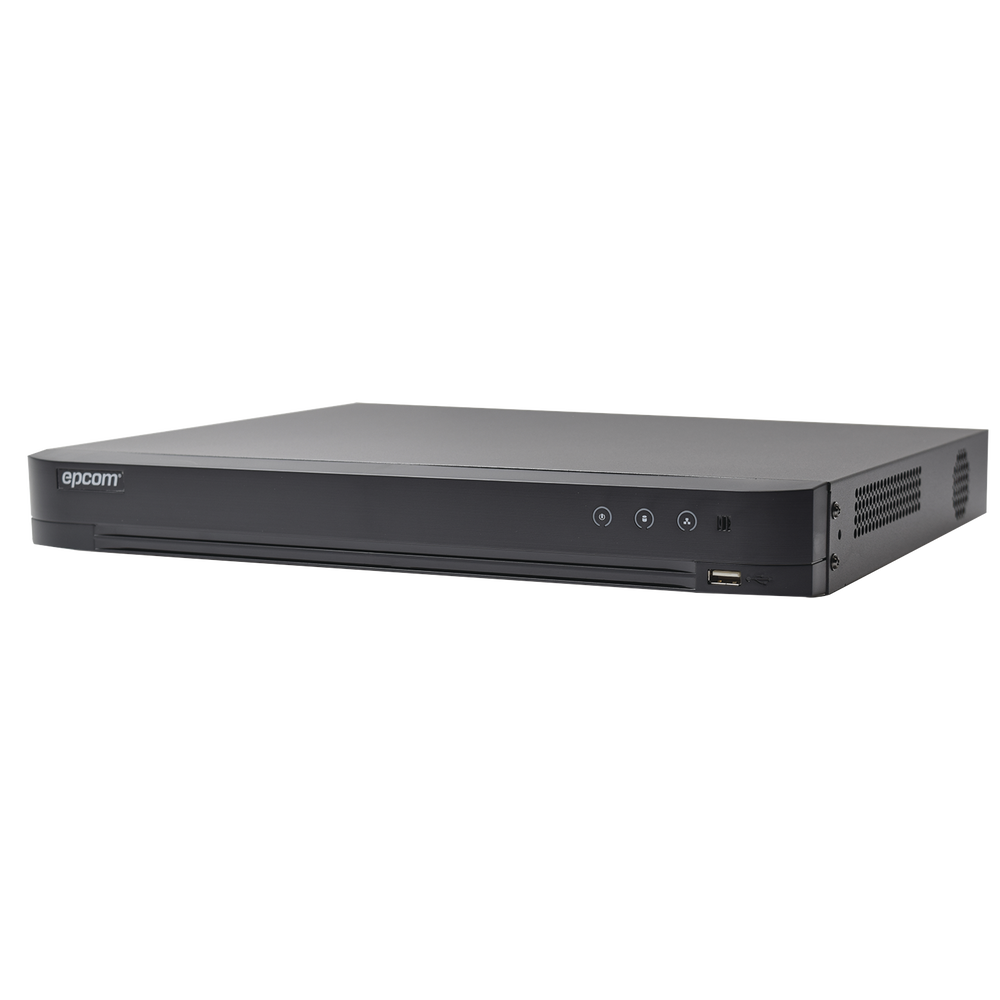

DVR 4 Megapixel / 32 Canales TURBOHD + 8 Canales IP / 2 Bahías de Disco Duro / 1 Canal de Audio

Video/Audio Output

• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: NTSC: 704 × 480

• HDMI/VGA Output: 1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz,

• Frame Rate:

• Main stream:

  • When 1080p Lite mode not enabled:

    • For 4 MP stream access: 4 MP [email protected]; 1080p lite/720p/WD1/4CIF/VGA/[email protected]

    • For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/[email protected]

    • For 1080p stream access: 1080p/[email protected]; VGA/WD1/4CIF/[email protected]

    • For 720p stream access: 720p/VGA/WD1/4CIF/[email protected]

  • When 1080p Lite mode enabled:

    • 4 MP lite/3 [email protected]; 1080p lite/720p lite/VGA/WD1/4CIF/[email protected]

• Sub-stream: WD1/[email protected]; [email protected]

• Video Bit Rate: 32 Kbps-6 Mbps.

• Stream Type: Video/Video&Audio.

• Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input).

• Audio Output: 1-ch RCA(Linear, 1kΩ).

• Audio Bit Rate: 64 kbps

• Dual Stream: Support.

• Synchronous Playback: 16-ch.

Network management

• Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF.

Hard Disk Driver

• Interface Type: 2 SATA Interfaces 10 TB (20 TB in total).

External Interface

• Network Interface: 1 RJ45 10M/100M/1000M adaptive Ethernet Interface.

• USB Interface: 1 USB 2.0 Interface & 1 USB 3.0 Interface.

• Serial Interface: 1; standard RS-485 serial interface, half-duplex.

General

• Power Supply: 12 VDC.

• Consumption: ≤ 65 W.

• Working Temperature: -10 ºC to +55 ºC (+14 ºF to +131 ºF).

• Working Humidity: 10% to 90%.

• Dimensions: 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch).

• Weight: ≤ 2 kg (4.4 lb).

• 4 Years Warranty.

• Compatible with GAB-VID2-R2 metal cabinet.
