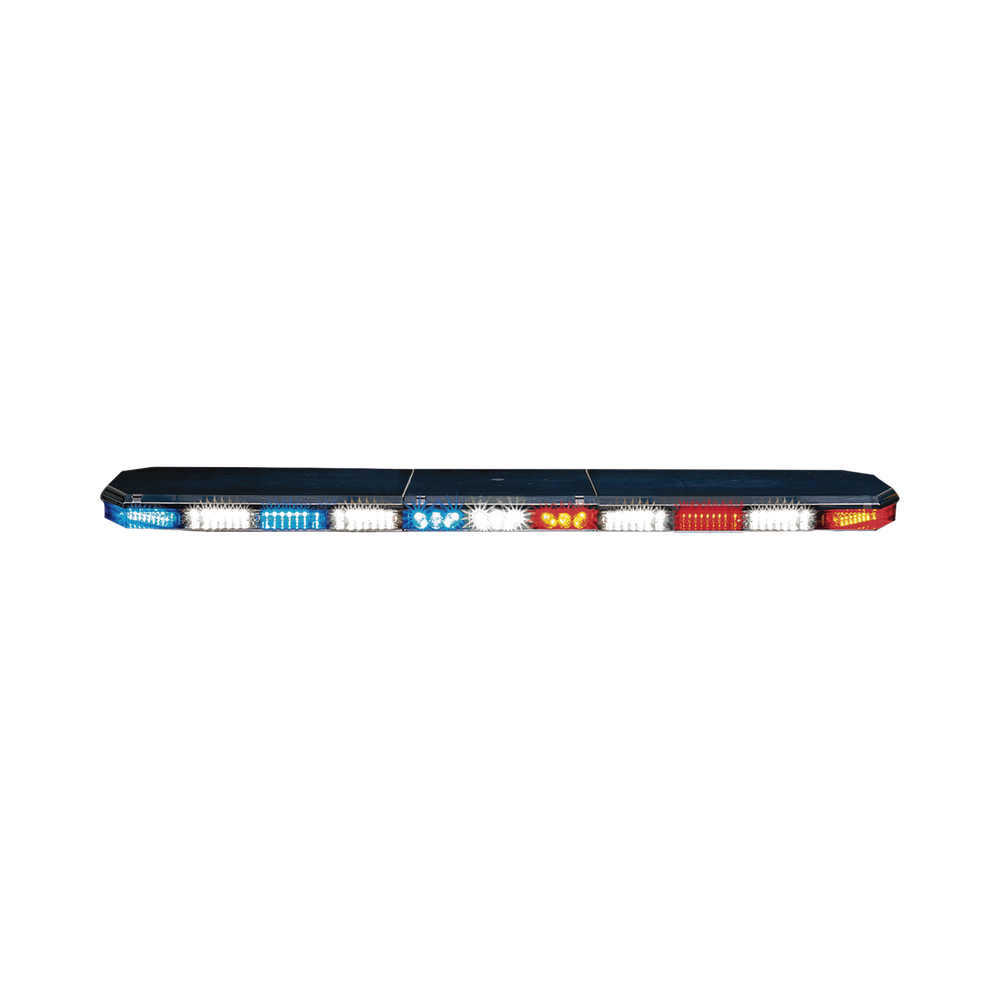

The 21TR™ Plus and 21IF are superior directional and deliver off-angle performance. This lightbar is economical, yet advanced, and offers standard features providing the brightest basic lightbar on the market. The 21TR™ Plus features deluxe central controller, 40+ flash patterns, NarrowStik™, flashing takedown and alleys, cruise lights, and a multi-color feature is available. The 21IF is an independent flashing LED lightbar that features flashing takedown and alleys, independently flashing light heads and user-selectable flash patterns. Each light head has a clear lens, LED takedowns and alleys, and a dimming mode.

SPECIFICATIONS

Voltage12 Vdc

Flash patterns : 40

Approval: SAE Class I, SAE J845, SAE J595,

CALIFORNIA TITLE 13, NFPA, R10, R65, CISPR 25.

Height   2.1"

Length: 47"

Depth 12.3"

15' cable with driver side exit

Adjustable mounting feet (excluding 22" lightbar which includes permanent mounting kit)

Warranty 5 years

Configuration

20 modules with a total of 120 LEDs:

   Setting:

20 modules with a total of 120 LEDs:

4 modules of 3 front LEDs 2 blue and 2 red

2 modules of 9 front LEDs 1 blue and 1 red

2 pre-penetration lights with 3 LEDs

4 modules of 9 corner LEDs 2 blue and 2 red

2 Modules of 3 LEDs of alleyways

2 modules of 3 rear LEDs, amber.

4 modules of 9 rear amber LEDs.
