Interface universal de conversión TCP/IP GPRS compatible con cualquier alarma con formato CONTAC ID no incluye GSM200 ni NET4PRO

The SAT-N communicator enables connecting PIMA’s CAPTAIN 6 Intruder Alarm System and non-PIMA systems to CMS software, via cellular or TCP/IP networks.
The SAT-N also provides a solution for alarm systems when no PSTN socket is available, allowing the connection of the phone line terminals to the SAT-N, which routes events via the GSM-200 or the net4pro.
The SAT-N has 3 channels: GSM + GSM/GPRS, via the GSM-200 cellular transmitter, and Ethernet (TCP/IP), via the net4pro card. These modules need to be added to the SAT-N individually.
The SAT-N is programmed via PIMA’s COMAX upload/download PC application.

Key Features
• Easy installation and in-field programming
• Continuous phone line testing (only when used as a backup channel)
• Support the GSM-200 and/or the net4pro modules
• Programmable dedicated dialing number for switching to radio signal
• Optional anti-substitution/replay syncing with the Central Monitoring Station
• 3 open ACKs
• Tamper switch report code
• Lightning and ESD protection

Assembly Options
The SAT-N has 2 assembly options:

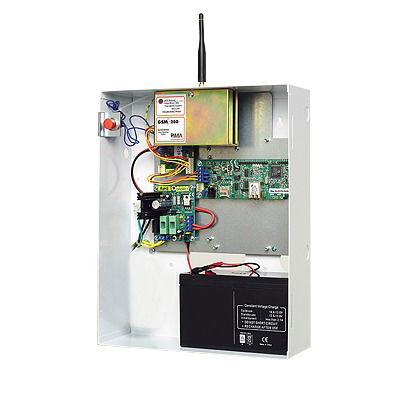

• As a stand-alone product, mounted in a metal box together with the P/S-2 power supply, a backup battery, and optional Tamper switch, net4pro and/or GSM-200.
• Mounted on a bracket with the P/S-2 power supply

*Ask for availabiltiy
